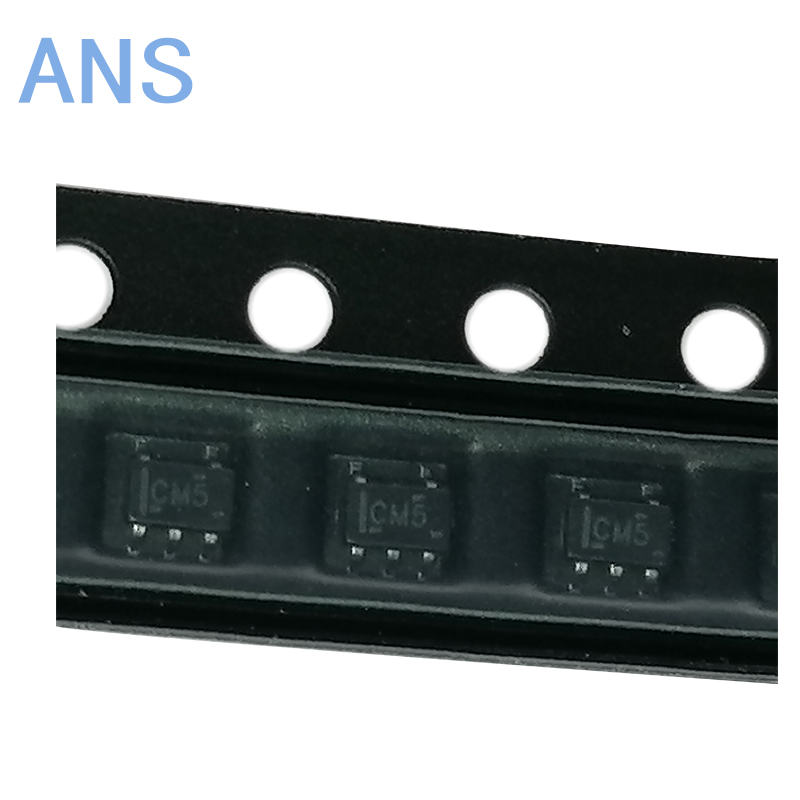

One stop supply of 74LVC1G125DCKRG4 Buffer, Non-Inverting 1 Element 1 Bit per Element 3-State Output SC-70-5_Integrated Circuit

Product Descriptions

This bus buffer gate is designed for 1.65-V to 5.5-V VCC operation.

The SN74LVC1G125 device is a single line driver with a 3-state output. The output is disabled when the output-enable (OE) input is high.

The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range.

The SN74LVC1G125 device is available in a variety of packages including the ultra-small DPW package with a body size of 0.8 mm × 0.8 mm.

• Available in the Ultra Small 0.64-mm2 Package (DPW) With 0.5-mm Pitch

• Supports 5-V VCC Operation

• Inputs Accept Voltages to 5.5 V

• Provides Down Translation to VCC

• Max tpd of 3.7 ns at 3.3 V

• Low Power Consumption, 10-μA Max ICC

• ±24-mA Output Drive at 3.3 V

• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model (A114-A)

– 200-V Machine Model (A115-A)

– 1000-V Charged-Device Model (C101)

Part#	74LVC1G125DCKRG4
Category	Integrated Circuits (ICs)
	Logic
	Buffers, Drivers, Receivers, Transceivers
Mfr	Texas Instruments
Series	74LVC
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel®
Product Status	Discontinued at Digi-Key
Logic Type	Buffer, Non-Inverting
Number of Elements	1
Number of Bits per Element	1
Input Type	-
Output Type	3-State
Current - Output High, Low	32mA, 32mA
Voltage - Supply	1.65V ~ 5.5V
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	5-TSSOP, SC-70-5, SOT-353
Supplier Device Package	SC-70-5
Base Product Number	74LVC1G125

74LVC1G125DCKRG4
