Product Details

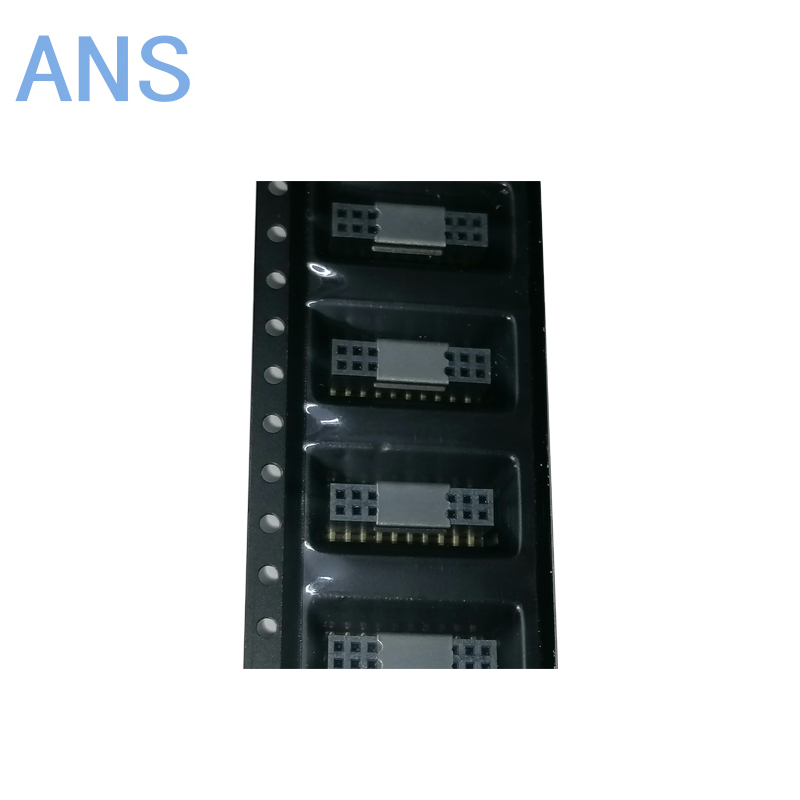

20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Specifications
| Attribute | Attribute value |
|---|---|
| ANSM-Part# | ANSM-M50-3101045 |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Receptacles, Female Sockets | |
| Mfr | Harwin Inc. |
| Series | Archer M50 |
| Package | Tube |
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | Black |
| Insulation Height | 0.181" (4.60mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | 5.5mm, 6.18mm |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 1A |
| Voltage Rating | 250V |
| Applications | General Purpose, Medical, Telecommunications |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Post | - |
| Base Product Number | M50-310 |
