Product Descriptions

Robust 0.5mm fine pitch mezzanine connector suitable for a wide range of high reliability applications and demanding environments.

Innovative hermaphroditic design provides a precise mating interface with extra housing guidance.

Reduced product mix simplifies customer connector qualification, documentation and maintenance.

Two versions offer a choice between supplemental PCB hold-downs and pegs for short overall length.

Product Features

• Hermaphroditic design “mates to itself”

• Consolidates connector selection and documentation

• Reduces component engineering costs

• Easy, reliable mating

• Guidance “scoops” permit easy mating when mis-aligned

• Polarization prevents mis-mating

• Dual-point, long wipe contacts

• High un-mating force insures connection security

• High Speeds, including PCIe®G2, supported by signal integrity reports and S-parameter models

• 0.5mm high density contact pitch in two rows

• 7 Stack heights: 4mm to 7mm (0.5mm increments)

• 6 Sizes: 20 to 90 positions (10 position increments)

Product Applications

• Portable and mobile electronic equipment

• Medical and instrumentation

• Point-Of-Sale/ retail equipment

• Hand-held terminals

• Automatic identification and data capture

• Sensors

• Military

• Communications and networking

• Data and mass-storage

• Motor vehicle

• Metering and energy

Product Specification

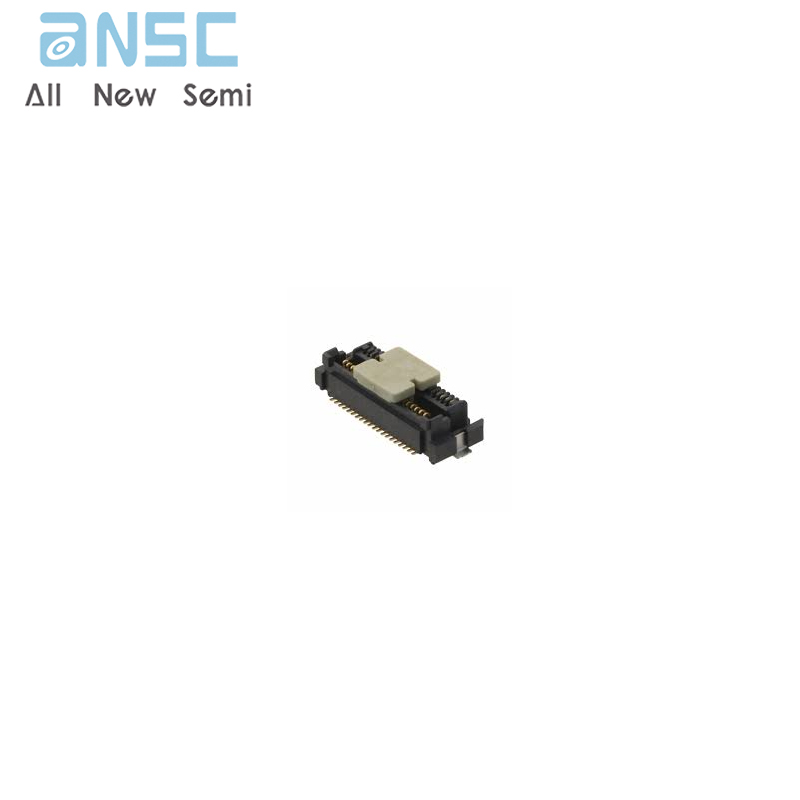

Product Photos

For more product information, please download the PDF
