Product Details

The MIC5209 is an efficient linear voltage regulator with very low dropout voltage, typically 10mV at light loads and less than 500mV at full load, with better than 1% output voltage accuracy.

Designed especially for hand-held, battery-powered devices, the MIC5209 features low ground current to help prolong battery life. An enable/shutdown pin on SOIC-8 and DDPAK versions can further improve battery life with near-zero shutdown current.

Key features include reversed-battery protection, current limiting, overtemperature shutdown, ultra-low-noise capability (SOIC-8 and DDPAK versions), and availability in thermally efficient packaging. The MIC5209 is available in adjustable or fixed output voltages.

Product Features

• Output voltage range: 1.8V to 15V

• Meets Intel® Slot 1 and Slot 2 requirements

• Guaranteed 500mA output over the full operating temperature range

• Low 500mV maximum dropout voltage at full load

• Extremely tight load and line regulation

• Thermally efficient surface-mount package

• Low temperature coefficient

• Current and thermal limiting

• Reversed battery protection

• No-load stability

• 1% output accuracy

• Ultra-low noise capability in SOIC-8 and DDPAK

• Ultra-small 3mm x 3mm DFN package

Specifications

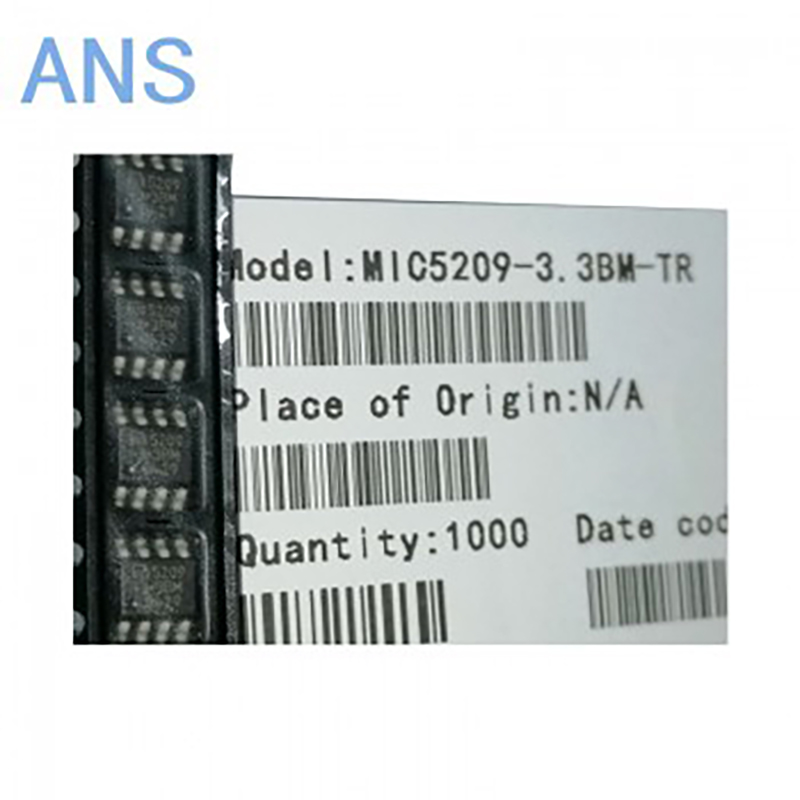

Actual product photos

Product Data Book：

For more product information, please download PDF
