Product Details

16-bit Microcontroller featuring eXtreme Low Power consumption. Designed for power constrained and battery powered applications. Features unique peripherals like DSBOR, DSWDT and RTCC which run in Deep Sleep mode for industry leading low power performance.

Products Features

Operating voltage:

• PIC24FV products support 2.0V-5.5V operation

• PIC24F products support 1.8V-3.6V operation

• Typical nanoWatt XLP specifications include:

• nanoWatt XLP Technology ideal for battery applications

• 20nA Deep Sleep mode

• 25nA Sleep mode with RAM retention

• 500nA Real Time Clock & Calendar operation in Sleep modes

• 400nA Watch Dog Timer operation in Sleep modes

• 512 Bytes of Data EEPROM

  Other Low Power Specifications include:

• 1uS wake-up from Sleep

• 50nA I/O port leakage

• 200uA at 1MHz Run mode

• Power Modes: Run, Doze, Idle, Sleep, Deep Sleep

• System Supervisors: Low Power BOR, WDT, INT0 and RTCC

• Internal oscillator support - 31 kHz to 8 MHz, up to 32 MHz with 4X PLL

• Fail-Safe Clock Monitor – allows safe shutdown if clock fails

  CPU:

• Up to 16 MIPS performance

• Single Cycle Instruction Execution

• 16 x 16 Hardware Multiply, & 32-bit x 16-bit Hardware Divider

• C Compiler Optimized Instruction Set System

  Peripherals:

• 12-bit Differential ADC, 16 channels, 100k samples per second, 16-deep result buffer

• Charge Time Measurement Unit (CTMU) enabling 16 channels of Capacitive Touch

• Two Analog rail-to-rail comparators Peripherals

• 2 UART Modules with LIN and IrDA support, 4 Deep FIFO

• 2 SPI Modules with 8 Deep FIFO

• 2 I2C™ Modules with Master and Slave Modes

• Hardware RTCC, Real-Time Clock Calendar with Alarms

Specifications

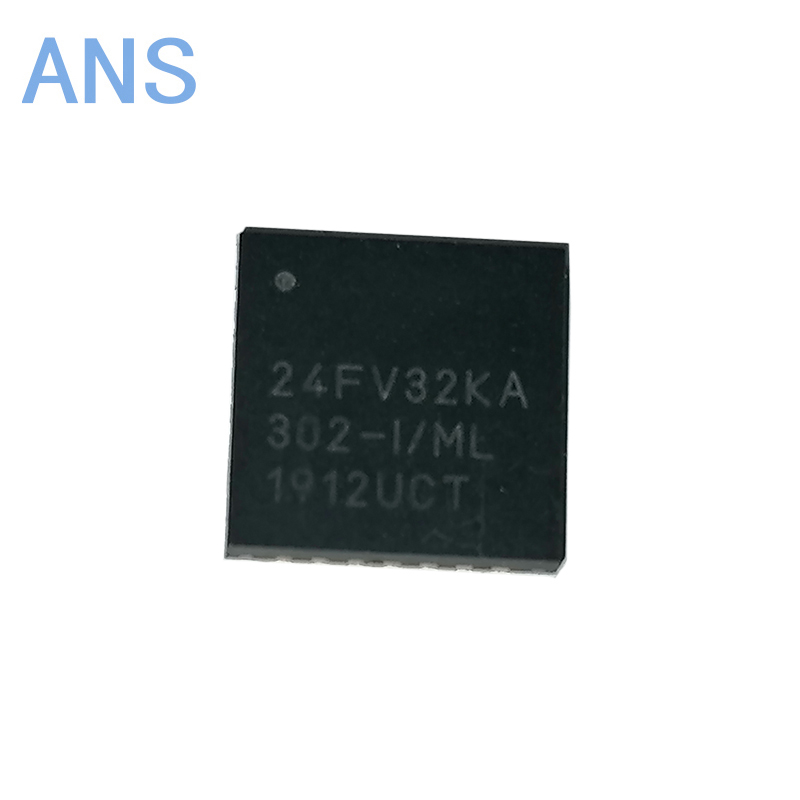

Actual product photos

Product Data Book：

For more product information, please download the PDF
