Product Details

The Cypress CY14V116N is a fast SRAM, with a nonvolatileelement in each memory cell. The memory is organized as1024K words of 16 bits each. The embedded nonvolatileelements incorporate QuantumTrap technology, producing theworld's most reliable nonvolatile memory. The SRAM can beread and written an infinite number of times. The nonvolatile dataresiding in the nonvolatile elements do not change when data iswritten to the SRAM. Data transfers from the SRAM to thenonvolatile elements (the STORE operation) takes placeautomatically at power-down. On power-up, data is restored tothe SRAM (the RECALL operation) from the nonvolatile memory.Both the STORE and RECALL operations are also availableunder software control.

Products Features

    •30-ns and 45-ns access times

    •Logically organized as 1024K x 16

    •Hands-off automatic STORE on power-down with only asmall capacitor

    •STORE to QuantumTrap nonvolatile elements is initiated bysoftware, device pin, or AutoStore on power-down

    •RECALL to SRAM initiated by software or power-up

High reliability

    •Infinite read, write, and RECALL cycles

    •1 million STORE cycles to QuantumTrap

    •Data retention: 20 years

Sleep mode operation

Low power consumption

    •Active current of 75 mA at 45 ns

    •Standby mode current of 650 uA

    •Sleep mode current of 10 uA

Operating voltage

    •Core Vcc = 2.7 V to 3.6 V; I/O VccQ = 1.65 V to 1.95 V

    •Industrial temperature: -40℃ to +85℃

    •165-ball fine-pitch ball grid array (FBGA) package

    •Restriction of hazardous substances (RoHS) compliant

Specifications

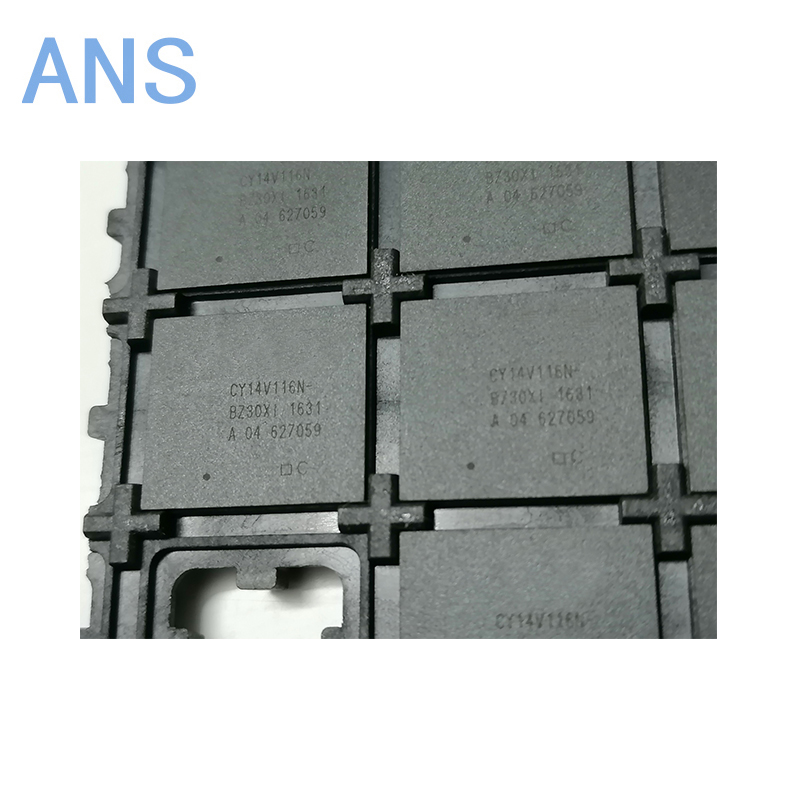

Actual product photos

Product Data Book：

For more product information, please download the PDF
