Hot selling One stop supply of electronic components REG101NA-5 DMOS 100mA Low-Dropout Regulator Positive Fixed 1 Output SOT23-5

REG101NA-5

Model:REG101NA-5

Manufacturer:TI

Package:SOT-23-5

Detail

Product Descriptions


The REG101 is a family of low-noise, low-dropout linear regulators with low ground pin current. Its new DMOS topology provides significant improvement over previous designs, including low dropout voltage (only 60mV typ at full load), and better transient performance. In addition, no output capacitor is required for stability, unlike conventional low-dropout regulators that are difficult to compensate and require expensive low ESR capacitors greater than 1µF.


Typical ground pin current is only 500µA (at IOUT = 100mA) and drops to 10nA when not in enabled mode. Unlike regulators with PNP pass devices, quiescent current remains relatively constant over load variation and under dropout conditions.


The REG101 has very low output noise (typically 23µVrms for VOUT = 3.3V with CNR = 0.01µF), making it ideal for use in portable communications equipment. Accuracy is maintained over temperature, line, and load variations. Key parameters are tested over the specified temperature range (–40°C to +85°C).


The REG101 is well protected—internal circuitry provides a current limit that protects the load from damage. Thermal protection circuitry keeps the chip from being damaged by excessive temperature. The REG101 is available in the SOT23-5 and the SO-8 packages.


Product Features


● NEW DMOS TOPOLOGY:

   Ultra Low Dropout Voltage:

    60mV typ at 100mA

    Output capacitor NOT required for stability

● FAST TRANSIENT RESPONSE

● VERY LOW NOISE: 23µVrms

● HIGH ACCURACY: ±1.5% max

● HIGH EFFICIENCY:

    IGND = 500µA at IOUT = 100mA

    Not Enabled: IGND = 10nA

● 2.5V, 2.8V, 2.85V, 3.0V, 3.3V, 5.0V, AND ADJUSTABLE OUTPUT

   VERSIONS

● OTHER OUTPUT VOLTAGES AVAILABLE UPON REQUEST

● FOLDBACK CURRENT LIMIT

● THERMAL PROTECTION

● SMALL SURFACE-MOUNT PACKAGES: SOT23-5 and SO-8


Product Applications


● PORTABLE COMMUNICATION DEVICES

● BATTERY-POWERED EQUIPMENT

● PERSONAL DIGITAL ASSISTANTS

● MODEMS

● BAR-CODE SCANNERS

● BACKUP POWER SUPPLIES


Specifications


Attribute

Attribute value

ANSM-Part#

ANSM-REG101NA-5

Category

Integrated Circuits (ICs)

Power Management (PMIC)

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

Mfr

Texas Instruments

Series

-

Package

Tape & Reel (TR)

Product Status

Last Time Buy

Output Configuration

Positive

Output Type

Fixed

Number of Regulators

1

Voltage - Input (Max)

10V

Voltage - Output (Min/Fixed)

5V

Voltage - Output (Max)

-

Voltage Dropout (Max)

0.13V @ 100mA

Current - Output

100mA

Current - Quiescent (Iq)

500µA

Current - Supply (Max)

650µA

PSRR

65dB (120Hz)

Control Features

Enable

Protection Features

Over Current, Over Temperature

Operating Temperature

-40°C ~ 85°C

Mounting Type

Surface Mount

Package / Case

SC-74A, SOT-753

Supplier Device Package

SOT-23-5

Base Product Number

REG101

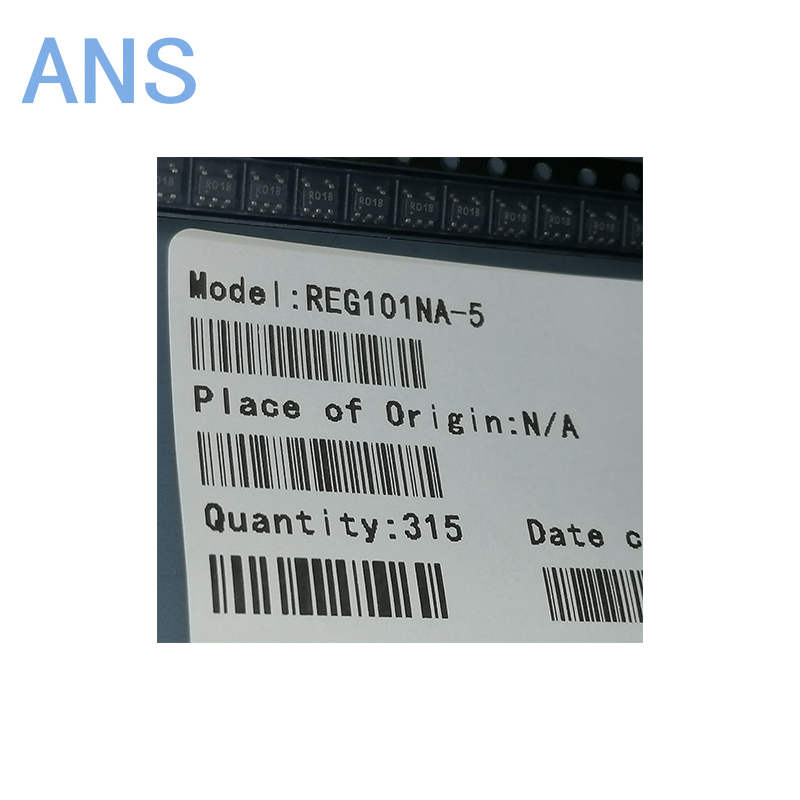

Actual product photos

REG101NA-5


Product Data Book:



For more product information, please download the PDF
