Product Descriptions

The MAX1615/MAX1616 are micropower, SOT23-5 linear regulators that supply always-on, keep-alive power to CMOS RAM and microcontrollers (µCs) in systems with high-voltage batteries. Key features include wide input voltage range, low dropout voltage, and low quiescent supply current.

Despite a miserly 8µA (max) no-load supply current, the MAX1615/MAX1616 have excellent line-transient response and AC power-supply rejection ratio. They provide a clean, fixed 5V or 3.3V output (MAX1615) or an adjustable 1.24V to 28V output (MAX1616), even when subjected to fast supply-voltage changes that occur during the switchover from battery to AC adapter input power. The space-saving SOT23-5 package has excellent thermal characteristics and tolerates up to 571mW of power dissipation. Fault protection is provided by internal foldback current limiting and thermalshutdown circuitry. The MAX1615/MAX1616 are now available in lead-free packages.

Product Features

♦ 4V to 28V Input Range

♦ 8µA (max) Quiescent Supply Current

♦ <1µA Shutdown Supply Current

♦ 3.3V or 5V, Pin-Selectable Output (MAX1615)

      Adjustable 1.24V to 28V Output (MAX1616)

♦ 30mA Output Current

♦ ±2% Initial Output Accuracy

♦ Thermal-Overload Protection

♦ 5-Pin SOT23 Package

♦ Low Cost

Product Applications

• CMOS/RTC Backup Power

• Microcontroller Power

• Notebook Computers

• Smart-Battery Packs

• PDAs and Handy-Terminals

• Battery-Powered Systems

Specifications

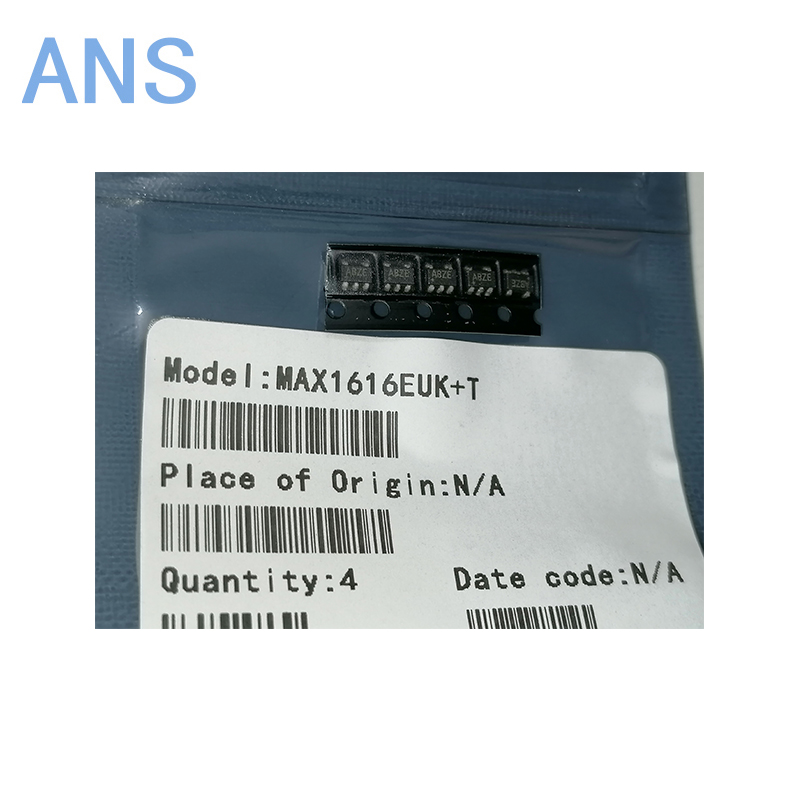

Actual product photos

Product Data Book：

For more product information, please download the PDF
