Product Details
General Description
The LMC7101 is a high-performance, low-power, operational amplifier which is pin-for-pin compatible with the National Semiconductor LMC7101. It features rail-to-rail input and output performance in Micrel’s IttyBitty™ SOT-23-5 package.
Features
• Small footprint SOT-23-5 package
• Guaranteed 2.7V, 3V, 5V, and 12V performance
• 500kHz gain-bandwidth
• 0.01% total harmonic distortion at 10kHz (5V, 2kΩ)
• 0.5mA typical supply current at 5V
Applications
• Mobile communications, cellular phones, pagers
• Battery-powered instrumentation
• PCMCIA, USB
• Portable computers and PDAs
Product Description
ANSC PART# | ANSC- LMC7211AIM5 |
Part# | LMC7211AIM5 |
Type： | Integrated Circuits |
Manufactor | Texas Instruments |
DC | new |

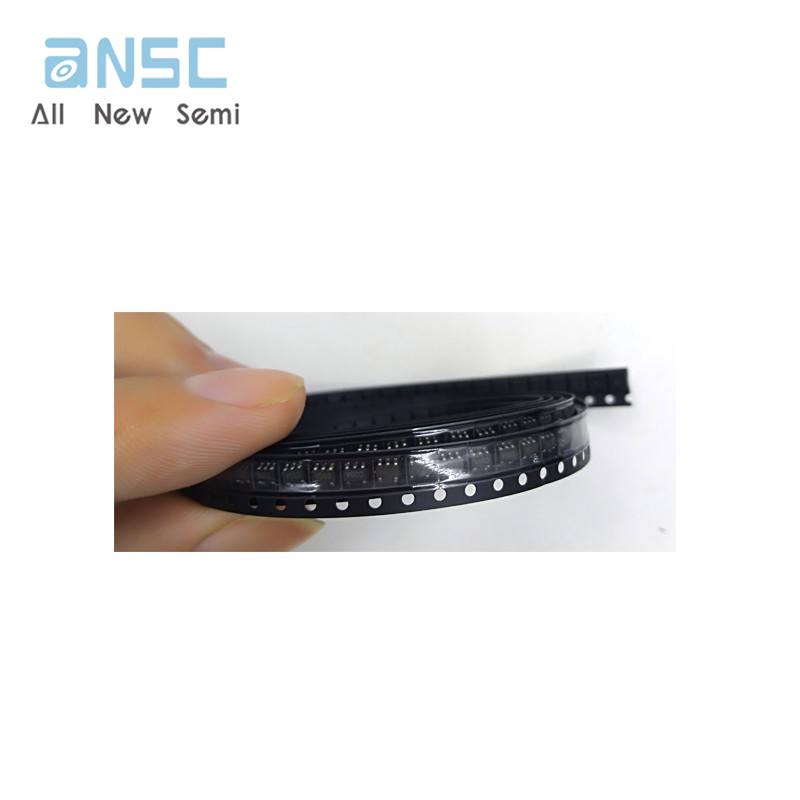

Actual image of the product
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel庐 | |
| Part Status | Obsolete |
| Type | General Purpose |
| Number of Elements | 1 |
| Output Type | Push-Pull |
| Voltage - Supply, Single/Dual (卤) | 2.7V ~ 15V, 卤1.35V ~ 7.5V |
| Voltage - Input Offset (Max) | 5mV @ 5V |
| Current - Input Bias (Max) | 0.04pA @ 5V |
| Current - Output (Typ) | 30mA |
| Current - Quiescent (Max) | 14碌A |
| CMRR, PSRR (Typ) | 75dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 10碌s |
| Hysteresis | - |
| Operating Temperature | -40掳C ~ 85掳C |
| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LMC7211 |

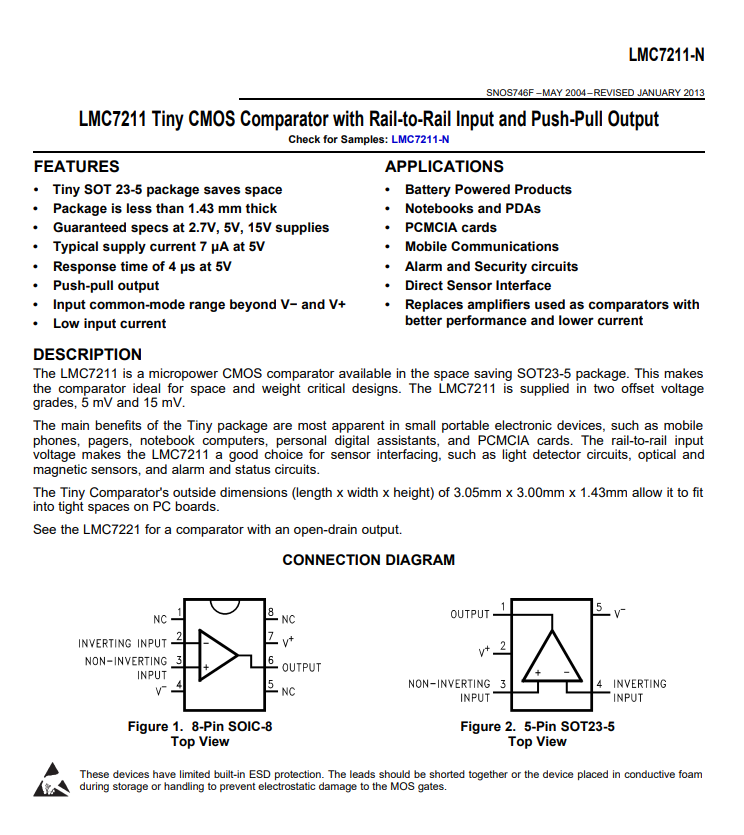

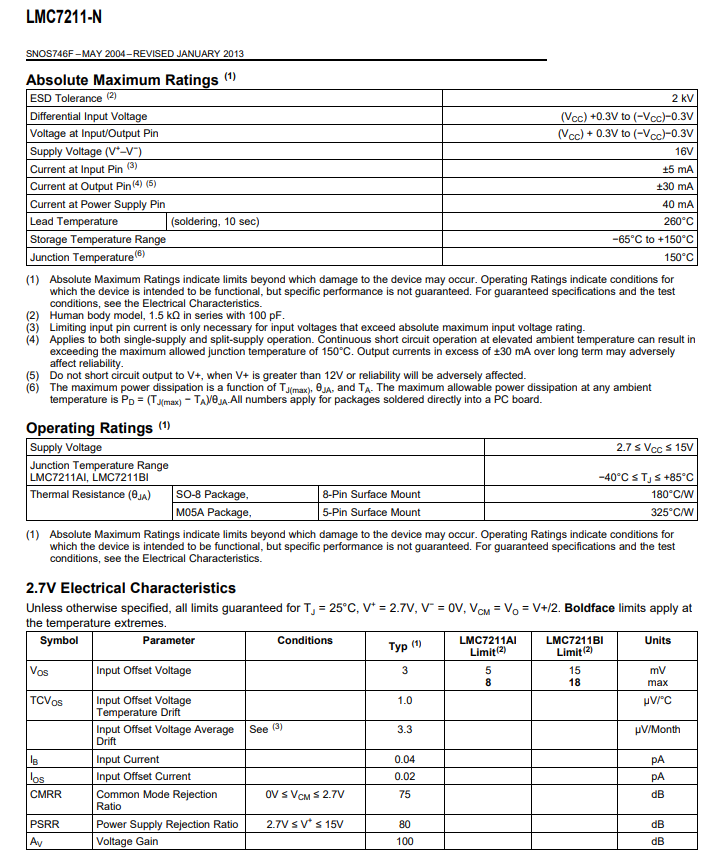

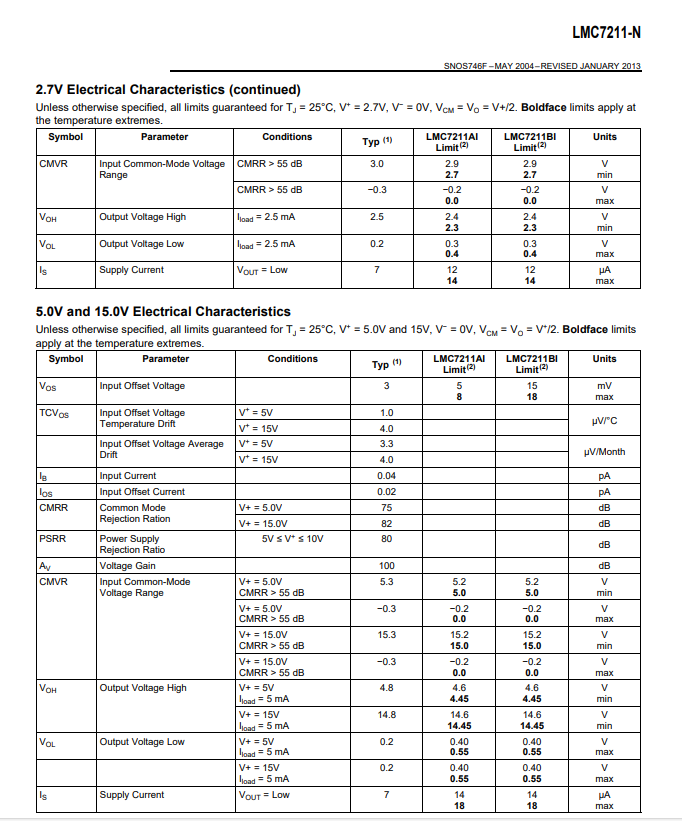

Product datasheet
