Product Descriptions

The LM199/LM399 precision shunt reference features excellent temperature stability over a wide range of voltage, temperature and operating current conditions. A stabilizing heater is incorporated with the active Zener on a monolithic substrate which nearly eliminates changes in voltage with temperature. The subsurface Zener operates over a current range of 0.5mA to 10mA, and offers minimal noise and excellent long-term stability.

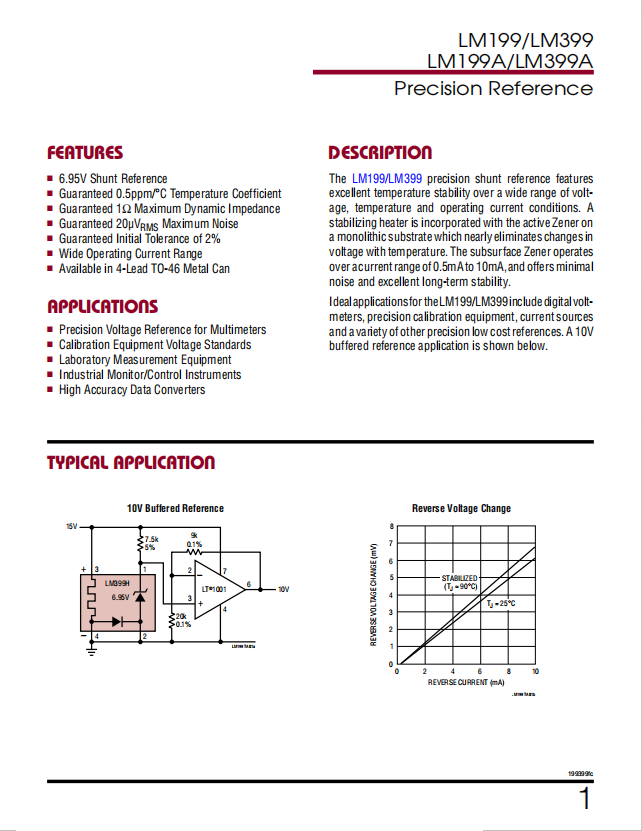

Idealapplications for the LM199/LM399 includedigitalvoltmeters, precision calibration equipment, current sources and a variety of other precision low cost references. A 10V buffered reference application is shown below.

Product Features

• 6.95V Shunt Reference

• Guaranteed 0.5ppm/°C Temperature Coefficient

• Guaranteed 1Ω Maximum Dynamic Impedance

• Guaranteed 20µVRMS Maximum Noise

• Guaranteed Initial Tolerance of 2 percent

• Wide Operating Current Range

• Available in 4-Lead TO-46 Metal Can

Product Applications

• Precision Voltage Reference for Multimeters

• Calibration Equipment Voltage Standards

• Laboratory Measurement Equipment

• Industrial Monitor/Control Instruments

• High Accuracy Data Converters

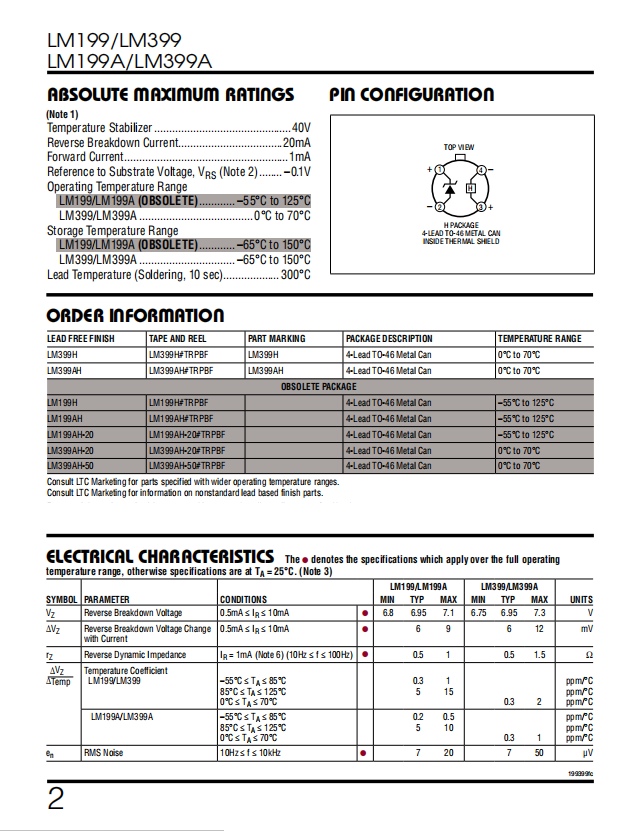

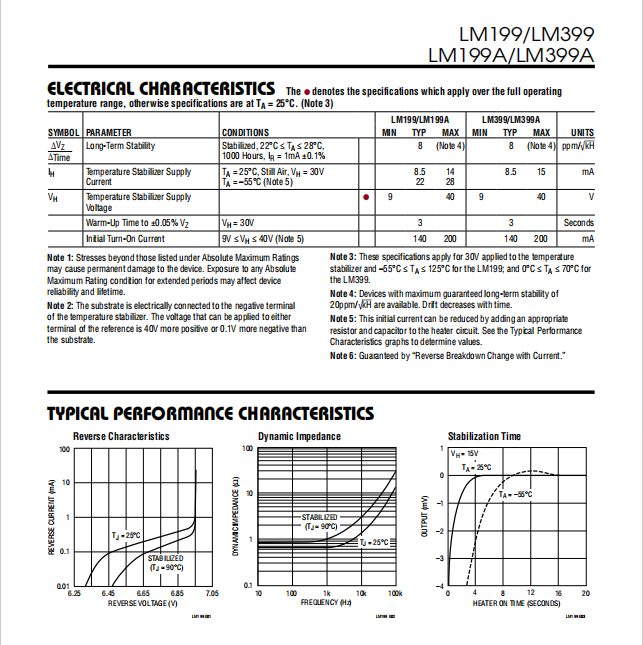

Specifications

Actual product photos

Product Data Book：

For more product information, please download the PDF
