Product Description
The MK64FX512VLL12 is a high-performance, 32-bit ARM Cortex-M4 microcontroller based on the Kinetis K60 series. This microcontroller is designed to provide a robust and efficient computing platform for various applications. With a clock frequency of 50MHz, it offers a reliable and fast processing speed.
Product Features
Connectivity: The MK64FX512VLL12 features a wide range of connectivity options, including CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, and USB OTG.
Core Processor: The microcontroller is equipped with an ARM Cortex-M4 core processor, which provides high performance and low power consumption.
Data Converters: The device includes A/D converters with 32x16-bit resolution and D/A converters with 1x12-bit resolution.
Memory: The MK64FX512VLL12 has a program memory size of 512KB and a RAM size of 192KB.
Peripherals: The microcontroller includes various peripherals such as DMA, I2S, LVD, POR, PWM, and WDT.
Product Applications
Primary Applications: The MK64FX512VLL12 is suitable for applications that require high processing speed, low power consumption, and a wide range of connectivity options, such as industrial automation, medical devices, and automotive systems.
Secondary Applications: The microcontroller can also be used in applications such as consumer electronics, home appliances, and IoT devices.
Alternative Parts:
MK64FX512VLL10: This part is similar to the MK64FX512VLL12 but has a different package and pinout.
MK64FX512VLL15: This part has a higher clock frequency and is suitable for applications that require even higher processing speeds.
Embedded Modules:
Kinetis K60 Development Board: This board is designed to evaluate the MK64FX512VLL12 microcontroller and provides a platform for developing and testing applications.
Kinetis K60 Software Development Kit (SDK): This SDK provides a set of tools and libraries for developing applications on the MK64FX512VLL12 microcontroller.
Product Description
| Type | Description |
| ANSC PART# | ANSC - MK64FX512VLL12 |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Original |
| Series | Kinetis K60 |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 66 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 32x16b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature |
-40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-LQFP (14x14) |
| Package / Case | 100-LQFP |
| Base Product Number | MK64FX512 |

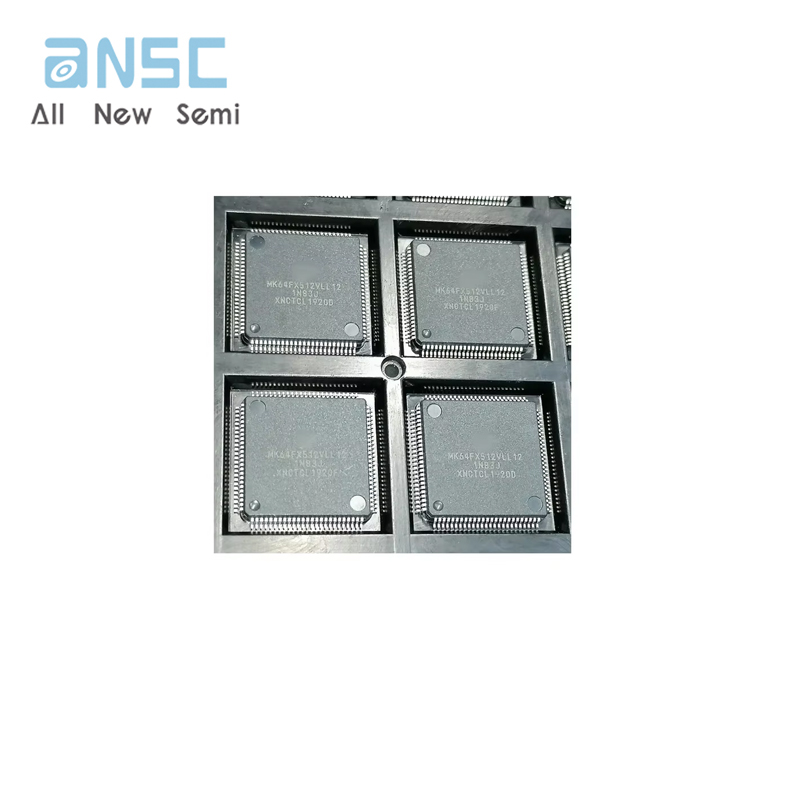

Actual image of the product

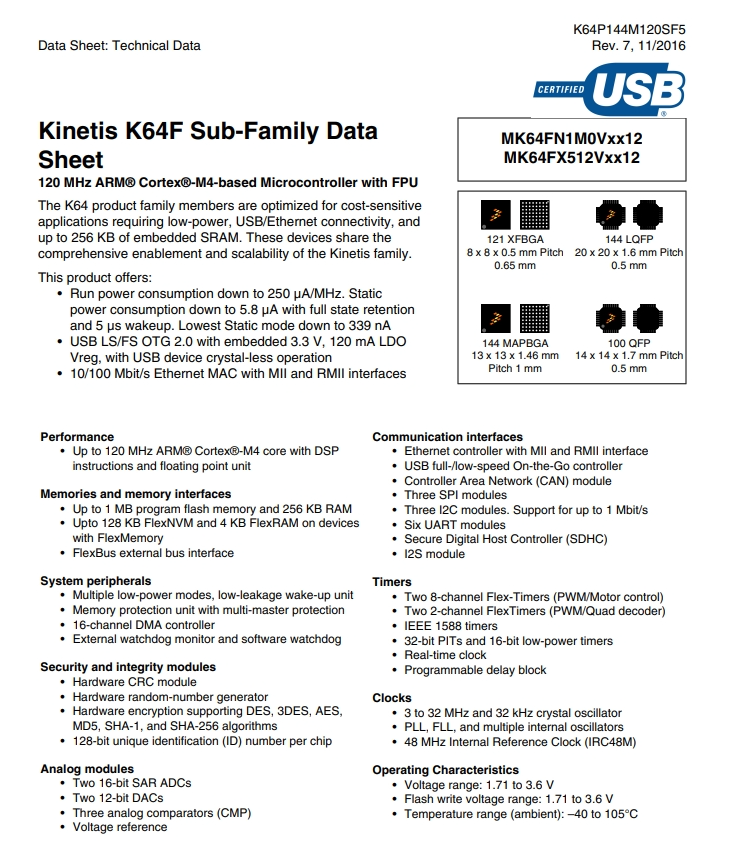

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
