Product Description
The ISO124P is a high-precision isolation amplifier with a unique duty cycle modulation/demodulation approach. The signal is digitally transferred through a 2-pF differential capacitive barrier. The signal integrity is not affected by the barrier properties with digital modulation, resulting in great dependability and outstanding high-frequency transient immunity across the barrier. Both barrier capacitors are embedded in the package's plastic body.
The ISO124P is simple to operate. The operation does not necessitate the use of any external components. Maximum nonlinearity of 0.010 percent, signal bandwidth of 50 kHz, and VOS drift of 200-μV/°C are the essential parameters. The ISO124P device is suitable for a wide range of applications, with a power supply range of ±4.5 V to ±18 V and quiescent currents of ±5 mA on VS1 and ±5.5 mA on VS2.
In 16-pin PDIP and 28-lead SOIC plastic surface-mount packages, the ISO124P is offered.
Product Features
Bipolar Operation: VO = ±10 V
Packages: PDIP-16 and SOIC-28
Ease of Use: Fixed Unity Gain Configuration
Supply Range: ±4.5-V to ±18-V
100% Tested for High-Voltage Breakdown
Rated 1500 Vrms
High IMR: 140 dB at 60 Hz
Maximum Nonlinearity: 0.010%
Product Applications
Motor and SCR Control
Power Monitoring
PC-Based Data Acquisition
Test Equipment
Industrial Process Control:
– Transducer Isolator, Isolator for Thermocouples, RTDs, Pressure Bridges,
and Flow Meters, 4-mA to 20-mA Loop Isolation
Ground Loop Elimination
Product Attributes
|
TYPE |
DESCRIPTION |
|---|---|
|
ANSC PART# |
ANSC - ISO124P |
|
Category |
Integrated Circuits (ICs) Linear Amplifiers Instrumentation, OP Amps, Buffer Amps |
|
Mfr |
Original |
|
Series |
- |
|
Package |
Tube |
|
Product Status |
Active |
|
Amplifier Type |
Isolation |
|
Number of Circuits |
1 |
|
Output Type |
- |
|
Slew Rate |
2V/µs |
|
-3db Bandwidth |
50 kHz |
|
Voltage - Input Offset |
20 mV |
|
Current - Supply |
5mA |
|
Current - Output / Channel |
15 mA |
|
Voltage - Supply Span (Min) |
9 V |
|
Voltage - Supply Span (Max) |
36 V |
|
Operating Temperature |
-25°C ~ 85°C |
|
Mounting Type |
Through Hole |
|
Package / Case |
16-DIP (0.300", 7.62mm), 8 Leads |
|
Supplier Device Package |
8-PDIP |
|
Base Product Number |
ISO124 |

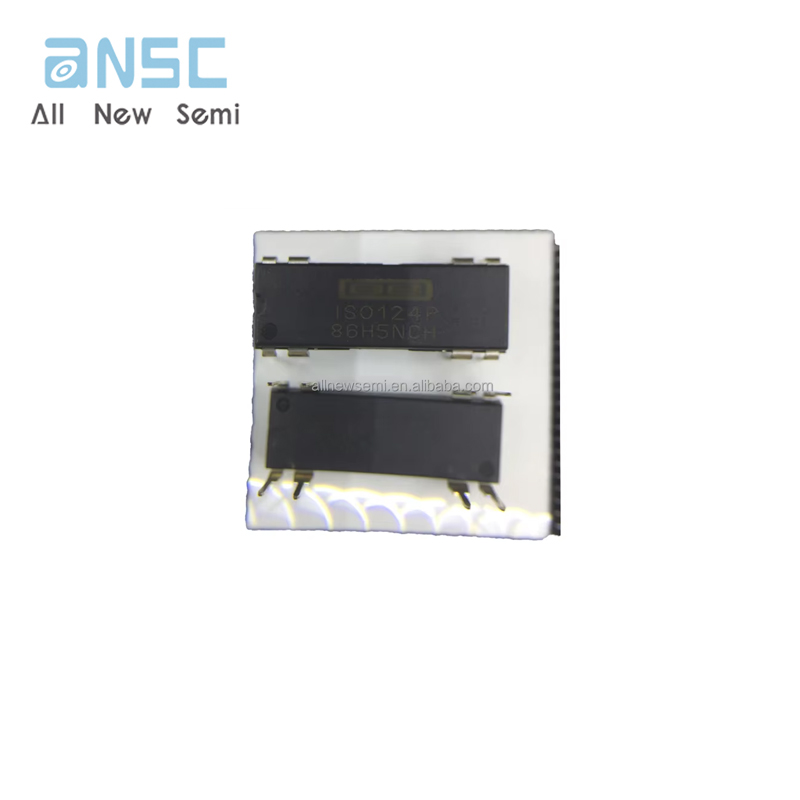

Actual image of the product

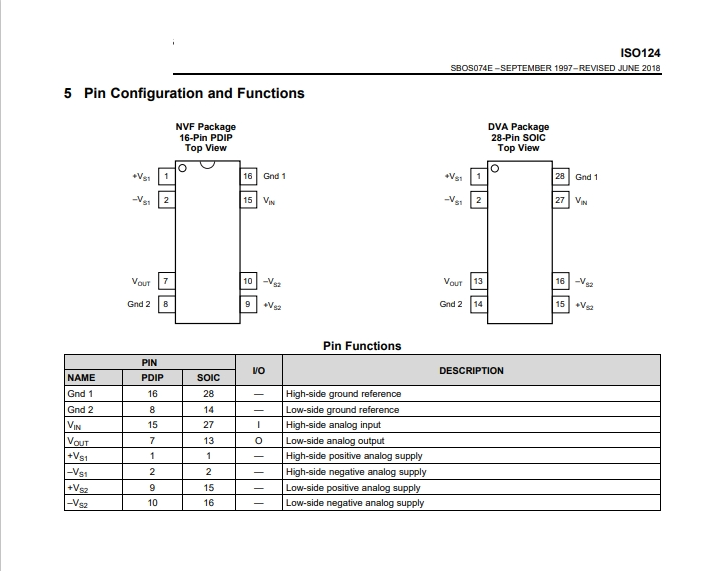

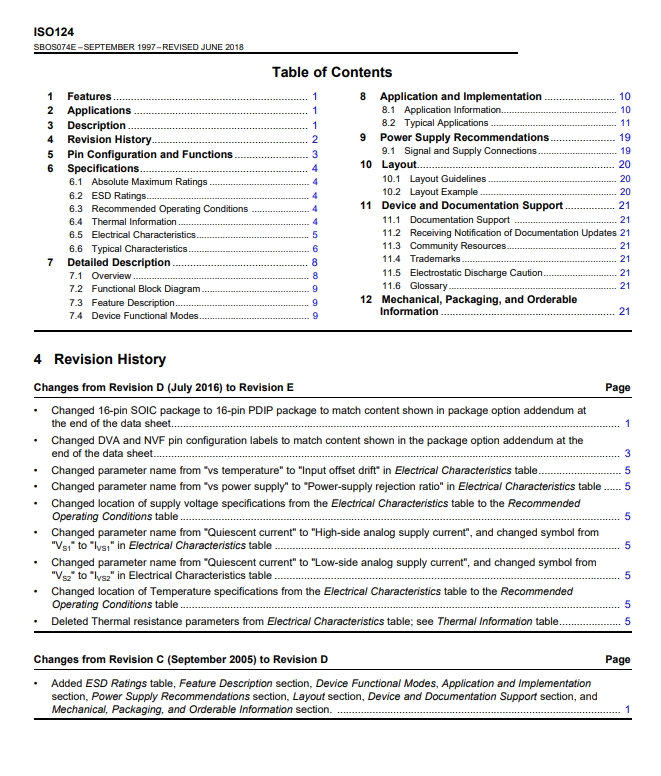

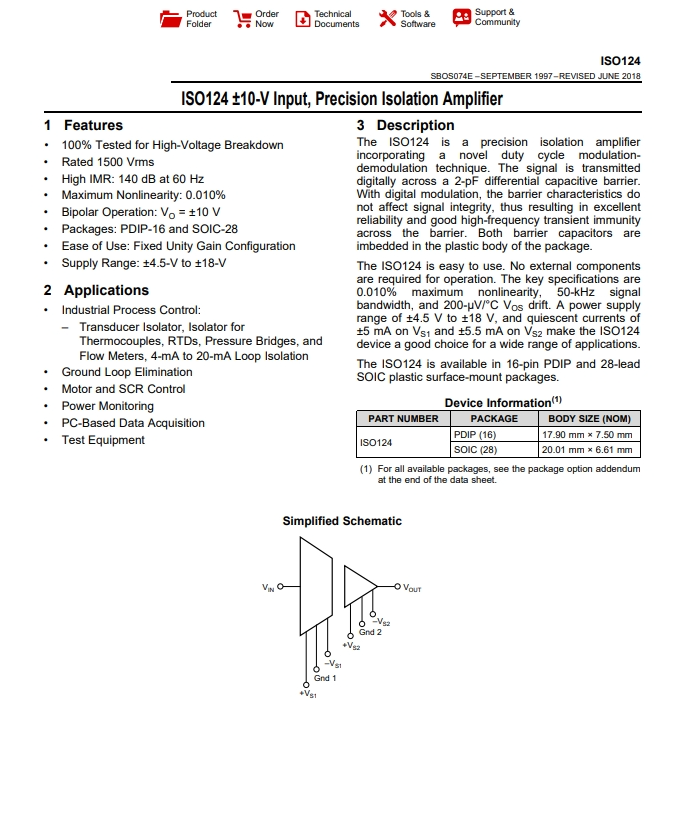

Product datasheet
