Product Description
FEATURES
Senses Output Voltage Directly from Primary Side
Winding—No Optoisolator Required
Synchronous Driver for High Efficiency
Input Voltage Limited Only by External
Power Components
Accurate Output Regulation Without User Trims
Switching Frequency from 50kHz to 250kHz
Synchronizable
Load Compensation
Programmable Undervoltage Lockout
Available in a Thermally Enhanced 16-Lead
TSSOP Package
APPLICATIONS
Isolated Medium Power (10W to 60W) Supplies
Isolated Telecom, Medical Converters
Instrumentation Power Supplies
Isolated Power over Ethernet Supplies
ANSC PART# | ANSC- LT3825EFE |
Part# | LT3825EFE |
Type： | / |
Manufactor | LINEAR |
DC | new |
Product Attributes
| ECCN (US) | EAR99 |
| Part Status | Unconfirmed |
| HTS | 8542.39.00.01 |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Number of Outputs | 1 |
| Topology | Flyback |
| Process Technology | MOSFET |
| Maximum Switching Frequency (kHz) | 250 |
| Minimum Input Voltage (V) | 10 |
| Operating Supply Voltage (V) | 14 to 16 |
| Maximum Supply Current (mA) | 10 |
| Minimum Switching Frequency (kHz) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |
| Supplier Temperature Grade | Extended |
| Packaging | Tube |
| Mounting | Surface Mount |
| Package Height | 0.95(Max) |
| Package Width | 4.5(Max) |
| Package Length | 5.1(Max) |
| PCB changed | 16 |
| Standard Package Name | SO |
| Supplier Package | TSSOP EP |
| Pin Count | 16 |
| Lead Shape | Gull-wing |

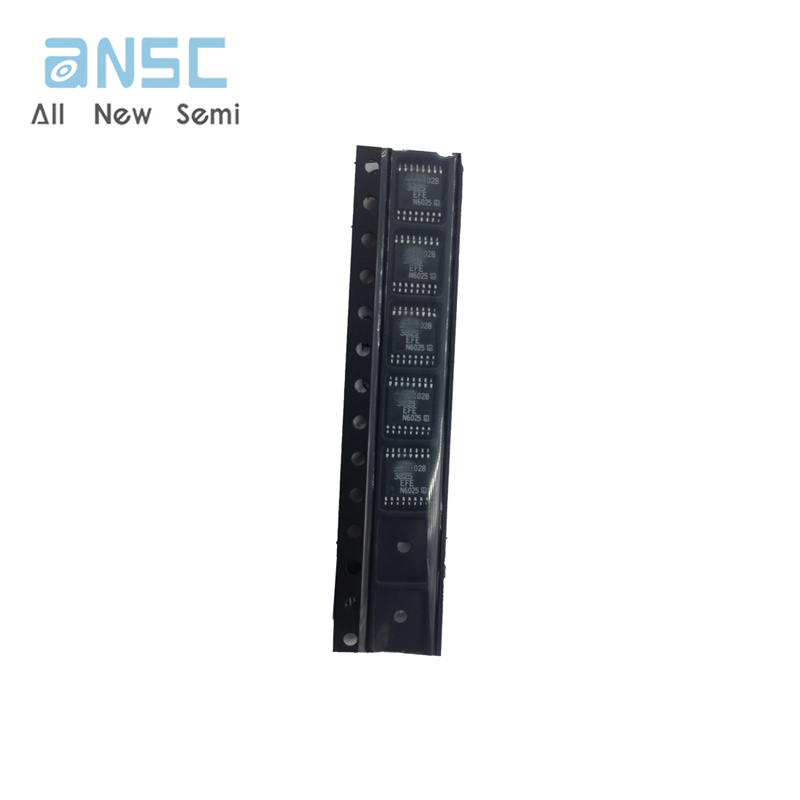

Actual image of the product
