SIP32429DN-T1-GE4 Overview
As you can see, it's packaged in the way of a Tape & Reel (TR).This file is included in package 10-VFDFN Exposed Pad.This LED driving board is mounted using the mounting type Surface Mount.There is a switch type of General Purpose.It is best to set the temperature to -40°C~85°C TA to ensure reliable operation.It is possible to use 1 outputs in the lighting driver.The LED driving board is powered by a voltage of Not Required.A maximum output voltage of P-Channel volts has been specified.As far as features are concerned, the LED driving board has Slew Rate Controlled, Status Flag.As a result, there are 10 terminations.In order to operate, 10 pins are used.It contains 1 functions.It is necessary to reduce the maximum output current to 3.5A to meet the operation criteria.It is possible to achieve a high level of efficiency with a supply voltage of 12V.In this case, it is mounted in the way of Surface Mount.It has 56mOhm resistance.In order to operate normally, the supply voltage (Vsup) must be maintained above 6V.The analog IC used in this lighting driver is SPST.We offer 1 channels in total.
SIP32429DN-T1-GE4 Features
Supplied from 12V
Resistance of 56mOhm
1 channels
SIP32429DN-T1-GE4 Applications
There are a lot of Vishay Siliconix
SIP32429DN-T1-GE4 Power Switches ICs applications.
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
Low Voltage I/O System Power
Hard Disk Drives
Solid-State Drives
Hot Swap
HDD and SSD
Hot Swap
Wireless Modem Data Cards
Product Description
Vishay Siliconix SIP32429DN-T1-GE4
P-Channel 0.5mm PMIC 10 Pin 12V 10-VFDFN Exposed Pad PMIC P-Channel 0.5mm Power Switches IC
ANSC PART# | ANSC- SIP32429DN-T1-GE4 |
Part# | SIP32429DN-T1-GE4 |
Type： | Integrated Circuits(ICs) |
Manufactor | Vishay Siliconix |
DC | new |
Package / Case | 10-DFN (3x3) |
Supplier Device Package | Tape & Reel (TR)Cut Tape (CT) |
Product Attributes
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Vishay Siliconix |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel庐 | |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:01 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 6V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3.5A |
| Rds On (Typ) | 56mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, UVLO |
| Operating Temperature | -40掳C ~ 85掳C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-DFN (3x3) |
| Package / Case | 10-VFDFN Exposed Pad |
| Base Product Number | SIP32429 |

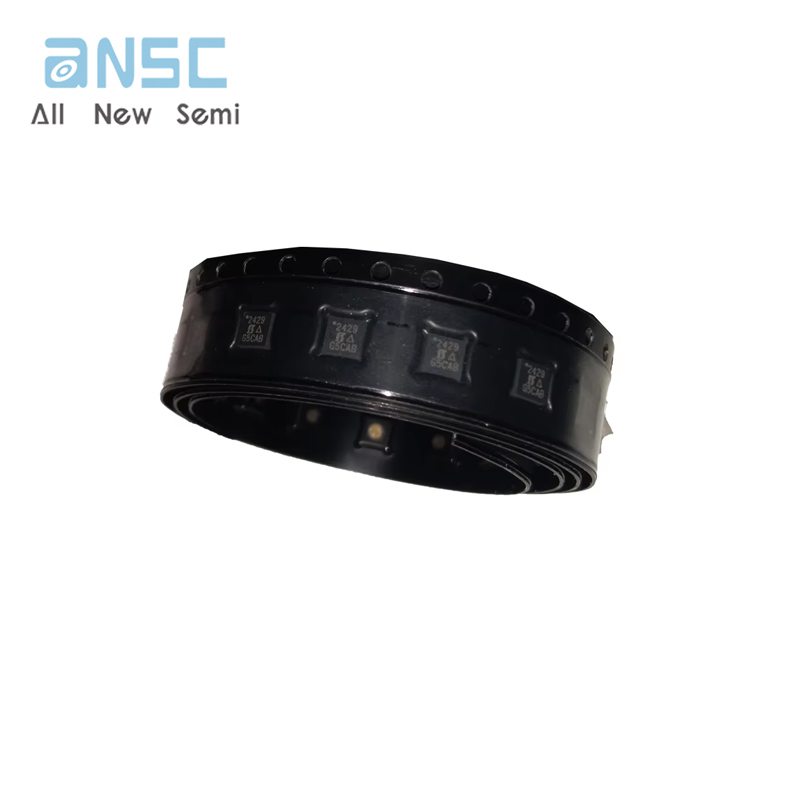

Actual image of the product

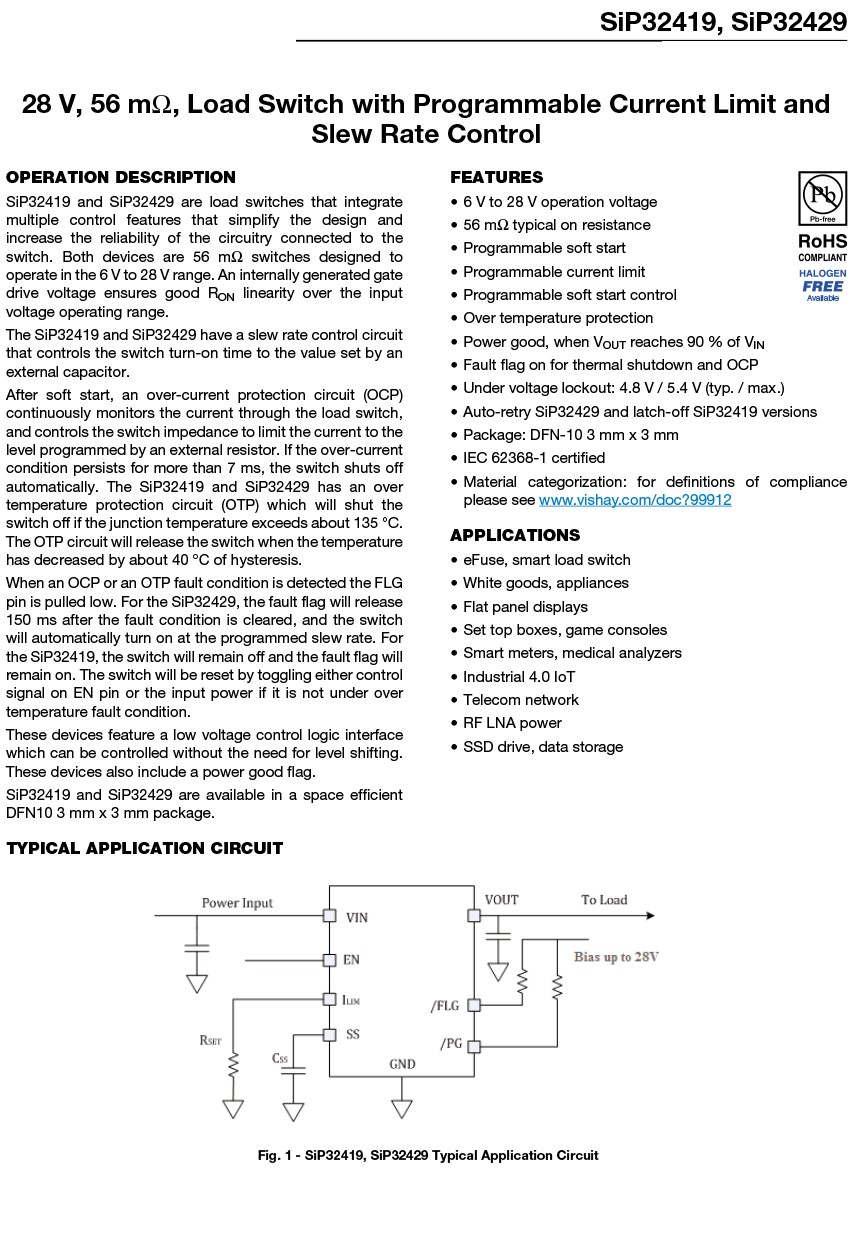

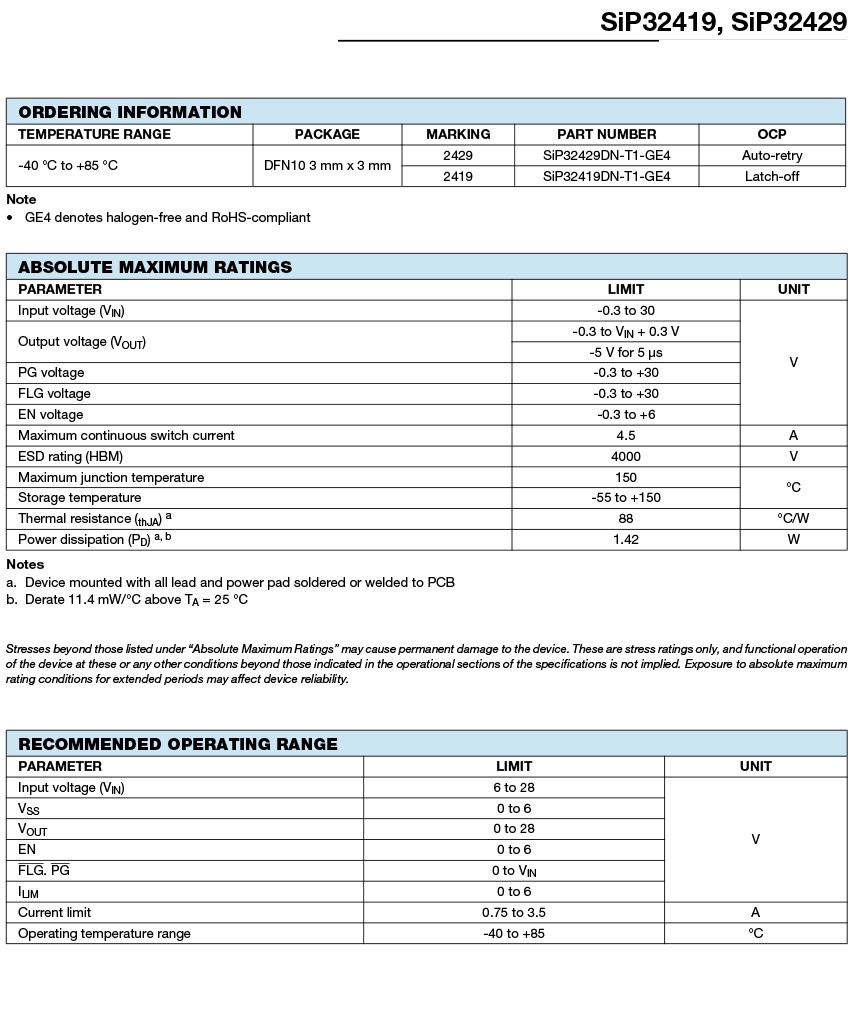

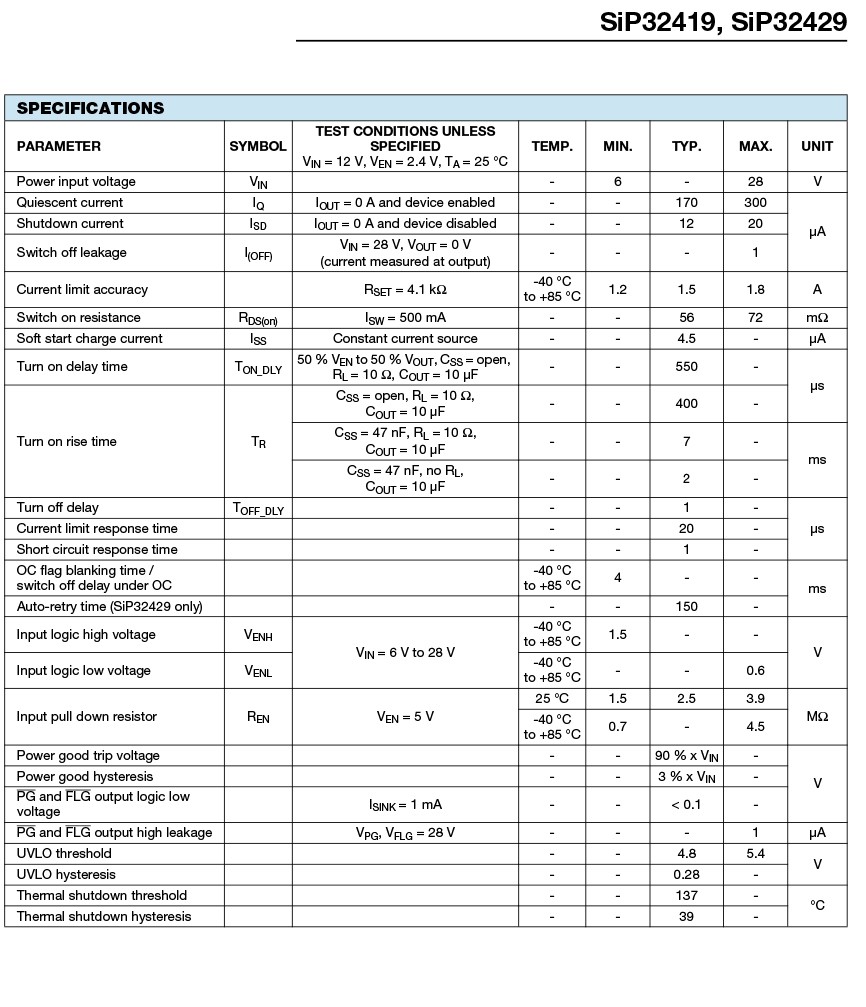

Product datasheet
For more information, please download
