Product Descriptions

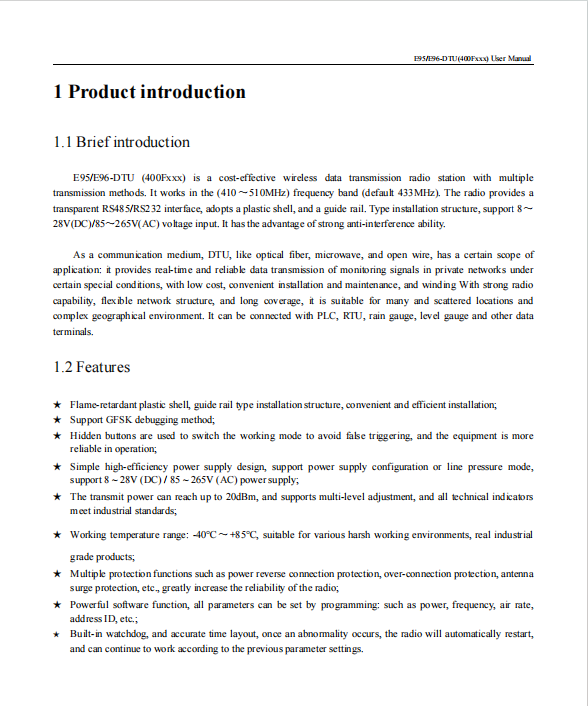

E95/E96-DTU (400Fxxx) is a cost-effective wireless data transmission radio station with multiple transmission methods. It works in the (410～510MHz) frequency band (default 433MHz). The radio provides a transparent RS485/RS232 interface, adopts a

plastic shell, and a guide rail. Type installation structure, support 8～28V(DC)/85～265V(AC) voltage input. It has the advantage of strong anti-interference ability.

As a communication medium, DTU, like optical fiber, microwave, and open wire, has a certain scope of application: it provides real-time and reliable data transmission of monitoring signals in private networks under certain special conditions, with low

cost, convenient installation and maintenance, and winding With strong radio capability, flexible network structure, and long coverage, it is suitable for many and scattered locations and complex geographical environment. It can be connected with PLC,

RTU, rain gauge, level gauge and other data terminals.

Product Features

★ Flame-retardant plastic shell, guide rail type installation structure, convenient and efficient installation;

★ Support GFSK debugging method;

★ Hidden buttons are used to switch the working mode to avoid false triggering, and the equipment is more

reliable in operation;

★ Simple high-efficiency power supply design, support power supply configuration or line pressure mode, support 8 ~ 28V (DC) / 85 ~ 265V (AC) power supply;

★ The transmit power can reach up to 20dBm, and supports multi-level adjustment, and all technical indicators meet industrial standards;

★ Working temperature range: -40℃～+85℃, suitable for various harsh working environments, real industrial grade products;

★ Multiple protection functions such as power reverse connection protection, over-connection protection, antenna surge protection, etc., greatly increase the reliability of the radio;

★ Powerful software function, all parameters can be set by programming: such as power, frequency, air rate, address ID, etc.;

★ Built-in watchdog, and accurate time layout, once an abnormality occurs, the radio will automatically restart, and can continue to work according to the previous parameter settings.

Specifications

Actual product photos

Product Data Book：

For more product information, please download the PDF
