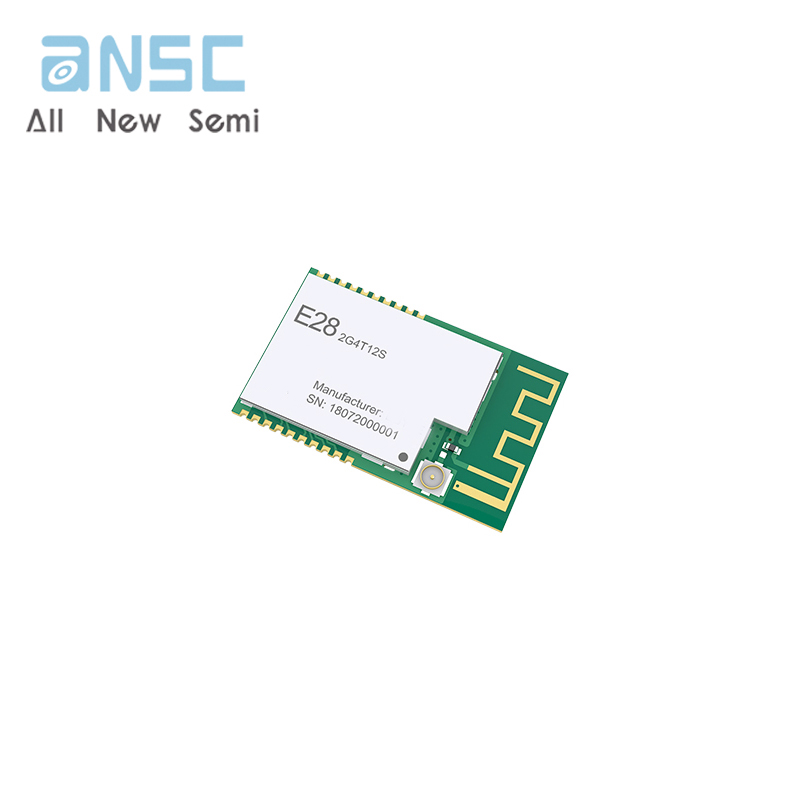

Hot selling E28-2G4T12S SX1280 UART 3Km Range 2.4GHz 12dBm SMD 17.5*28.7mm CE FCC LoRa Wireless Transmitter RF Module

E28-2G4T12S

Model:E28-2G4T12S

Manufacturer:EBYTE

Package:module

Detail

Product Descriptions


E28-2G4T12S is an UART module based on SEMTECH SX1280, it adopts transparent transmission and works at 2.4GHz band. It adopts LoRa, FLRC and GFSK modulations. It features SMD packing with both IPX and PCB antenna interfaces, and its TTL

output is 3.3V. The LoRa direct sequence spread spectrum (DSSS) enables longer communication range and better anti-interference ability. The forward error correction (FEC) algorism enables better coding efficiency and error correction ability.


The module will proactively correct the interfered data packets when sudden interference occurs, which significantly improves the communication range and reliability. The module features data encryption and compression. The data transmitted in air

features randomness, the data encryption algorism makes data interception meaningless, meanwhile, the data compression function could shorten the transmission duration and reduce the probability of data interference, thus improves the reliability

and transmission efficiency.


Product Features


• Support various modulation such as GFSK Mode,FLRC Mode,LoRa Mode;

• Supporting high-speed continuous transmission, data without subcontracting;

• Support RSSI for evaluating signal quality;

• Support fixed transmission/broadcast/monitoring;

• Communication distance tested is up to 3km in ideal condition;;

• Maximum transmitting power of 12dBm, Software adjustable;

• Support the global license-free ISM 2.4GHz;

• Support air data rate of 1kbps~2Mbps;

• Low power consumption for battery supplied applications;

• Support 2.3V~5.5V power supply, power supply over 5.5V can guarantee the best performance;

• Industrial grade standard design, support -40 ~ 85 °C for working over a long time;

• PCB and IPEX antenna optional, good for secondary and embedded development.


Product Applications


• Smart Home and Industrial Sensors;

• Security system, location System

• Wireless remote control; UAV;

• Wireless Game Remote Controller

• Health care products;

• Wireless voice, wireless headset;

• Automotive industry applications.


Specifications


AttributeAttribute valueNotes
ANSM-Part#ANSM-E28-2G4T12S
Working frequency2400~2500 MHzISM band
Transmitting power12.5 dBm-
Receiving sensitivity-132 dBmAir data rate: 1.0kbps
ModulationLoRa
FLRC
GFSK
-
Test distance3000mTest condition:clear and open area, antenna gain: 5dBi,antenna height: 2.5m,air data rate: 1kbps
Size17.5 * 28.7 mm-
Antenna typeIPEX / PCB50Ω Impedance
Communication interfaceUARTTTL
PackageSMD-
Transmission power (dBm)4~13Factory default 12.5dBm (approximately 18mW)
Air speed (bps)1k~2MFactory default 1kbps
Power supply voltage (V)2.3~5.5
Emission current (mA)43~51


Actual product photos


E28-2G4T12S


Product Data Book:



For more product information, please download the PDF
