Maxim’s MAX312L/MAX313L/MAX314L analog switches feature low on-resistance (10Ω max) and 1.5Ω onresistance matching between channels. These switches are +3V logic compatible when powered from ±15V or +12V supplies. The switches

conduct equally well in either direction, and offer low leakage over temperature (2.5nA at +85°C).

The MAX312L/MAX313L/MAX314L are quad, singlepole/single-throw (SPST) analog switches. The MAX312L is normally closed (NC), and the MAX313L is normally open (NO). The MAX314L has two NC switches and two NO switches. All three devices

operate from a single+4.5V to +36V supply or from dual ±4.5V to ±20V, and are available in 16-pin TSSOP, SO, and DIP packages.

Product Applications

Test Equipment

Communication Systems

PBX, PABX Systems

Audio Signal Routing

Avionics

Sample-and-Hold Circuits

Data-Acquisition Systems

xDSL Modems

Product Benefits and Features

♦ +3V Logic-Compatible Digital Inputs

VIH = 2.0V

VIL = 0.8V

♦ Pin Compatible with MAX312/MAX313/MAX314 and DG411/DG412/DG413

♦ Low On-Resistance (10Ω max)

♦ Guaranteed RON Match Between Channels (1.5Ω max)

♦ Guaranteed RON Flatness over Specified Signal  Range (2Ω max)

♦ Crosstalk > 96dB at 20kHz

♦ Single-Supply Operation: +4.5V to +36V Dual-Supply Operation: ±4.5V to ±20V

♦ Rail-to-Rail Signal Handling

Specifications

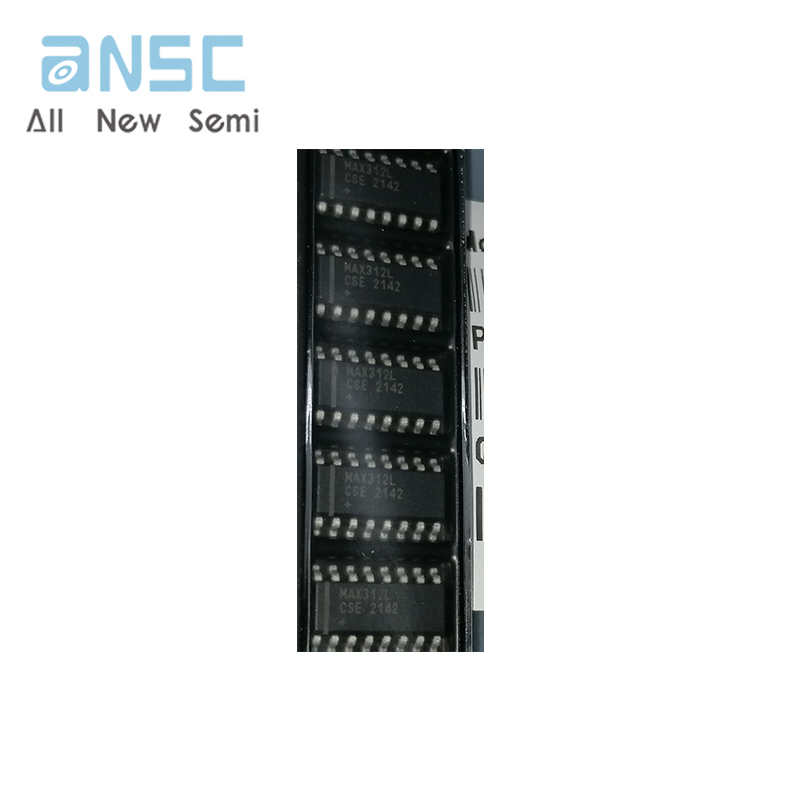

Actual product photos

Product Data Book：

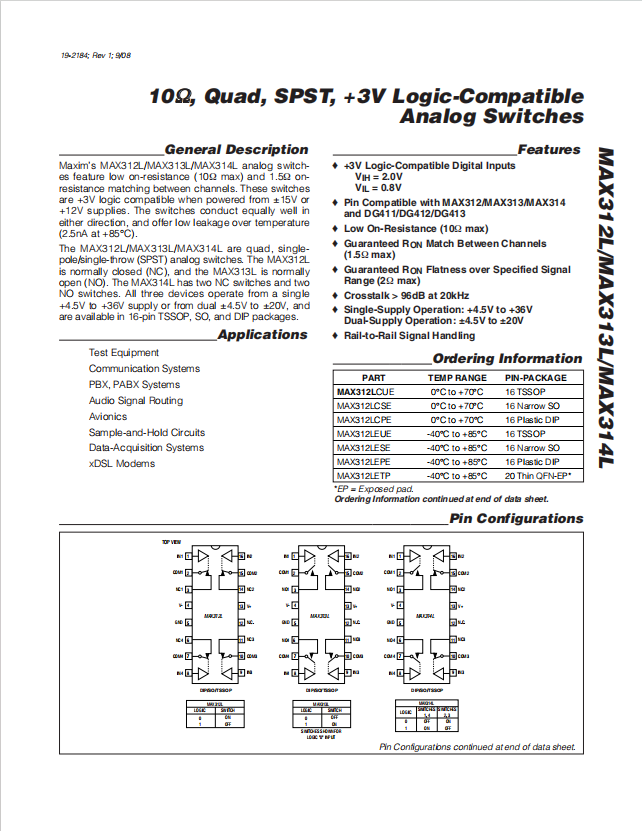

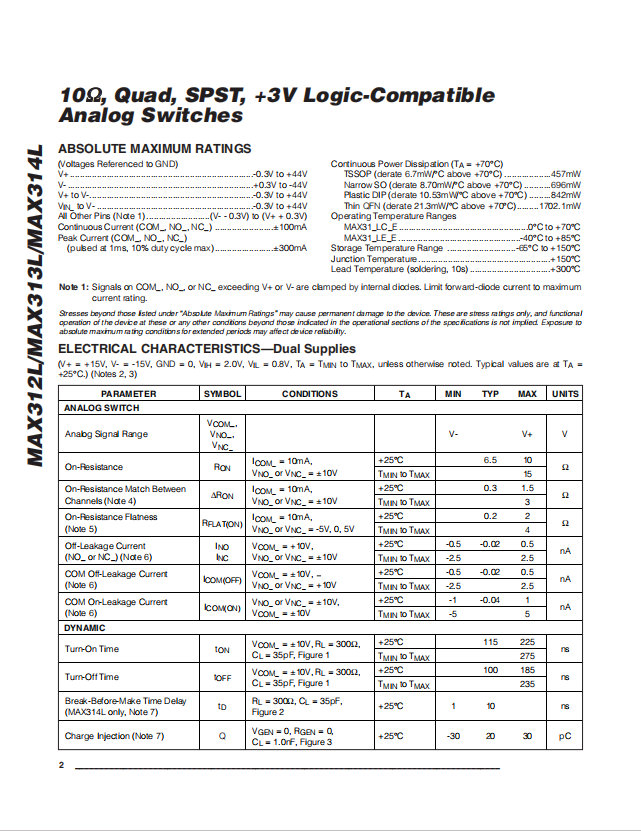

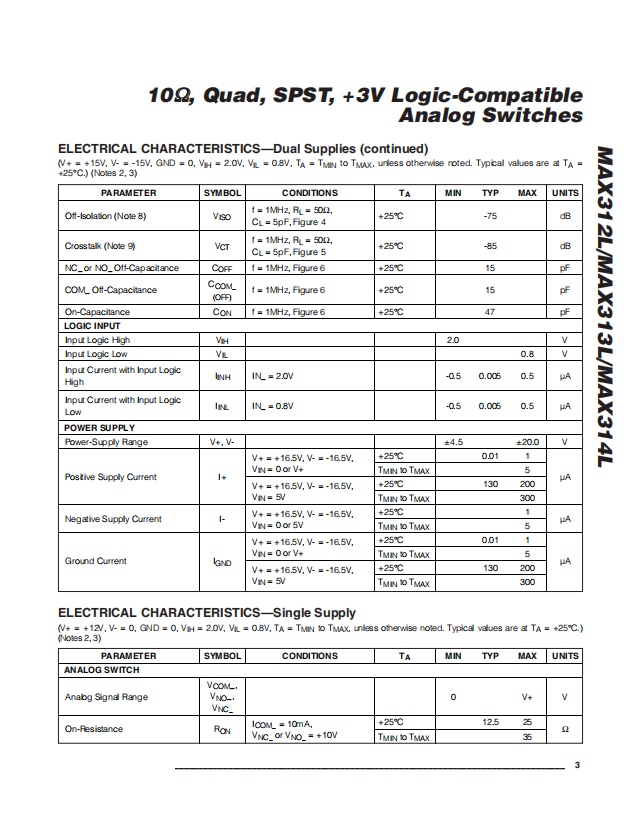

For more product information, please download the PDF
