Product Overview
It is packaged in an 16-SOIC (0.295, 7.50mm Width)-case that protects the operational amplifiers from damage. An op amp of this type is a Instrumentation-type. As far as the packaging is concerned, buffer op amp is delivered in a Tube case. It is estimated that there will be at least 16 terminations this year. A total of 16 pins are attached to buffer op amp. As a reminder, this buffer op amp should be powered by 15V battery and that the battery should be inserted in the amplifier. In total, the buffer amplifier consists of 16 pins. Op amp ic rates 50μV for input offset voltage. This electronic part is recommended for mounting type Surface Mount. In terms of operating temperature, this instrumentation amplifier is well suited to a temperature range of -40°C~85°C. A supply current of 1.4mA can be used to operate this linear amplifier. There should be no change in the voltage gain at 80dB. There are a total of 2 channels available on the op amps. There are 6 elements in this buffer amplifier. The quiescent current is 700μA. It is important that the op amp resistance stays within the range of 100GOhm.
Product Features
16 Pins
supply voltage of 15V
80dB voltage gain
Resistance of 100GOhm
Product Applications
INA2128U Instrumentational OP Amps applications.
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Product Attributes
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - INA2128U |
|
Category |
Integrated Circuits (ICs) Linear Amplifiers Instrumentation, Op Amps, Buffer Amps |
|
Mfr |
Original |
|
Series |
- |
|
Packaging |
Tube |
|
Part Status |
Active |
|
Amplifier Type |
Instrumentation |
|
Number of Circuits |
2 |
|
Output Type |
- |
|
Slew Rate |
4V/µs |
|
Gain Bandwidth Product |
200 kHz |
|
-3db Bandwidth |
1.3 MHz |
|
Current - Input Bias |
2 nA |
|
Voltage - Input Offset |
25 µV |
|
Current - Supply |
1.4mA (x2 Channels) |
|
Current - Output / Channel |
15 mA |
|
Voltage - Supply Span (Min) |
4.5 V |
|
Voltage - Supply Span (Max) |
36 V |
|
Operating Temperature |
-40°C ~ 85°C |
|
Mounting Type |
Surface Mount |
|
Package / Case |
16-SOIC (0.295", 7.50mm Width) |
|
Supplier Device Package |
16-SOIC |
|
Base Product Number |
INA2128 |

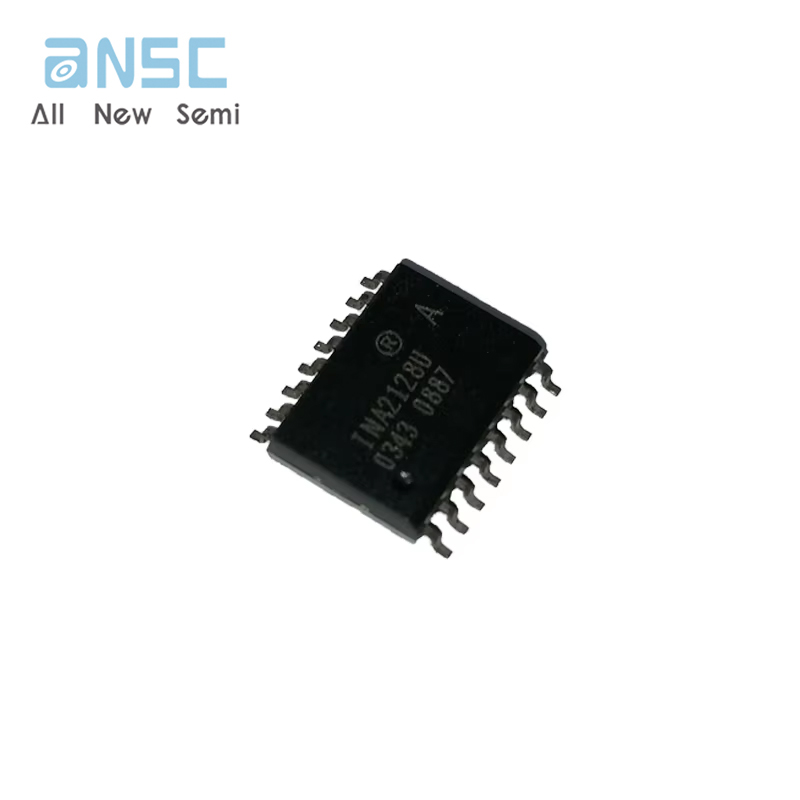

Actual image of the product

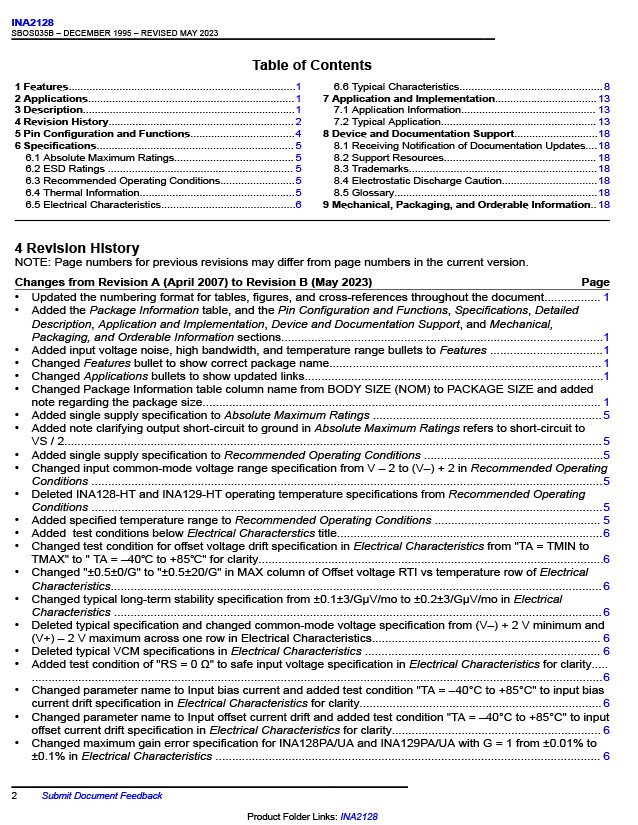

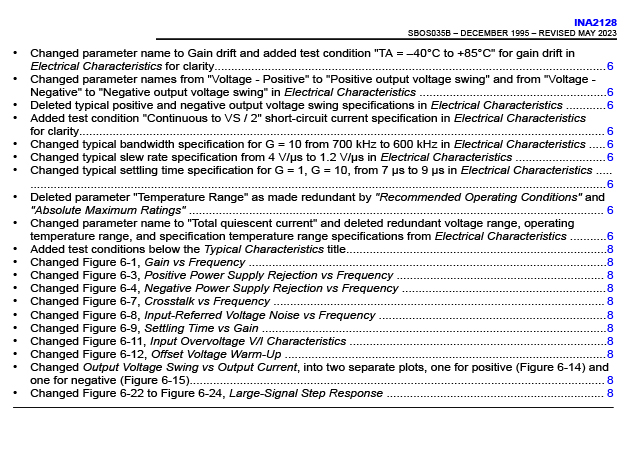

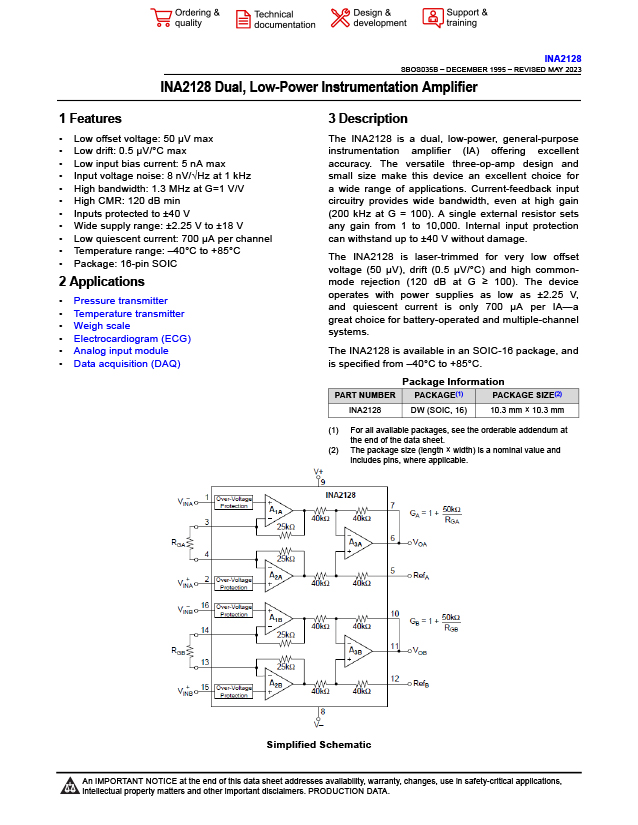

Product datasheet
For more information, please download
