Product Description
The AP431SANTR-G1 is a two-terminal voltage reference IC , designed for use in a wide range of applications. This surface-mountable IC is part of the PMIC family and offers an adjustable output voltage of 2.5V with a tolerance of ±0.5%. The device operates over a temperature range of -40°C to 125°C and features a shunt reference type with a trim/adjustable output.
Product Features
· Adjustable output voltage of 2.5V with a tolerance of ±0.5%
· Operating temperature range of -40°C to 125°C
· Shunt reference type with a trim/adjustable output
· Low current consumption of 100μA
· Available in three package options: TO-236-3, SC-59, and SOT-23-3
· RoHS3 compliant and Pb-free
Product Applications
· Primary applications: Industrial control systems, medical devices, and automotive electronics
· Secondary applications: Consumer electronics, telecommunications equipment, and aerospace systems
Embedded Modules:
· The AP431SANTR-G1 is used in various embedded modules, including:
· Industrial control systems
· Medical devices
· Automotive electronics
Product Description
| Type | Description |
| ANSC PART# | ANSC - AP431SANTR-G1 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | 36 V |
| Current - Output | 100 mA |
| Tolerance | ±0.5% |
| Temperature Coefficient | - |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 100 µA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | AP431 |

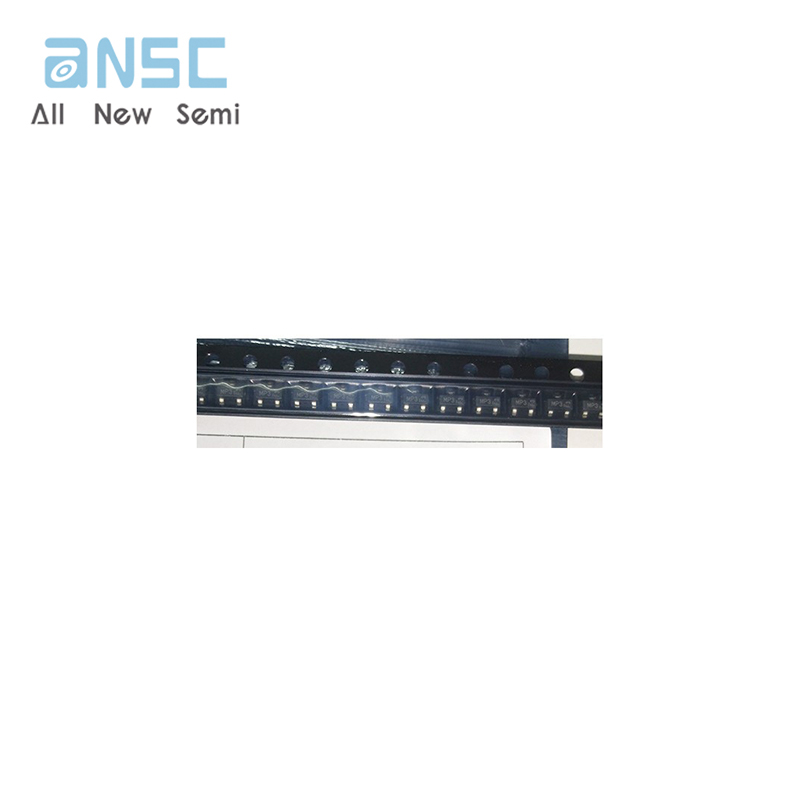

Actual image of the product

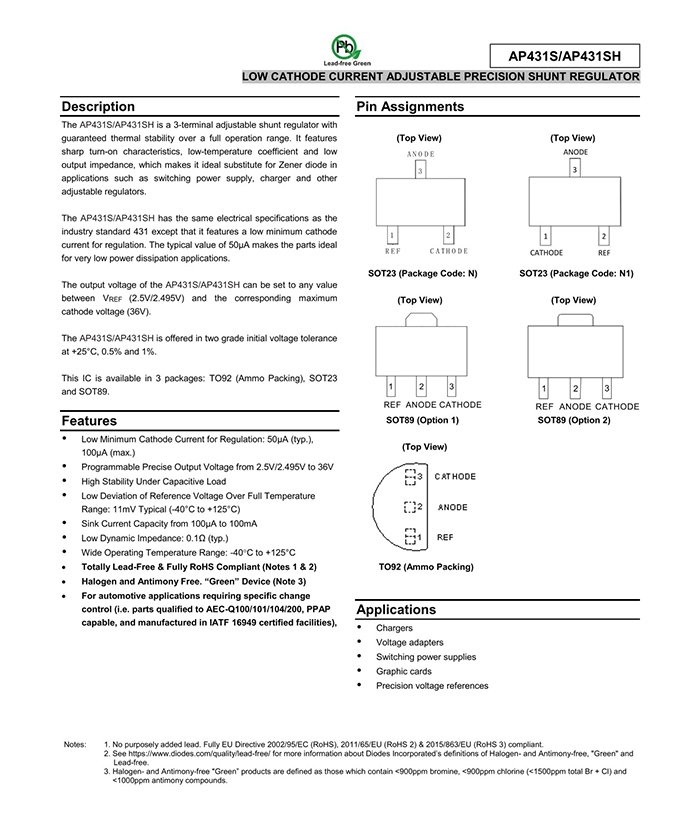

Product datasheet
For more information, please download
