Product Overview

As a whole, it supports 1 outputs. For ease of transportation, alternator regulator is packaged in 8-SOIC (0.154, 3.90mm Width) Exposed Pad. The power regulator is ready for shipment in Tape & Reel (TR). There is a general voltage output of 0.9V 1.25V from this power supply regulator. Surface Mount Universal mount that facilitates easy adaptation. Applications targeting this shunt regulator include LDO (Linear), DDR and others. In order to avoid malfunctions, the operating temperature should be set to -40°C~105°C. The voltage regulator contains 8terminals. Assuming that the rectifier regulator has 8 pins, the pinout begins from there. Search SC2596 for more pin-to-pin solutions. In order to mount it on PCBs or other boards, it has a Surface Mount. The power regulators with 8 pins are available. The electrical regulator should be displaying a current output of 2.5A. It is required that the input voltage be higher than 2.3V. This power regulator is powered by 2.5V voltage and can perform a wide range of demanding tasks. At its maximum output, voltage regulator produces current 2.5A. A quiescent current of 700μA is presented by this alternator regulator. In order to interface with this regulator, BUS TERMINATOR SUPPORT CIRCUIT IC is used.

Product Features

Widely used in LDO (Linear), DDR applications

Adopts BUS TERMINATOR SUPPORT CIRCUIT interface IC

Product Applications

SC2596SETRT Specialized Voltage Regulators applications.

Telecom/Datacom
GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and Vπ Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards

  Product Description

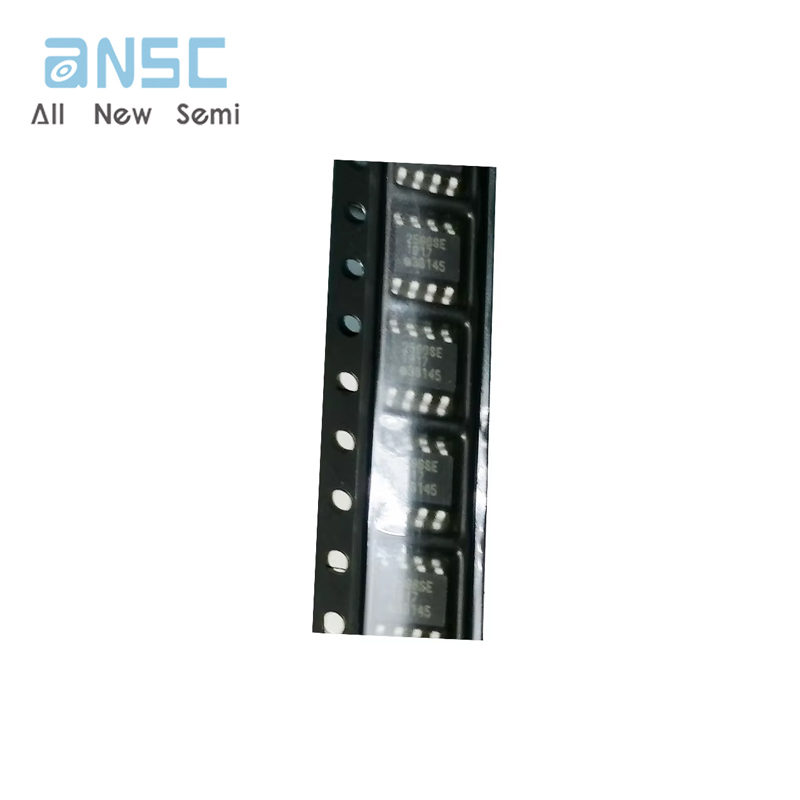

Actual image of the product

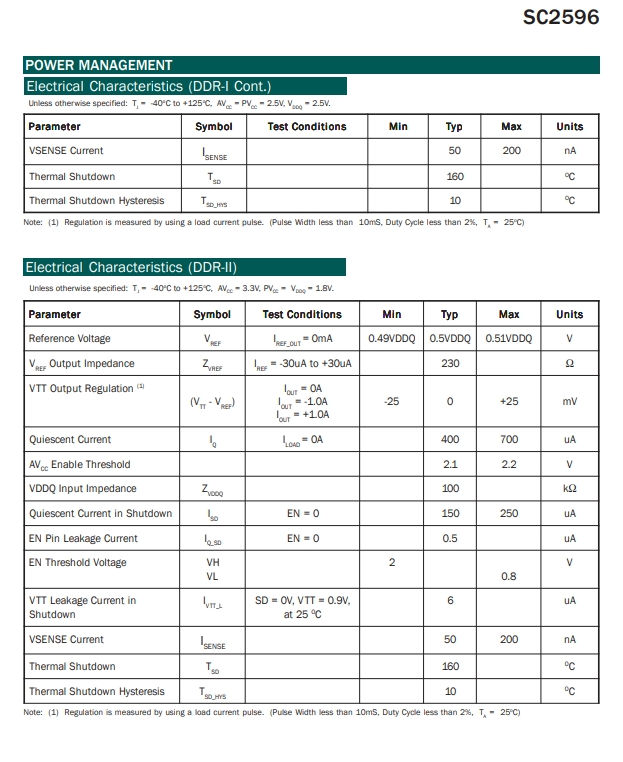

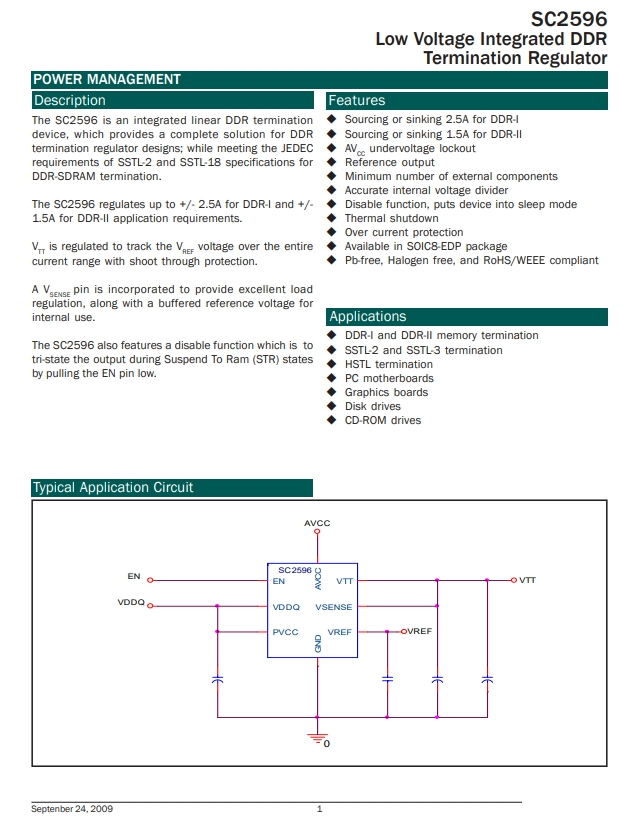

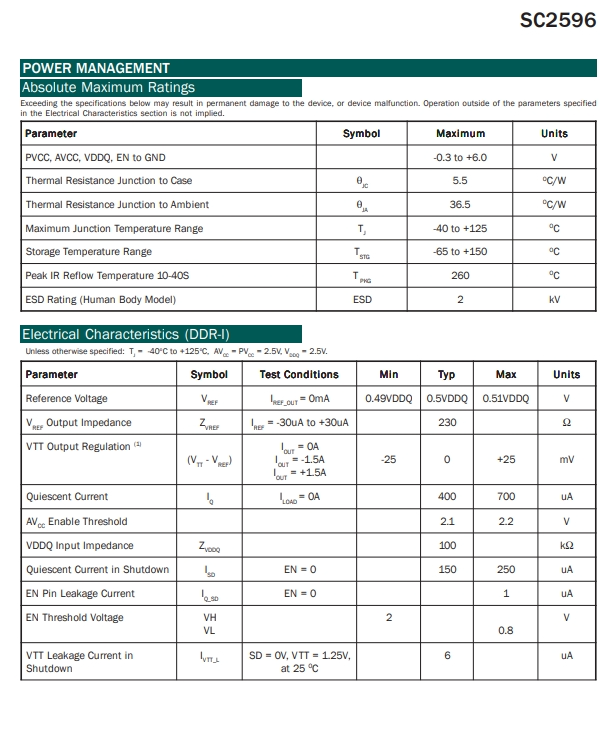

Product datasheet

For more information, please download
