Product Description
The SN54LS374J is an 8-bit D-type flip-flop integrated circuit (IC) manufactured by Texas Instruments. This device is designed to operate as a non-inverting clock-edge trigger, with a positive edge trigger type and a propagation delay of 28 nanoseconds. The IC is packaged in a tube and measures 6.92 mm in width, 5.08 mm in height, and 24.2 mm in length.
Product Features
8-bit D-type flip-flop with non-inverting clock-edge trigger
Positive edge trigger type
Propagation delay of 28 nanoseconds
Operating frequency of 50 MHz
Supply voltage range of 4.5V to 5.5V
Low-level output current of 12 mA and high-level output current of -1 mA
TTL output type
RoHS compliant and contains lead
Product Applications
Primary applications: Digital systems, computer peripherals, and industrial control systems
Secondary applications: Automotive systems, medical devices, and aerospace applications
Alternative Parts:
SN74LS374J (same functionality, different package)
CD54LS374J (same functionality, different manufacturer)
Embedded Modules:
This IC is commonly used in various embedded systems, including:
Digital signal processors (DSPs)
Microcontrollers (MCUs)
Field-programmable gate arrays (FPGAs)
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - SN54LS374J |
|
Category |
Integrated Circuits (ICs) Logic Flip Flops |
|
Manufacturer |
/ |
|
Series |
54LS |
|
Packaging |
Tube |
|
Part Status |
Active |
|
Function |
Standard |
|
Type |
D-Type |
|
Output Type |
Tri-State, Non-Inverted |
|
Number of Elements |
1 |
|
Number of Bits per Element |
8 |
|
Clock Frequency |
50 MHz |
|
Max Propagation Delay @ V, Max CL |
28ns @ 5V, 45pF |
|
Trigger Type |
Positive Edge |
|
Current - Output High, Low |
1mA, 12mA |
|
Voltage - Supply |
4.5V ~ 5.5V |
|
Current - Quiescent (Iq) |
40 mA |
|
Operating Temperature |
-55°C ~ 125°C (TA) |
|
Mounting Type |
Through Hole |
|
Supplier Device Package |
20-CDIP |
|
Package / Case |
20-CDIP (0.300", 7.62mm) |

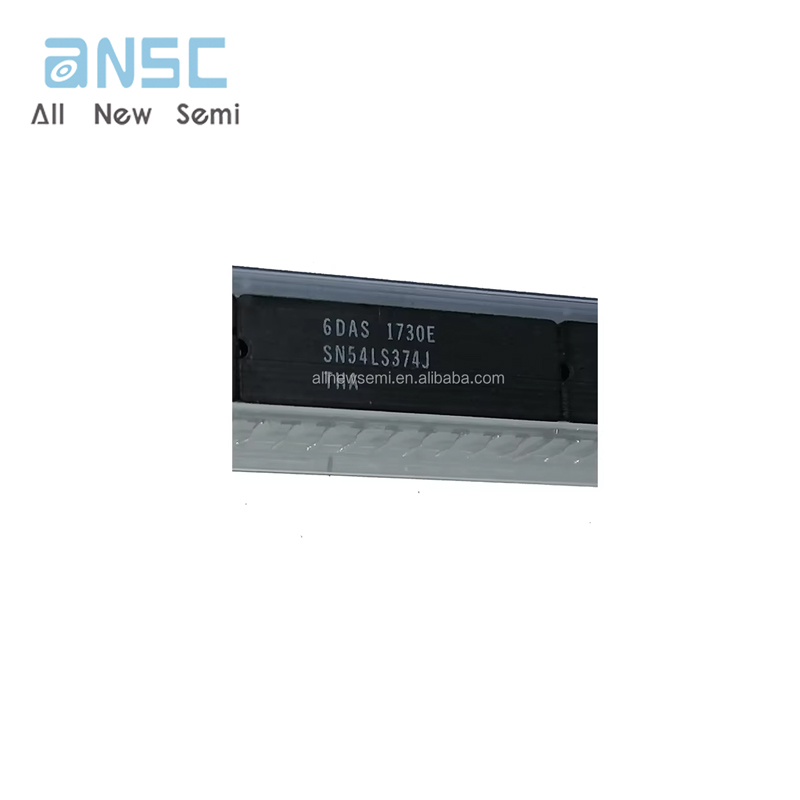

Actual image of the product

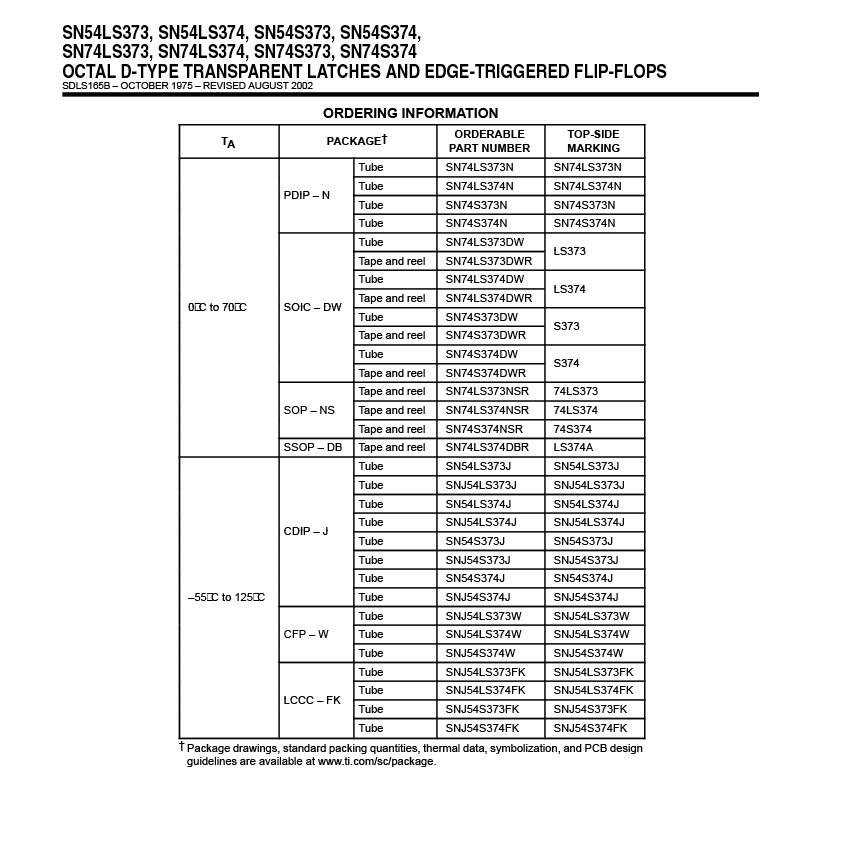

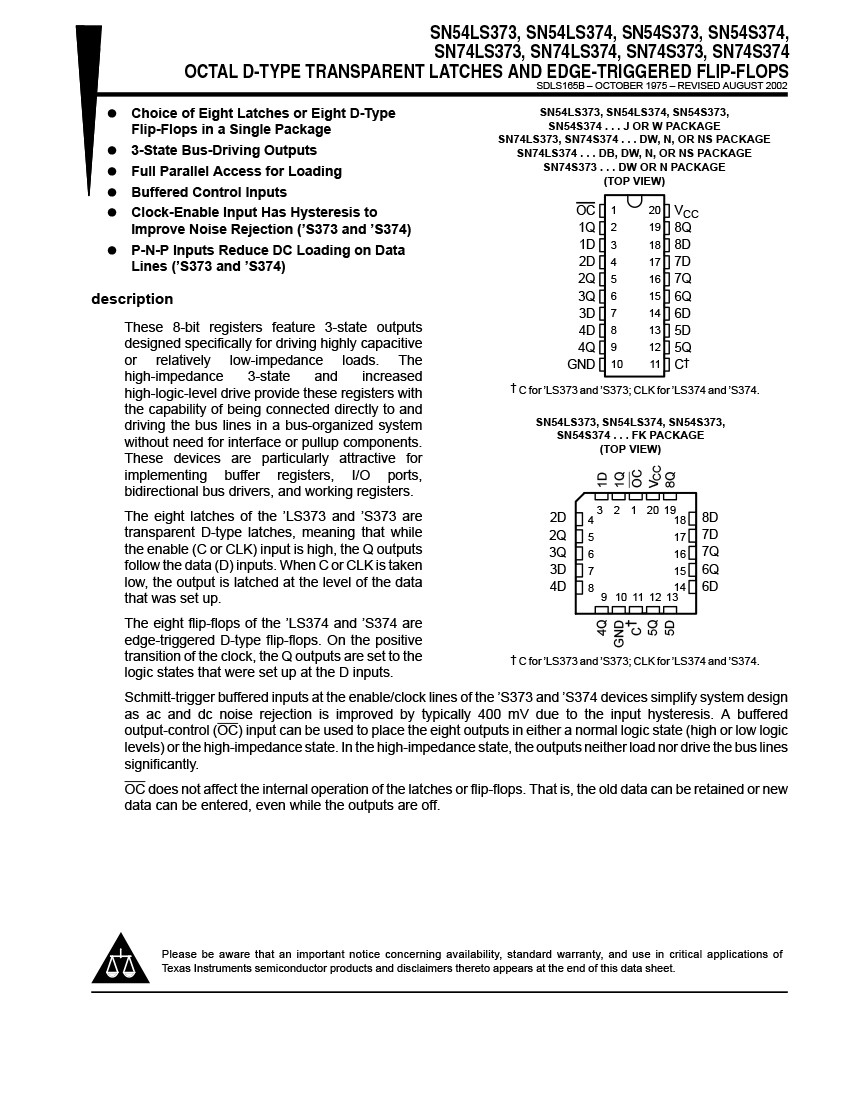

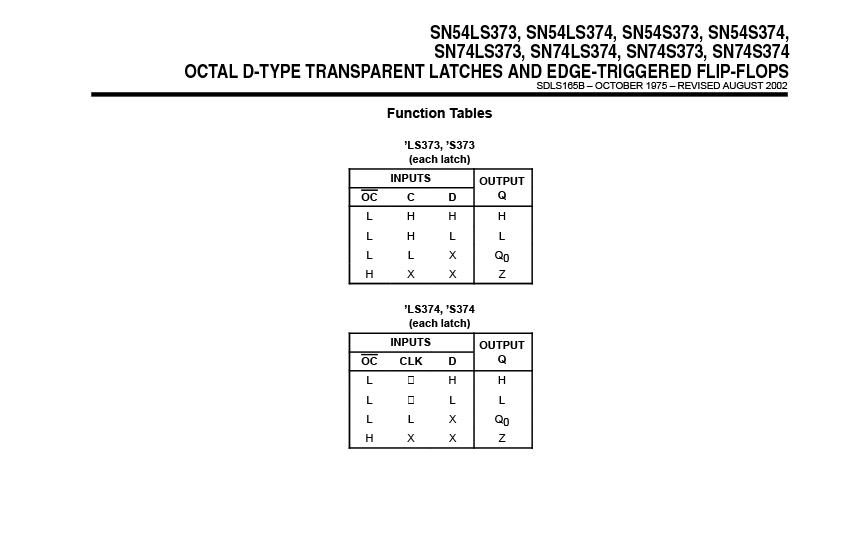

Product datasheet
For more information, please download
