Product Details
| General Description The MIC5318 is a high performance, single output ultra low drop-out (ULDO™) regulator, offering low total output noise in an ultra-small Thin MLF® package. The MIC5318 is capable of sourcing 300mA output current and offers high PSRR and low output noise, making it an ideal solution for RF applications. Features • Ultra low dropout voltage 110mV @ 300mA • Input voltage range: 2.3V to 6.0V • 300mA guaranteed output current • Stable with ceramic output capacitors • Ultra low output noise – 30µVrms • Low quiescent current – 85µA total • High PSRR > 70dB@1kHz • Less than 35µs turn-on time • High output accuracy – ± 2% initial accuracy – ± 3% over temperature • Thermal shutdown and current limit protection • Tiny 6-pin 1.6mm x 1.6mm Thin MLF® package • Thin SOT23-5 package Applications • Mobile phones • PDAs • GPS receivers • Portable electronics • Digital still and video cameras |
Product Description
| Type | Description |
| ANSC PART# | ANSC- MIC5356-SGYMME |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V, 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.8V @ 500mA, 0.8V @ 500mA |
| Current - Output | 500mA, 500mA |
| Current - Quiescent (Iq) | 0.53 µA |
| Current - Supply (Max) | 200 µA |
| PSRR | 60dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP |
| Base Product Number | MIC5356 |

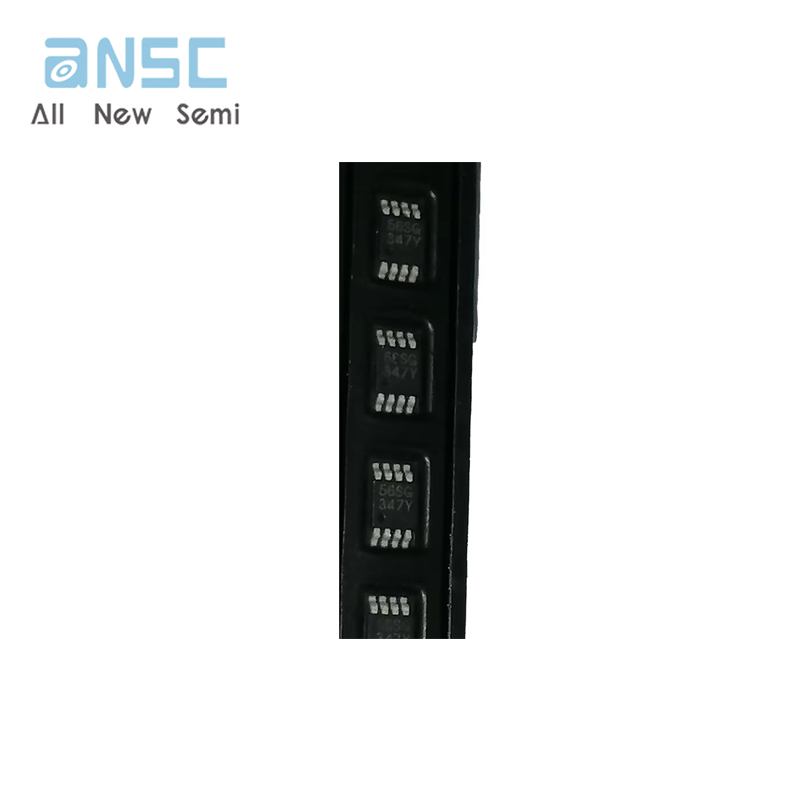

Actual image of the product

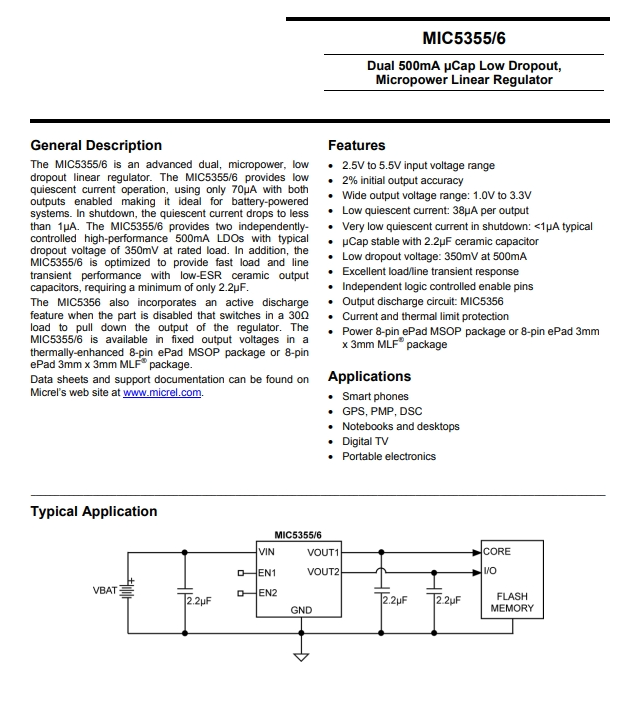

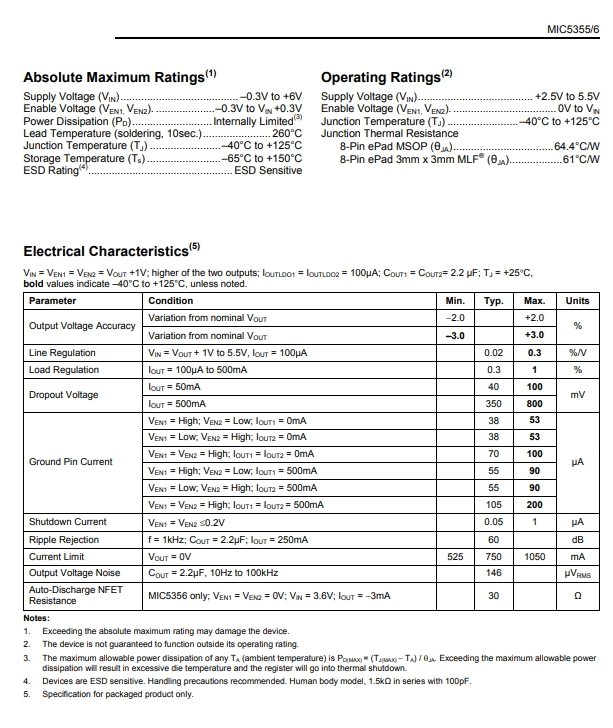

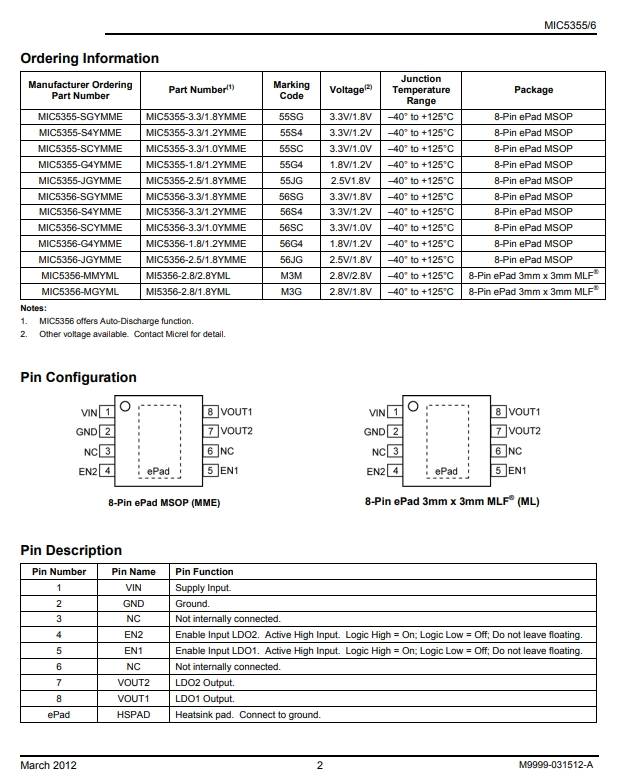

Product datasheet
For more information, please download
