TL431AIDBZR Overview
A handy TO-236-3, SC-59, SOT-23-3 package is used.Uses the handy Shunt package.The handy Tape & Reel (TR) package is used in this program.Various functions terminate at 3.Voltage reference with ±1% tolerance.The reference voltage is coupled with an analog IC THREE TERMINAL VOLTAGE REFERENCE.According to the test statistics, it produces 36V voltage.In this case, it is sufficient to generate 1 outputs.The user can enter input on the Adjustable form.There are 3 pins on the voltage reference ic.The temperature should be kept below 260 during the reflow soldering procedure.The voltage reference ic is settled with 3 pins.For PCB designs requiring high performance, Surface Mount is available.I am qualified to work within -40°C~85°C TA.Search "TL431" for other relevant parts.The reference voltage cannot produce output current greater than 100mA.High-quality communication is available through 1 channels.The maximum output voltage is 36V.Its cathode current should generally be 700μA.There is 2.5V voltage output lower than 2.5V from the voltage reference ic.Users should confine the voltage in accordance with the part's maximum input voltage of 37V.What are the Substances of Very High Concern (SVHC) in the voltage reference ic?In spite of variations in external conditions, this voltage reference can output a voltage of 36V.For the voltage reference ic to run, it requires 2.495V voltage at least.
TL431AIDBZR Features
±1% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: 260
Channel Number: 1
Max Output Voltage: 37V
Reference Voltage: 36V
TL431AIDBZR Applications
There are a lot of Texas Instruments
TL431AIDBZR Voltage Reference applications.
Cellular phones, notebook computers, PDAs, GPSs, and DMMs
Computer workstations
Suitable for use with a wide range of video RAMDACs
Smart industrial transmitters
PCMCIA cards
Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
Industrial process control systems
Product Description
Texas Instruments TL431AIDBZR
Adjustable 0.95mm PMIC
-40°C~85°C TA Adjustable 0.95mm PMIC TL431 1 Channel TO-236-3, SC-59, SOT-23-3
ANSC PART# | ANSC- TL431AIDBZR |
Part# | TL431AIDBZR |
Type： | Integrated Circuits(ICs) |
Manufactor | Texas Instruments |
DC | new |
Package / Case | SOT-23-3 |
Supplier Device Package | Tape & Reel (TR)Cut Tape (CT) |
Product Attributes
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel庐 | |
| Product Status | Active |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 2.495V |
| Voltage - Output (Max) | 36 V |
| Current - Output | 100 mA |
| Tolerance | 卤1% |
| Temperature Coefficient | - |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 700 碌A |
| Operating Temperature | -40掳C ~ 85掳C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | TL431 |

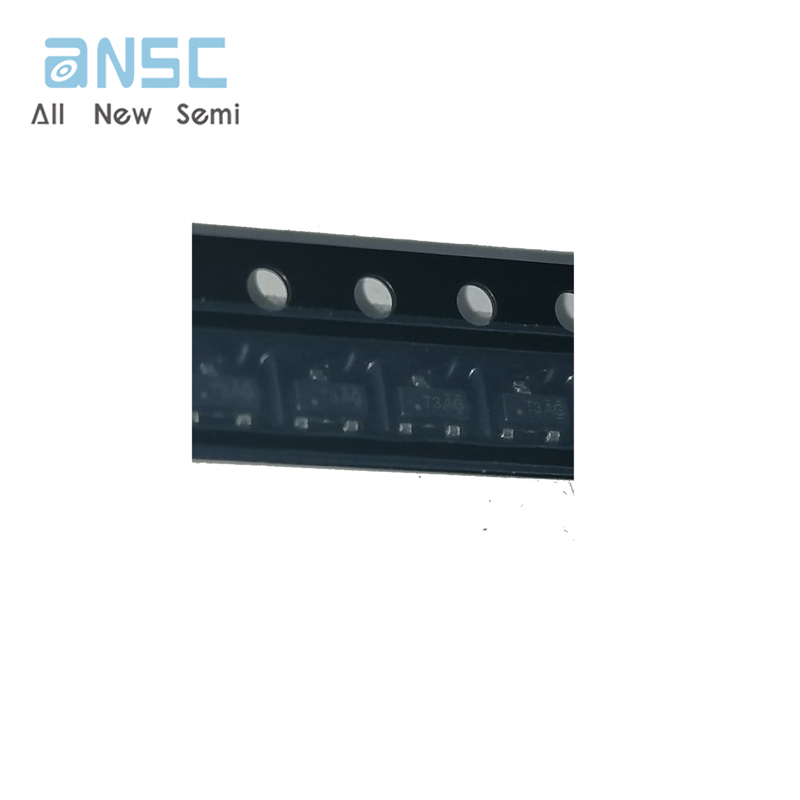

Actual image of the product

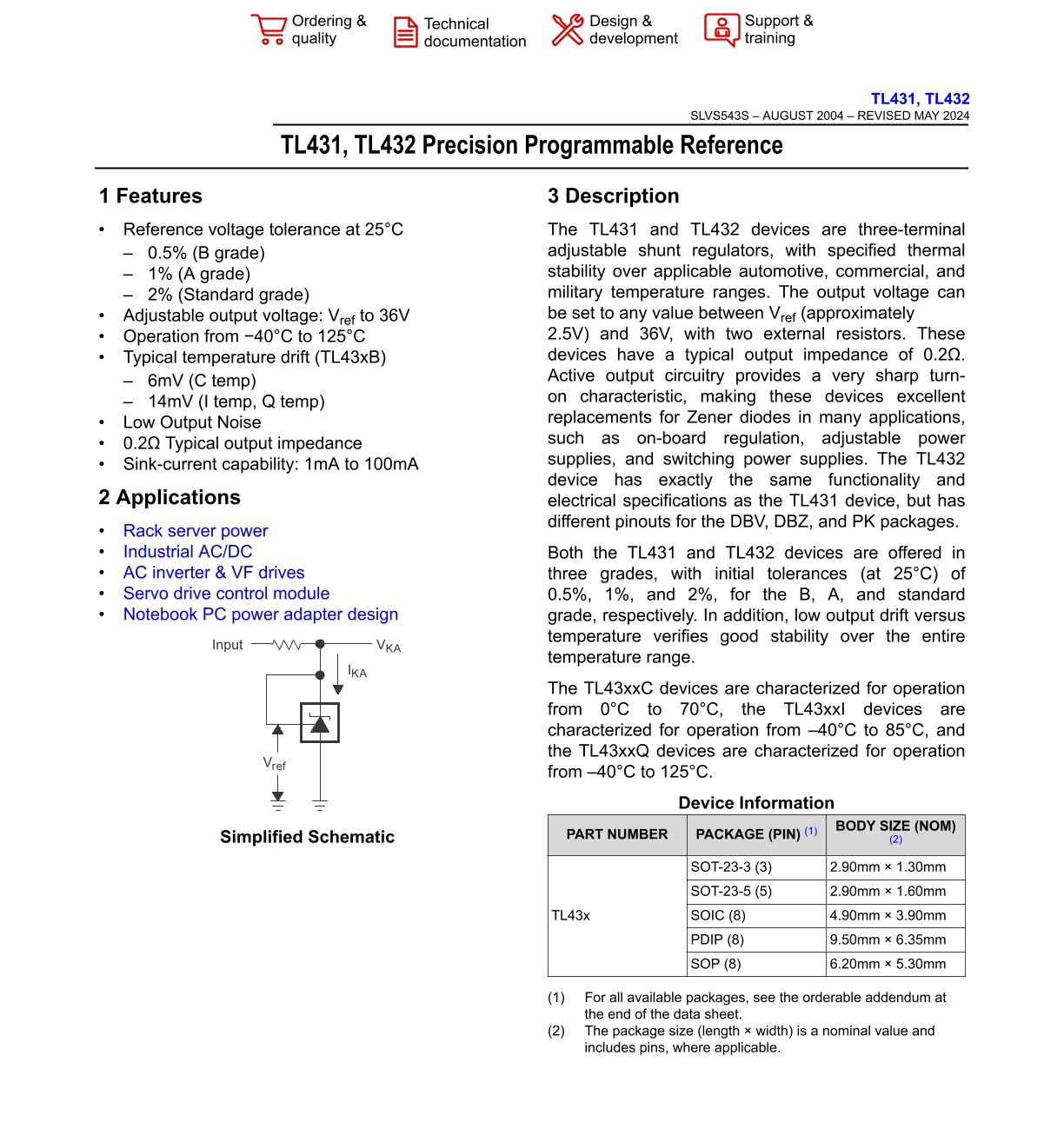

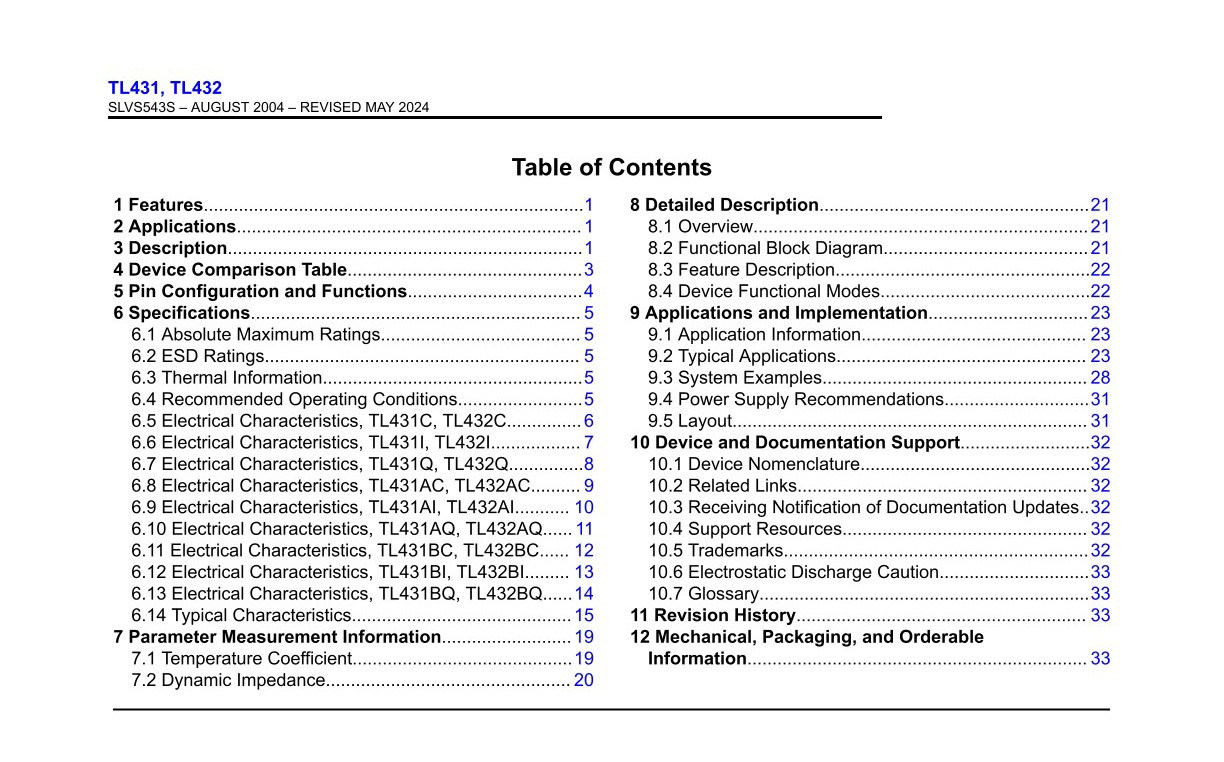

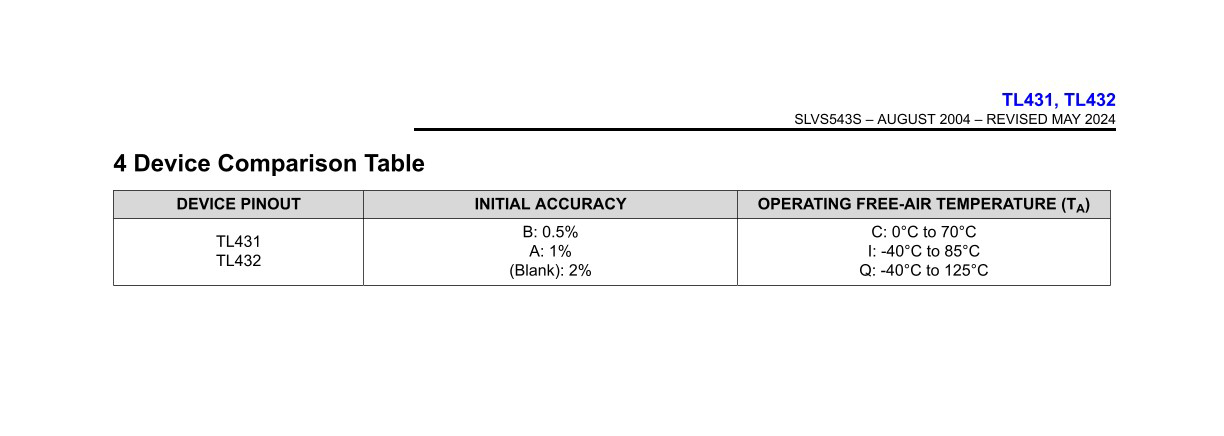

Product datasheet
