Product Details
LMS1585AIT-3.3 Overview
A TO-220-3 case is used for packaging. As you can see, the IC chip has 3 terminations. It is important to note that this device has a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR regulator type. In general, this IC voltage regulator is able to output 3.3V volts on a system basis.
LMS1585AIT-3.3 Features
LMS1585AIT-3.3 Applications
There are a lot of National Semiconductor
LMS1585AIT-3.3 Linear Voltage Regulators applications.
Communication device
Personal communication device
Portable telephone
Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Product Description
Texas Instruments LMS1585AIT-3.3
TO-220-3 Regulator IC 3.3V PMIC TO-220-3
ANSC PART# | ANSC- LMS1585AIT-3.3 |
Part# | LMS1585AIT-3.3 |
Type： | Integrated Circuits(ICs) |
Manufactor | Texas Instruments |
DC | new |
Package / Case | TO-220-3 |
Supplier Device Package | Tube |
Product Attributes
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | LDO Voltage Regulators |
| Mounting Style: | Through Hole |
| Package / Case: | TO-220-3 |
| Output Voltage: | 3.3 V |
| Output Current: | 5 A |
| Number of Outputs: | 1 Output |
| Polarity: | Positive |
| Quiescent Current: | 13 mA |
| Input Voltage, Min: | 2.5 V |
| Input Voltage, Max: | 13 V |
| Output Type: | Fixed |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 125 C |
| Dropout Voltage: | 1.2 V |
| Brand: | Texas Instruments |
| Dropout Voltage - Max: | 1.4 V |
| Ib - Input Bias Current: | 7 mA |
| Line Regulation: | 0.005 % |
| Load Regulation: | 0.3 % |
| Product Type: | LDO Voltage Regulators |
| Subcategory: | PMIC - Power Management ICs |
| Unit Weight: | 0.211644 oz |

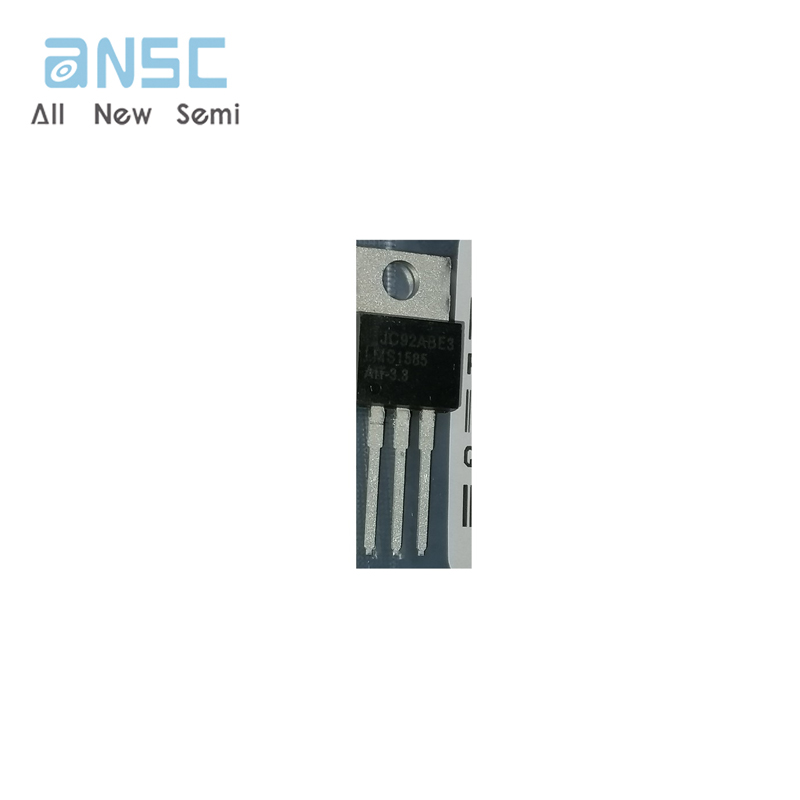

Actual image of the product
