Product Details
| DESCRIPTION The LT®3092 is a programmable 2-terminal current source. It requires only two resistors to set an output current between 0.5mA and 200mA. A multitude of analog techniques lend themselves to actively programming the output current. The LT3092 is stable without input and output capacitors, offering high DC and AC impedance. This feature allows operation in intrinsically safe applications. FEATURES Programmable 2-Terminal Current Source Maximum Output Current: 200mA Wide Input Voltage Range: 1.2V to 40V Input/Output Capacitors Not Required Resistor Ratio Sets Output Current Initial Set Pin Current Accuracy: 1 Reverse-Voltage Protection Reverse-Current Protection <0.001 /V Line Regulation Typical Current Limit and Thermal Shutdown Protection Available in 8-Lead SOT-23, 3-Lead SOT-223 and 8-Lead 3mm × 3mm DFN Packages APPLICATIONS 2-Terminal Floating Current Source GND Referred Current Source Variable Current Source In-Line Limiter Intrinsic Safety Circuits |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - LT3090MPMSE#PBF |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Output Configuration | Negative |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | -36V |
| Voltage - Output (Min/Fixed) | 0V |
| Voltage - Output (Max) | -32V |
| Voltage Dropout (Max) | 0.45V @ 600mA |
| Current - Output | 600mA |
| Current - Quiescent (Iq) | 50.5 µA |
| PSRR | 85dB ~ 20dB (120Hz ~ 1MHz) |
| Control Features | Current Limit, Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 12-MSOP-EP |
| Base Product Number | LT3090 |

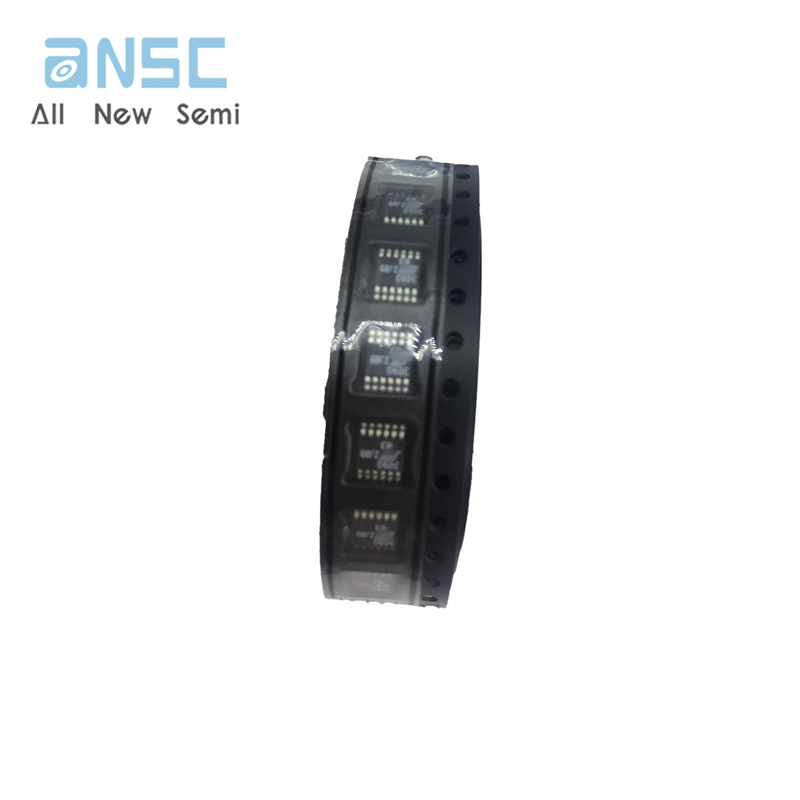

Product Photos

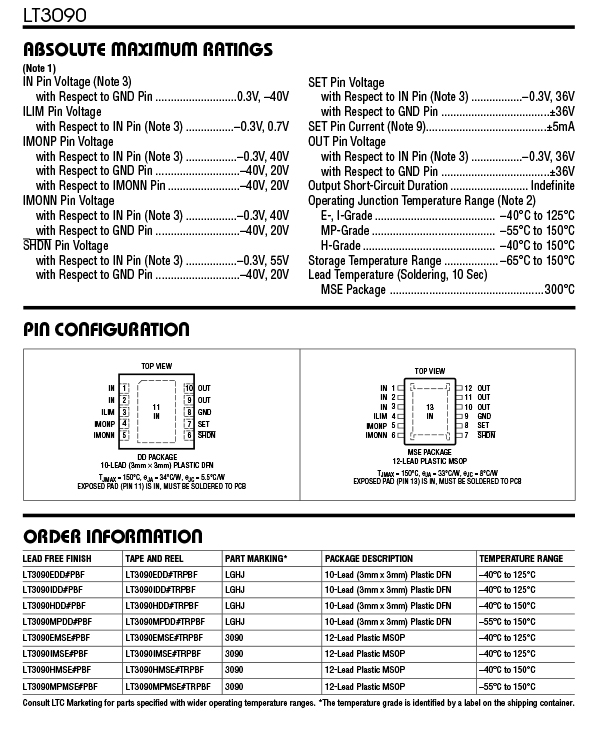

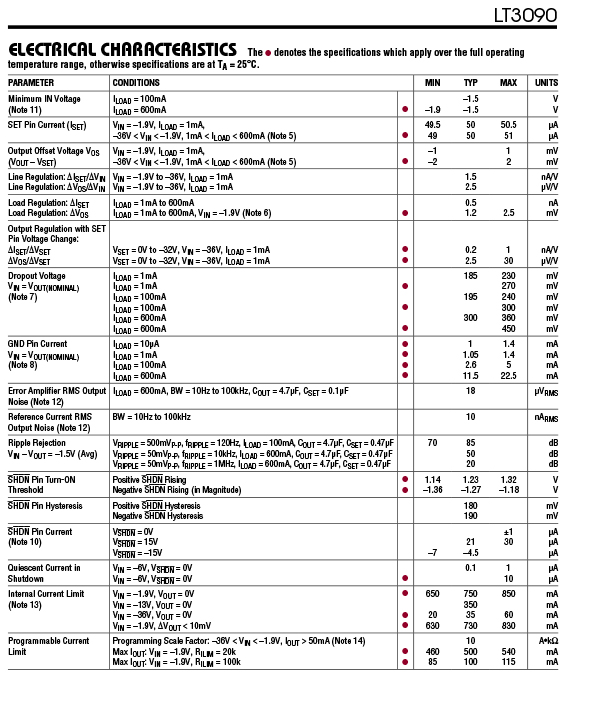

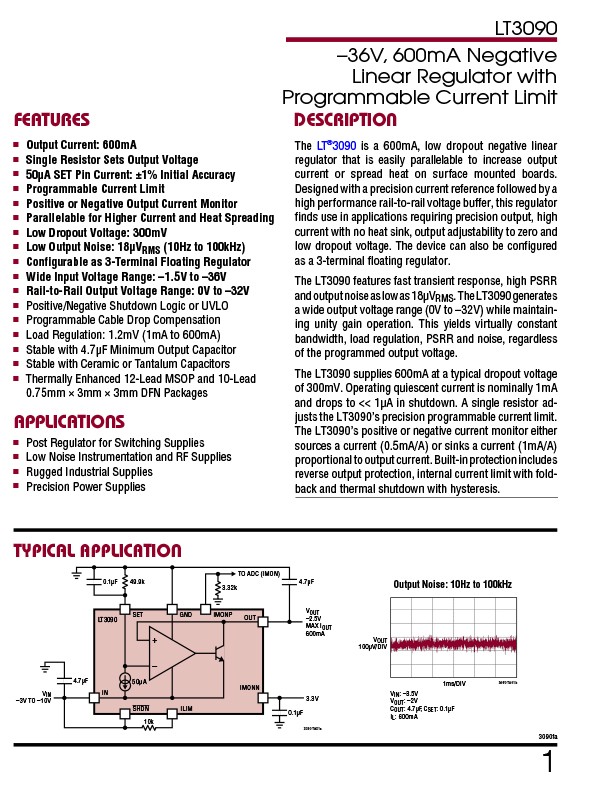

Product datasheet
For more information, please download
