Product Overview
For the purpose of saving board space, digital switch is included in the 42-WFQFN Exposed Pad.In this case, it is packaged as Tape & Reel (TR).Surface Mount is the mounting method digital switch ic uses.In the multiplexers, the analog IC is indicated by Multiplexer/Demultiplexer.As long as the operating temperature is -40°C~85°C, turn signal switch will not be influenced by external factors.When digital controlled switch operates at 2.6V~4.5V, designers have superior flexibility.Among its basic configurations are 42 terminations.In addition, it also has a base part number of TS3DV642, which can be used to find related parts.There is a type of supply of Single.The board has 42 pins configured.The mounting is in the way of Surface Mount.In the signal multiplexer, there are 12 bits available.Keeping Vsup at 2.6V will prevent some unwanted failures.To avoid unnecessary failures, the maximum supply voltage (Vsup) should be kept at 4.5V.Providing a supply voltage of 3V can provide reliable performance of the multiplexers.This multiplexer provides 24 inputs.10.5Ohm is the resistance at which it operates.When 50μA is delivered to the load, stability of the multiplexers can be maintained.
Product Features
Supplied in the 42-WFQFN Exposed Pad package
Adopting a supply type of Single
Operating with the supply voltage of 3V
Operating with the supply current of 50μA
Product Applications
TS3DV642A0RUAR Signal Switches / Multiplexers / Decoders applications.
Computer memory
Transmission from the computer system of a satellite
Time division multiplexing system
Frequency multiplexing system
A/D converters
D/A converters
Implementing boolean functions with multiple variables
Data collection system
Audio transmission
Video transmission
Product Description
TYPE | DESCRIPTION |
|---|---|
ANSC PART# | ANSC - TS3DV642A0RUAR |
Category | Integrated Circuits (ICs) Logic Signal Switches, Multiplexers, Decoders |
Manufacturer | Original |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Type | Multiplexer/Demultiplexer |
Circuit | 12 x 1:2 |
Independent Circuits | 1 |
Current - Output High, Low | - |
Voltage Supply Source | Single Supply |
Voltage - Supply | 2.6V ~ 4.5V |
Operating Temperature | -40°C ~ 85°C |
Mounting Type | Surface Mount |
Package / Case | 42-WFQFN Exposed Pad |
Supplier Device Package | 42-WQFN (3.5x9) |
Base Product Number | TS3DV642 |

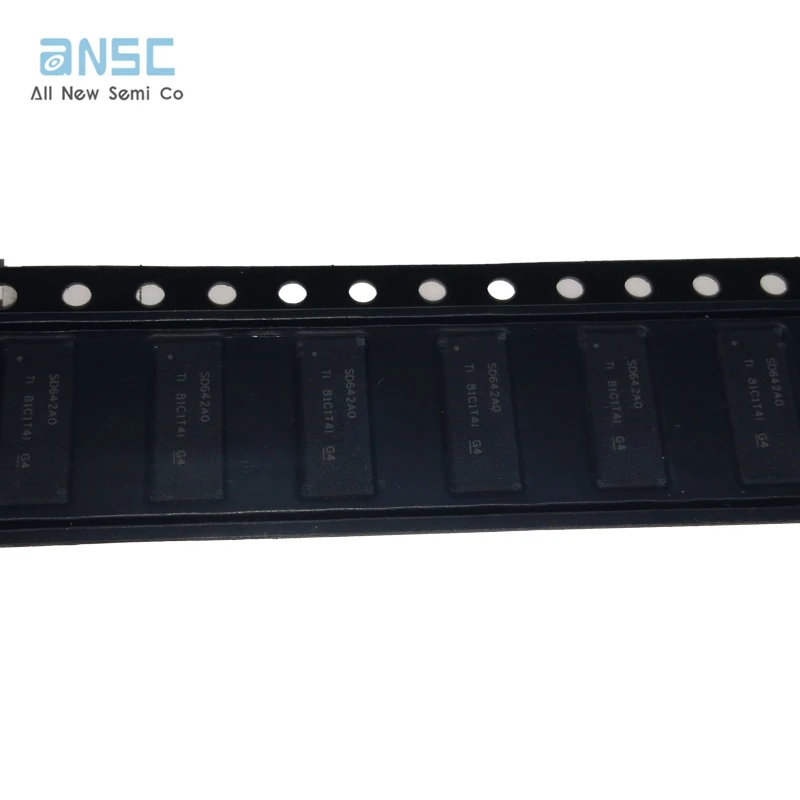

Actual image of the product
Product datasheet
For more information, please download
