Product Overview
Op amp is packaged in SC-74A, SOT-753 case. Op amps are General Purpose types of amplifier on the chip. Instrumentation amplifier is delivered in a Tape & Reel (TR) case. The number of terminations approaches 5. Linear amplifier has a total of 5 pins. Please take in mind that op amp should be run at 5V. Linear amplifier includes 5 pins. Regarding input offset voltage, buffer amplifier rates 700μV voltage. Surface Mount is the recommended mounting type of operational amplifiers. With regard to operating temperature, op amp ranges -40°C~125°C. Operational amplifier can operate supply current at 1.1mA. The voltage gain should stay at 80dB. Instrumentation amplifier has 1 channels on it. On the output type, there are Rail-to-Rail different types of op amps. The operating supply voltage of instrumentation amplifier is rated 16V voltage. It is used TR to pack the op amps.
Product Features
5 Pins
supply voltage of 5V
80dB voltage gain
Output Type: Rail-to-Rail
Product Applications
LM7321MFE/NOPB Instrumentational OP Amps applications.
Proportional operation circuits
Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - LM7321MFE/NOPB |
Category | Integrated Circuits (ICs) Linear Amplifiers Instrumentation, Op Amps, Buffer Amps |
Mfr | Original |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Obsolete |
Amplifier Type | General Purpose |
Number of Circuits | 1 |
Output Type | Rail-to-Rail |
Slew Rate | 18V/µs |
Gain Bandwidth Product | 20 MHz |
Current - Input Bias | 1.1 µA |
Voltage - Input Offset | 700 µV |
Current - Supply | 1.1mA |
Current - Output / Channel | 100 mA |
Voltage - Supply Span (Min) | 2.5 V |
Voltage - Supply Span (Max) | 32 V |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Surface Mount |
Package / Case | SC-74A, SOT-753 |
Supplier Device Package | SOT-23-5 |
Base Product Number | LM7321 |

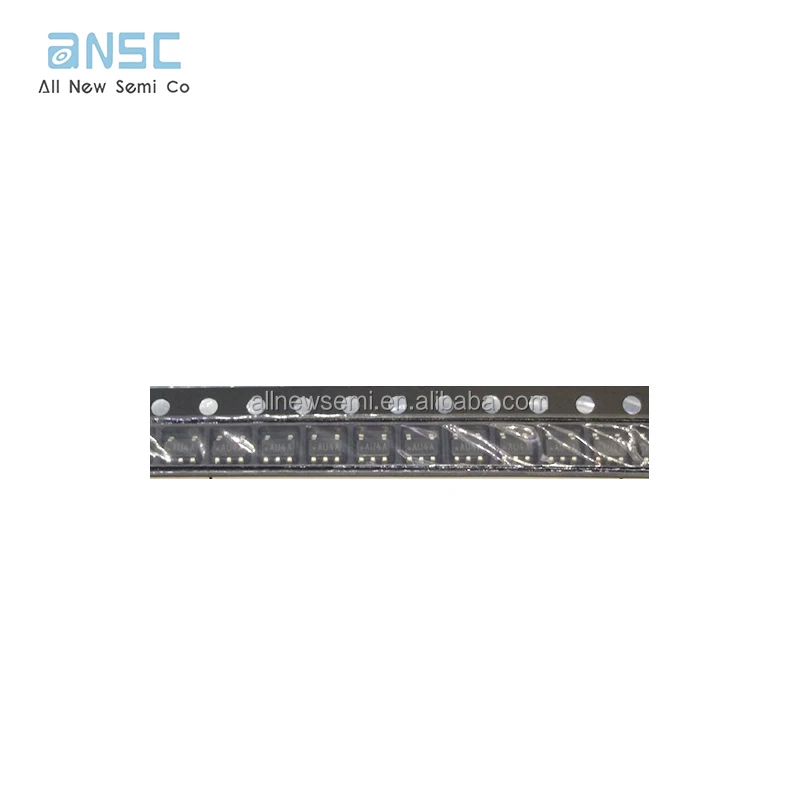

Actual image of the product

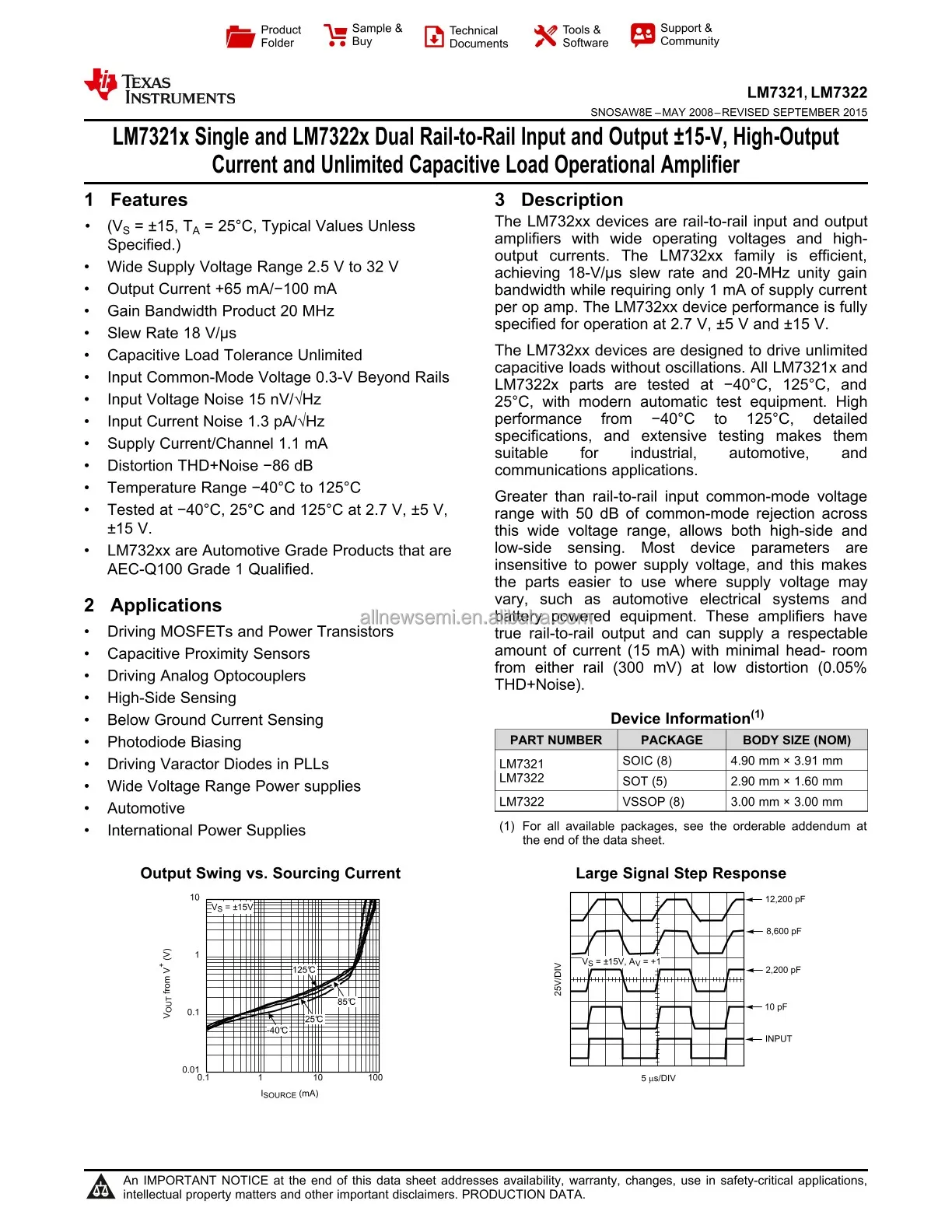

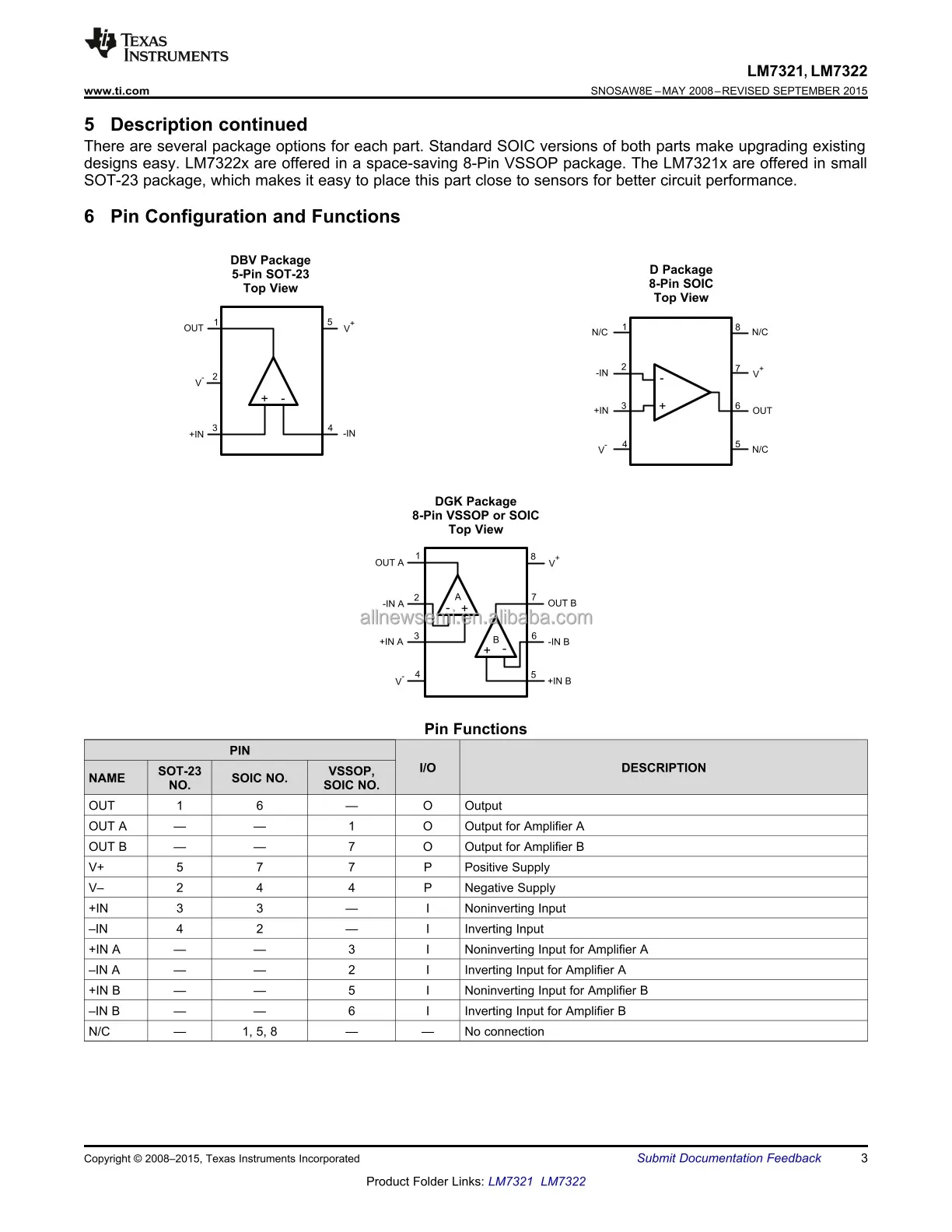

Product datasheet
