roduct Overview
SOT-23-6 contains it.Packaged in the way of Tape & Reel (TR).Tri-State, Non-Inverted is the output configured for it.Its translator type is Voltage Level.Mounting this electronic component follows the Surface Mount method.In this electrical device, the Channel type is Bidirectional.There is -40°C~85°C TA operating temperature.Transmission lines are terminated using 6 terminations.Parts that are related to 74LVC1T45 can be identified based on its base part number.Power comes from a voltage of 1.8V.There are 6 pins on this device.The device is part of the 74LVC series.The board has 6 pins.1 Bits are used in the design of this electronic part.Level translators supports a maximum supply voltage of 1.65V.With a minimum supply voltage of 5.5mV, it operates.Level translators is configured from 1.65V~5.5V for the VCCA supply rail.Level translators is configured from 1.65V~5.5V for the VCCB supply rail.Using the method of Surface Mount, this electronic component is mounted.1 is the number of channels.A BUS TRANSCEIVER logic IC is used.In transmission lines, there are 2 terminations, which correspond to the characteristic impedance of the line.Electronic devices like this belong to the family LVC/LCX/Z.Level translators consumes 3μA quiescent current and is not affected by external factors.Power comes from a 3.3V supply.As a result of its reliable performance, it is well suited for TR.This device features maximum design flexibility due to its output current of 32mA.Outputs are set to 2.
Product Features
SOT-23-6 package
6 pin count
74LVC series
6 pins
3.3V power supplies
2 outputs
Product Applications
SN74LVC1T45DBVR voltage translators & level shifters applications.
| Enterprise | MDIO | PMBus |
| GPIO | Telecom | SMBus |
| SDIO | UART | I2C |
| Automotive |
Product Description
TYPE | DESCRIPTION |
|---|---|
ANSC PART# | ANSC - SN74LVC1T45DBVR |
Category | Integrated Circuits (ICs) Logic Translators, Level Shifters |
Manufacturer | Original |
Series | 74LVC |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Translator Type | Voltage Level |
Channel Type | Bidirectional |
Number of Circuits | 1 |
Channels per Circuit | 1 |
Voltage - VCCA | 1.65 V ~ 5.5 V |
Voltage - VCCB | 1.65 V ~ 5.5 V |
Input Signal | - |
Output Signal | - |
Output Type | Tri-State, Non-Inverted |
Data Rate | 420Mbps |
Operating Temperature | -40°C ~ 85°C (TA) |
Features | - |
Mounting Type | Surface Mount |
Package / Case | SOT-23-6 |
Supplier Device Package | SOT-23-6 |
Base Product Number | 74LVC1T45 |

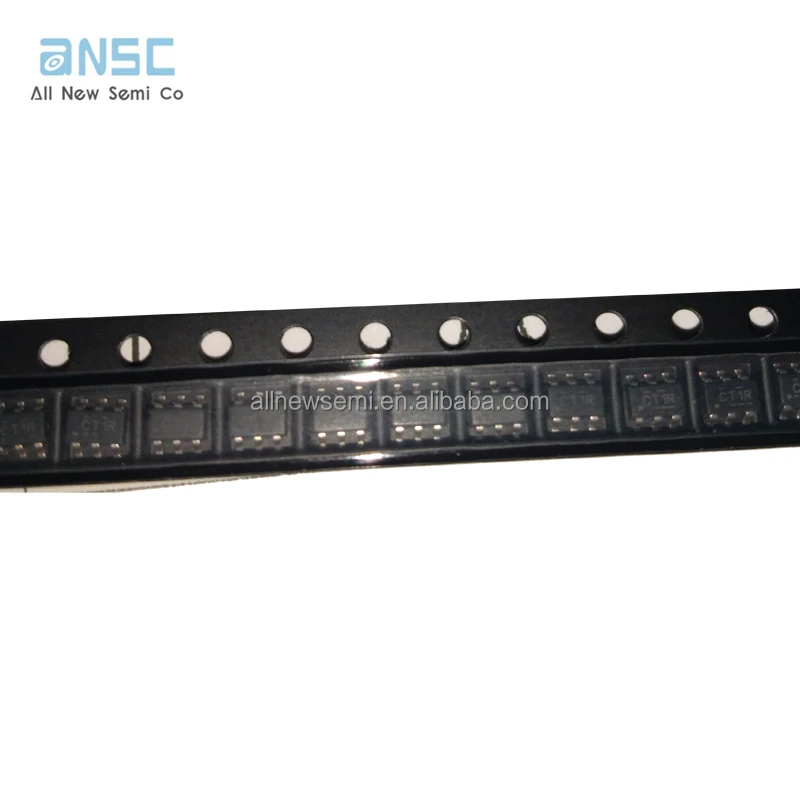

Actual image of the product

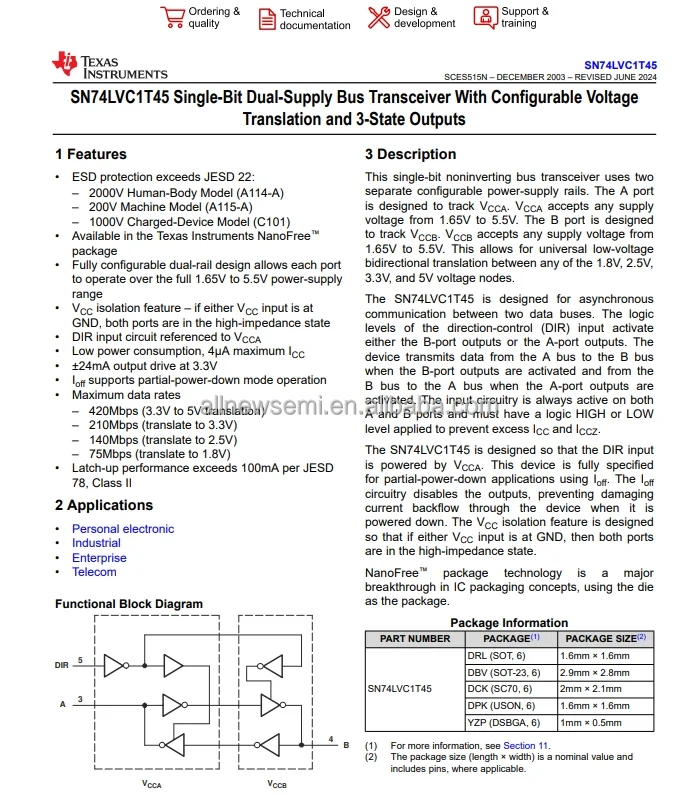

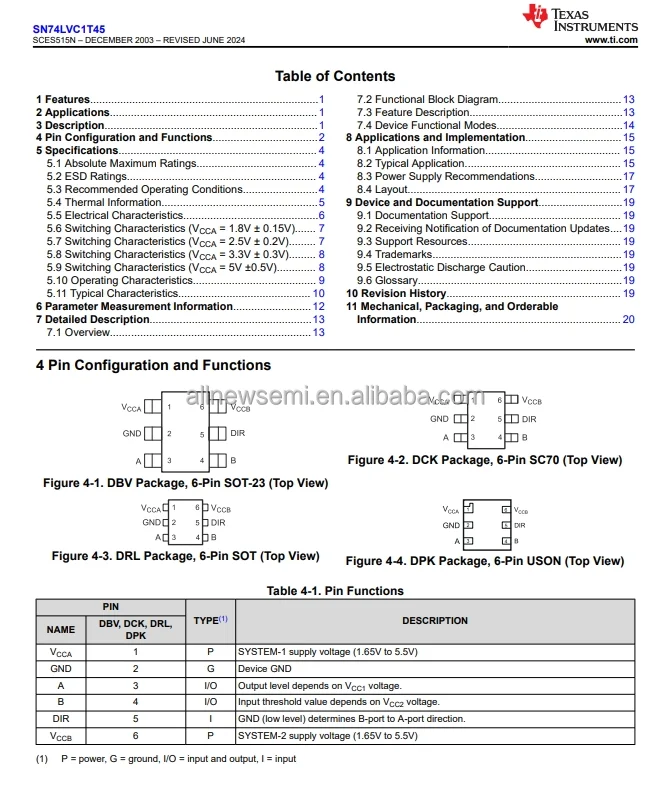

Product datasheet
For more information, please download
