Hot sale original electronics IC MC33063ADR IC REG BUCK BST ADJ 1.5A 8SOICBuck, Boost Switching Regulator

MC33063ADR

Model:MC33063ADR

Detail

Product Details


    MC33063ADR Description

The MC33063ADR is an inverting switching regulator designed to be used in the construction of simple DC-DC converters. To build converters in the boost, buck, and inverting topologies, the device just requires a few extra components. It has an oscillator frequency of up to 100kHz and an internal reference with an accuracy of 2%.


  MC33063ADR Features

  • Low standby current

  • Adjustable output voltage

  • Short-circuit current limiting


     MC33063ADR Applications

  • Portable Devices

  • Test & Measurement

  • Consumer Electronics

  • Communications & Networking

  • Computers & Computer Peripherals


Product Description


ANSC PART#

 ANSC- MC33063ADR

Part#

MC33063ADR

Type:

Integrated Circuits

Manufactor

Original

DC

new



   Product Attributes


TYPE

DESCRIPTION

Category

Integrated Circuits (ICs)

Power Management (PMIC)

Voltage Regulators - DC DC Switching Regulators

Mfr

Texas Instruments

Series

-

Packaging

Tape & Reel (TR)

Cut Tape (CT)

Part Status

Active

Function

Step-Up, Step-Down

Output Configuration

Positive or Negative

Topology

Buck, Boost

Output Type

Adjustable

Number of Outputs

1

Voltage - Input (Min)

3V

Voltage - Input (Max)

40V

Voltage - Output (Min/Fixed)

1.25V

Voltage - Output (Max)

40V (Switch)

Current - Output

1.5A (Switch)

Frequency - Switching

100kHz

Synchronous Rectifier

No

Operating Temperature

-40°C ~ 85°C (TA)

Mounting Type

Surface Mount

Package / Case

8-SOIC (0.154", 3.90mm Width)

Supplier Device Package

8-SOIC

Base Product Number

MC33063

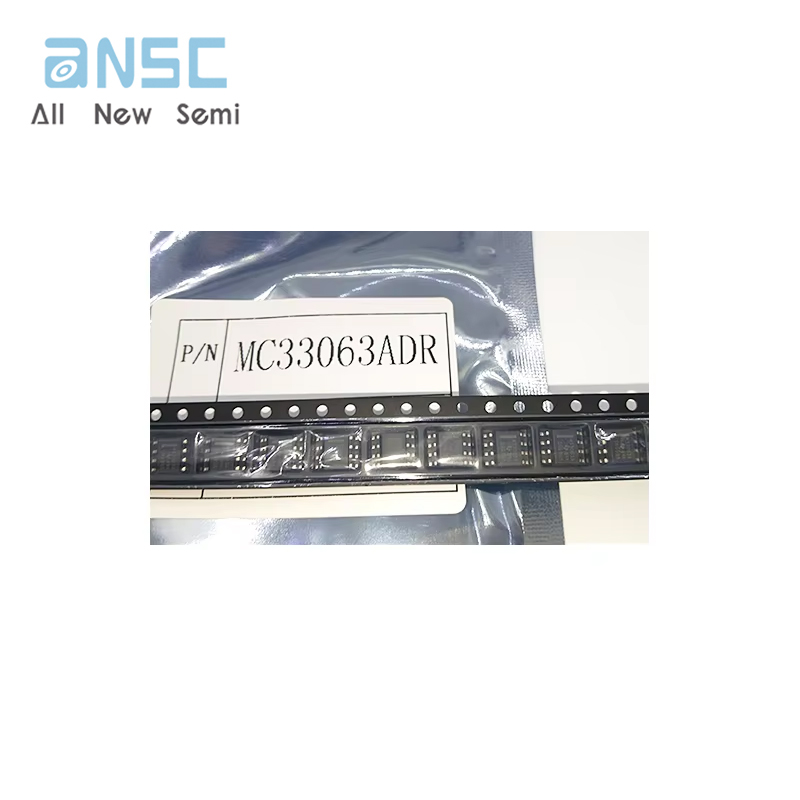

  Actual image of the product

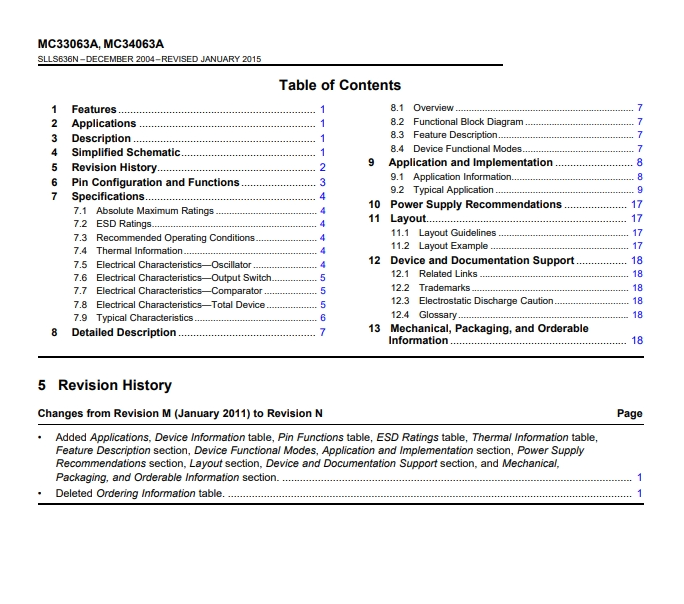

Product datasheet

For more information, please download
