Product Details
TL432AIDBZT Overview
There is a handy package TO-236-3, SC-59, SOT-23-3 used in this program.Shunt control is used to control the part as a voltage reference.An external package of Tape & Reel (TR) encloses the voltage reference ic.Terminations with various functions 3.Voltage measurements with a tolerance of ±1%.An analog IC THREE TERMINAL VOLTAGE REFERENCE is coupled to the voltage reference ic.The output voltage 36V is determined by test statistics.The output should be 1.Input can be entered on a Adjustable form.It contains 3 pins.The temperature should not rise above 260 during reflow soldering.Pins 3 are settled in the part.If you are designing a PCB that requires a high level of precision, Surface Mount is available.Within -40°C~85°C TA range of work.The search term "TL432" will return other relevant parts.The voltage reference ic cannot output more current than 100mA in this case.It is possible to communicate at high quality through 1 channels.The maximum output voltage of this voltage reference ic is 36V.Cathode currents should be 700μA in most cases.Its lowest output voltage is 2.495V.In view of the part's maximum input voltage of 37V, users are advised to confine the voltage accordingly.Could the voltage reference circuit contain Substances of Very High Concern (SVHC)?A voltage reference outputs a voltage of 36V regardless of external conditions.As shown in the record, the voltage reference circuit requires at least 2.495V voltage to run.
TL432AIDBZT Features
±1% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: 260
Channel Number: 1
Max Output Voltage: 37V
Reference Voltage: 36V
TL432AIDBZT Applications
There are a lot of Texas Instruments
TL432AIDBZT Voltage Reference applications.
Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
Industrial process control systems
Precision instruments
Notebook Computers
Cell Phones
Industrial Process Control
High-Resolution Analog-to-Digital
Product Description
Texas Instruments TL432AIDBZT
-40°C~85°C TA Adjustable 0.95mm PMIC TL432 1 Channel TO-236-3, SC-59, SOT-23-3
ANSC PART# | ANSC- TL432AIDBZT |
Part# | TL432AIDBZT |
Type： | Integrated Circuits(ICs) |
Manufactor | Texas Instruments |
DC | new |
Package / Case | SOT-23-3 |
Supplier Device Package | Tape & Reel (TR)Cut Tape (CT) |
Product Attributes
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Power Management (PMIC) Voltage Reference |
Manufacturer | Texas Instruments |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Reference Type | Shunt |
Output Type | Adjustable |
Voltage - Output (Min/Fixed) | 2.495V |
Voltage - Output (Max) | 36 V |
Current - Output | 100 mA |
Tolerance | ±1% |
Temperature Coefficient | - |
Noise - 0.1Hz to 10Hz | - |
Noise - 10Hz to 10kHz | - |
Voltage - Input | - |
Current - Supply | - |
Current - Cathode | 700 µA |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | TO-236-3, SC-59, SOT-23-3 |
Supplier Device Package | SOT-23-3 |
Base Product Number | TL432 |

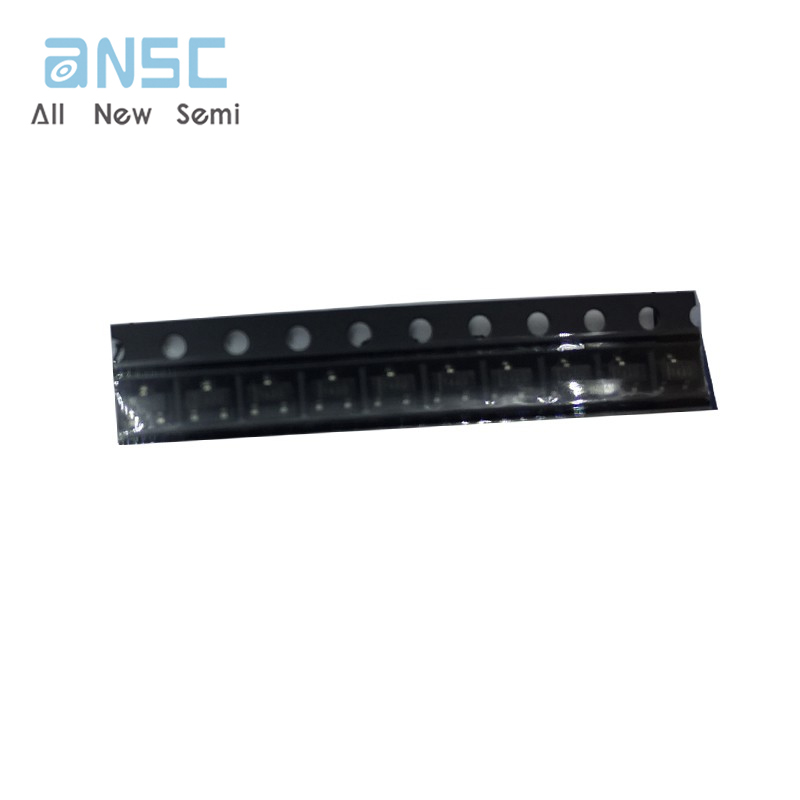

Actual image of the product

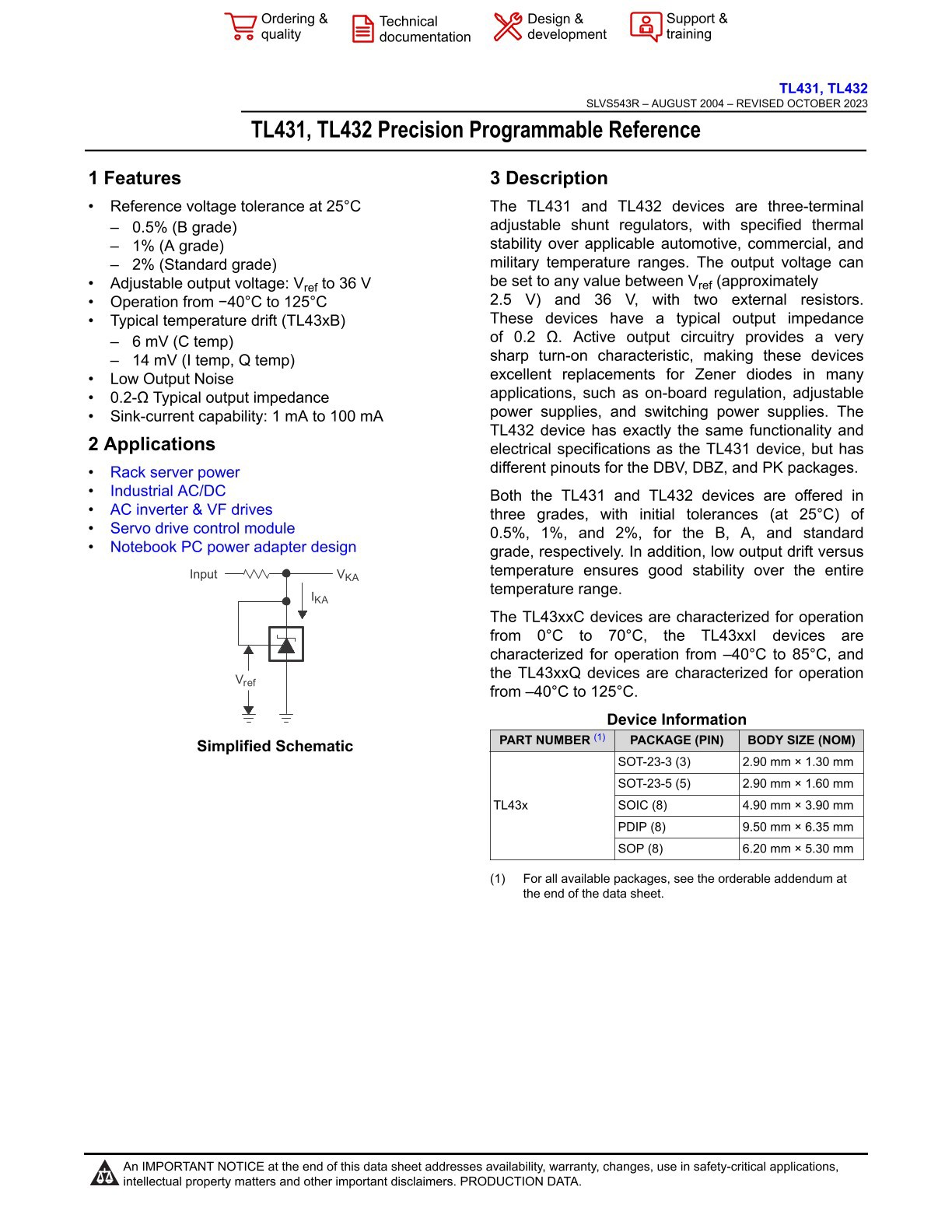

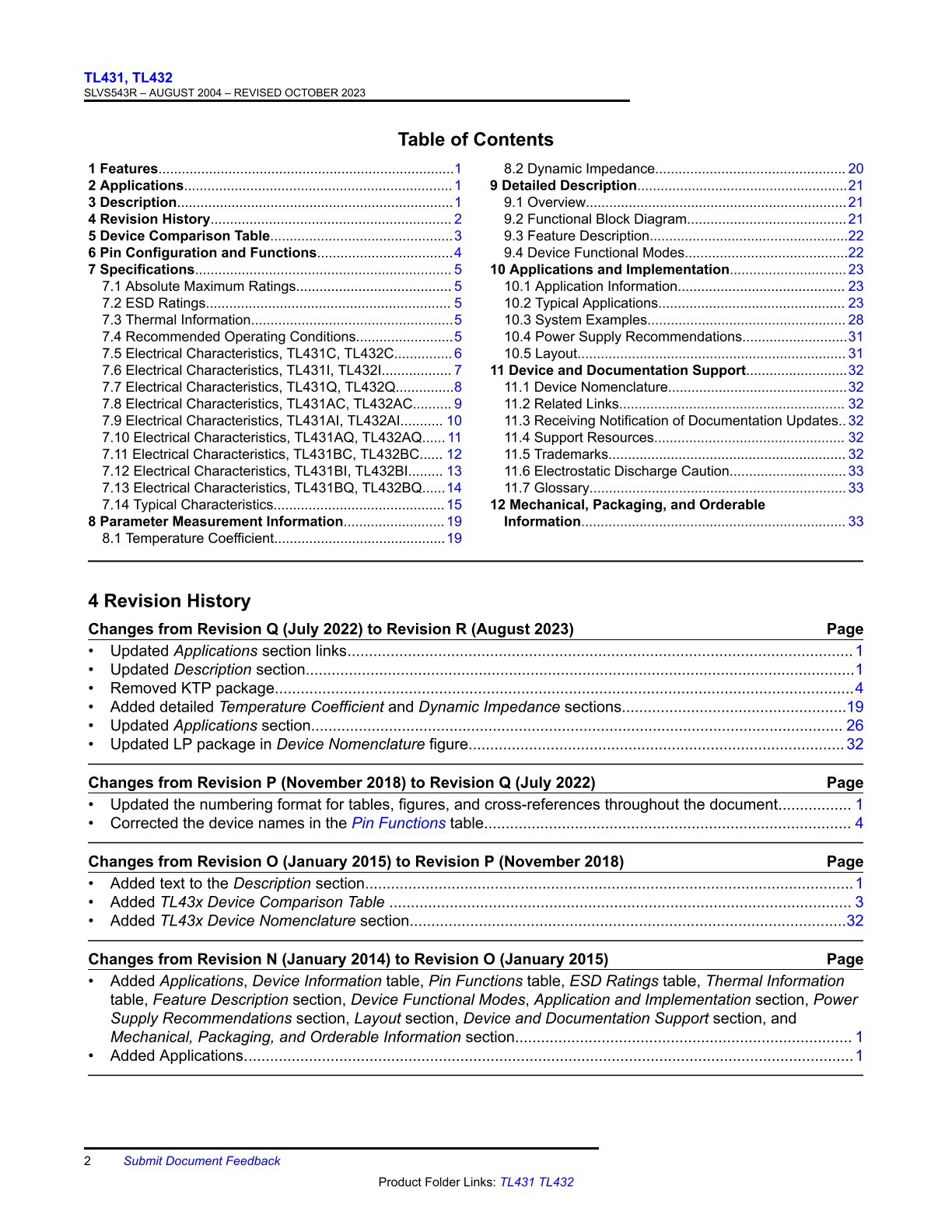

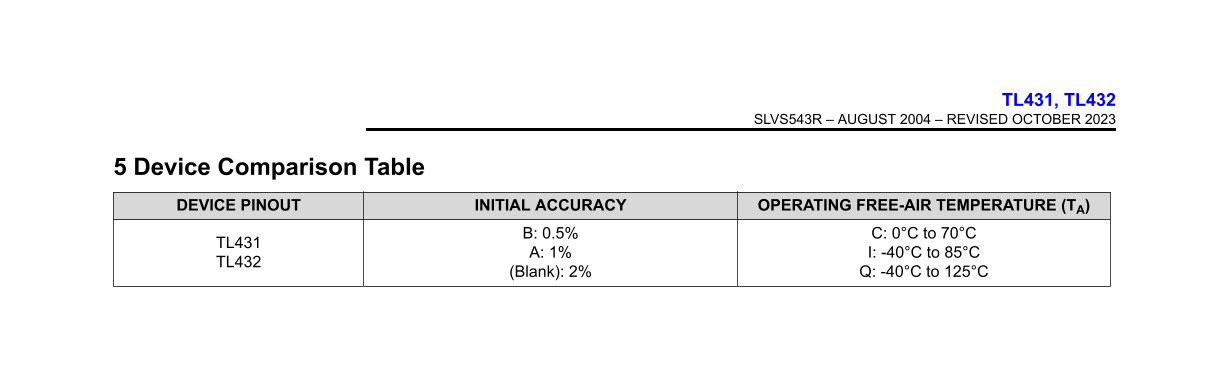

Product datasheet
