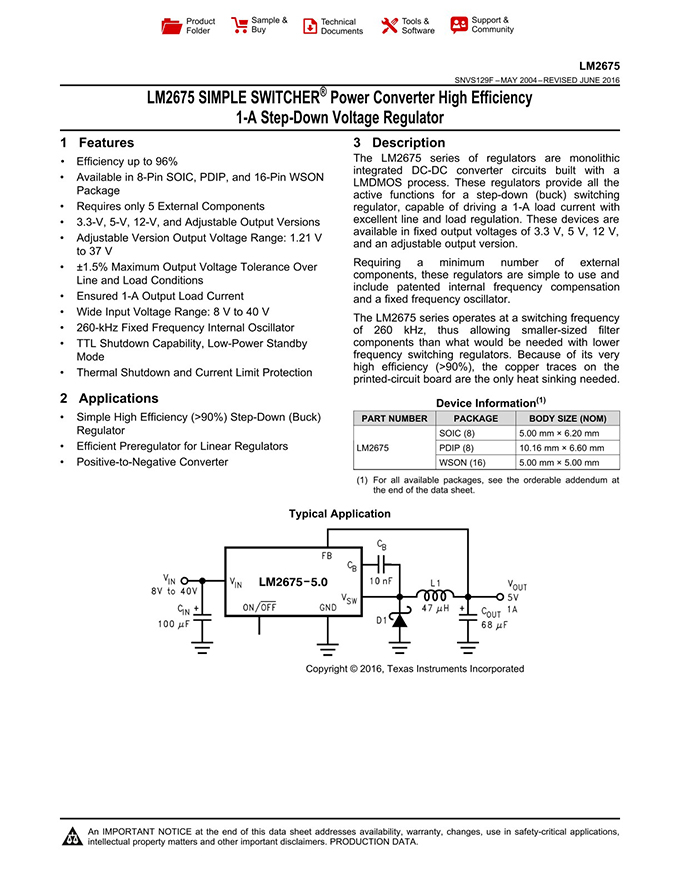

LM2675M-5.0 Description The LM2675 series of regulators are monolithic integrated DC-DC converter circuits built with a LMDMOS process. These regulators provide all the active functions for a step-down (buck) switching regulator, capable of driving a 1-A load current with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. LM2675M-5.0 Features • Efficiency up to 96% • Available in 8-Pin SOIC, PDIP, and 16-Pin WSON Package • Requires only 5 External Components • 3.3-V, 5-V, 12-V, and Adjustable Output Versions • Adjustable Version Output Voltage Range: 1.21 V to 37 V • ±1.5% Maximum Output Voltage Tolerance Over Line and Load Conditions • Ensured 1-A Output Load Current • Wide Input Voltage Range: 8 V to 40 V • 260-kHz Fixed Frequency Internal Oscillator • TTL Shutdown Capability, Low-Power Standby Mode • Thermal Shutdown and Current Limit Protection LM2675M-5.0 Applications • Simple High Efficiency (>90%) Step-Down (Buck) Regulator • Efficient Preregulator for Linear Regulators • Positive-to-Negative Converter |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- LM2675M-5.0 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Original |
| Series | SIMPLE SWITCHER庐 |
| Packaging | Tube |
| Part Status | Last Time Buy |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 6.5V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 1A |
| Frequency - Switching | 260kHz |
| Synchronous Rectifier | No |
| Operating Temperature |
-40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LM2675 |

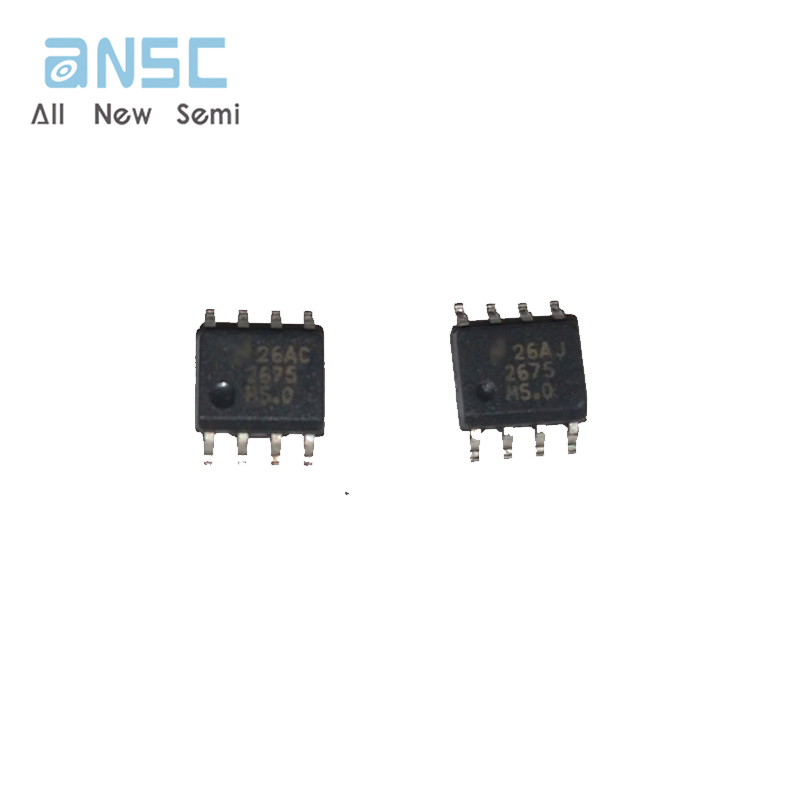

Actual image of the product
