Product Details
SN65LVDT348D Overview
With the enhanced 16-SOIC (0.154, 3.90mm Width) package, this driver IC is excellent for driving common LEDs.This receiver is mounted in the Tube package.Being a Receiver can transceiver, this part has empowered many solutions to serve for a variety of applications.You can place this wide receiver to any Surface Mount-type PCB or development board.With respect to the power supply, this differential driver uses 3V~3.6V.This electronic part can have up to 0/4 eligible receivers/drivers on the field at once. This ic receiver has been primarily designed for applications where the operating temperature is -40°C~85°C.This line driver ic can operate efficiently with a supply voltage range of 3.3V.For driving and receiving signals from data, this wide receiver has 16 terminations integrated.This transceiver is packaged with 16 market standard pinoutsAs the base part number 65LVDT348 identifies the product type, temperature, package, etc., you can try searching with it to get more variants of this part.This is a 16-pin driver IC with enhanced power dissipation control.Through optical transceiver downsizing and high-density Surface Mount mounting technologies, its package size is reduced dramatically.This transceiver module is designed to operate from an input voltage supply of 3.3V.This rf transceiver module can have up to 4 eligible receivers on the field at once. This integrating circuit is one of the 65LVDT series, representing an enhanced power-saving technique.
SN65LVDT348D Features
Tube package
16 pin count
16 pins
65LVDT series
SN65LVDT348D Applications
There are a lot of Texas Instruments
SN65LVDT348D Drivers/Receivers/Transceivers applications.
Televisions
Cell phones
Wireless modems
Remote controls
Wireless network systems
Satellite communications networks
Ethernet circuitry
Wired telephone
Cordless telephone
Desktop PC
Product Description
ANSC PART# | ANSC- SN65LVDT348D |
Part# | SN65LVDT348D |
Type： | Integrated Circuits |
Manufactor | Texas Instruments |
DC | new |

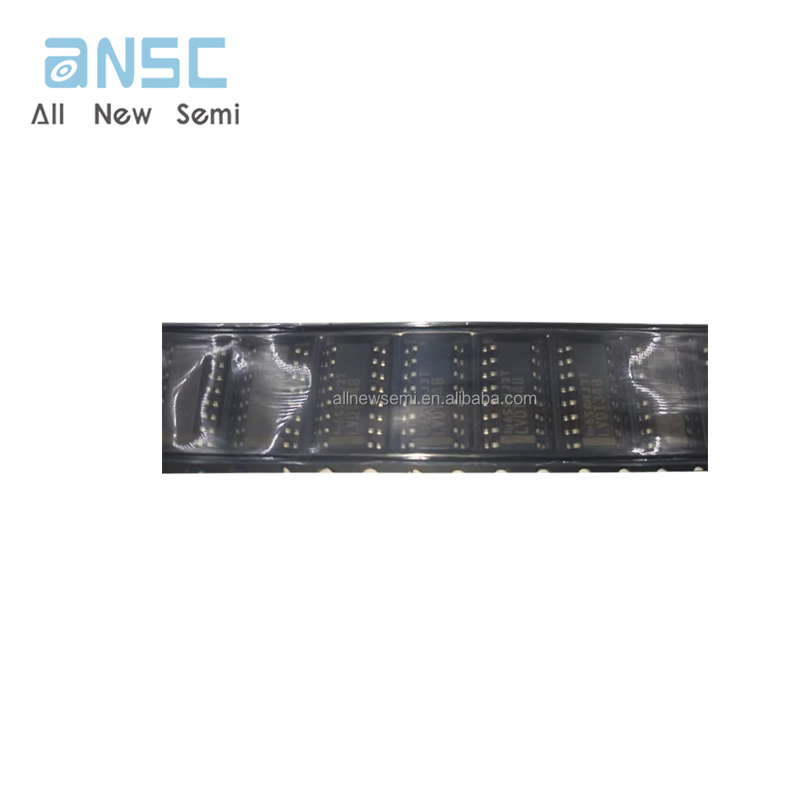

Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Interface Drivers, Receivers, Transceivers |
Manufacturer | Texas Instruments |
Series | 65LVDT |
Packaging | Tube |
Part Status | Active |
Type | Receiver |
Protocol | LVDS |
Number of Drivers/Receivers | 0/4 |
Duplex | - |
Receiver Hysteresis | 50 mV |
Data Rate | 560Mbps |
Voltage - Supply | 3V ~ 3.6V |
Operating Temperature | -40°C ~ 85°C |
Mounting Type | Surface Mount |
Package / Case | 16-SOIC (0.154", 3.90mm Width) |
Supplier Device Package | 16-SOIC |
Base Product Number | 65LVDT348 |

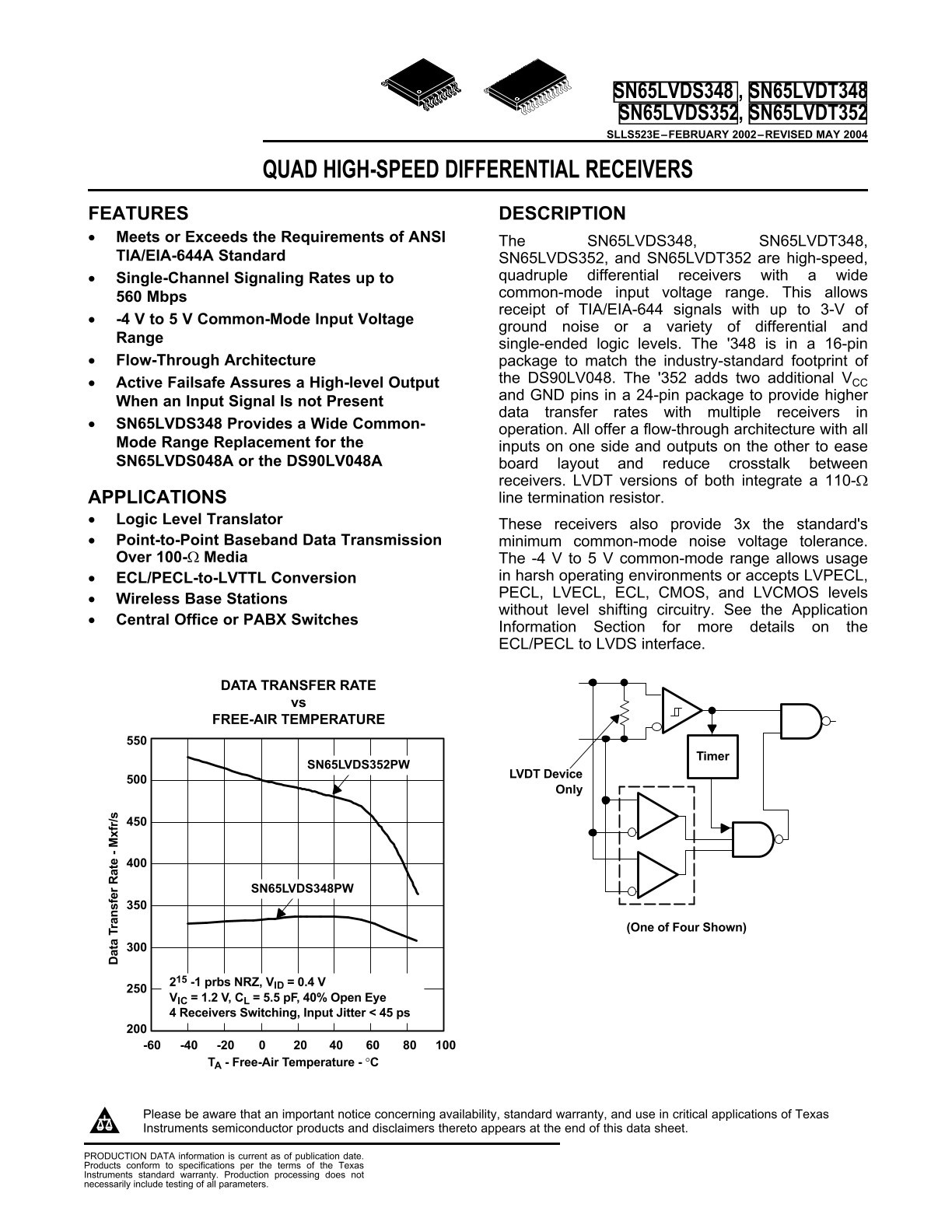

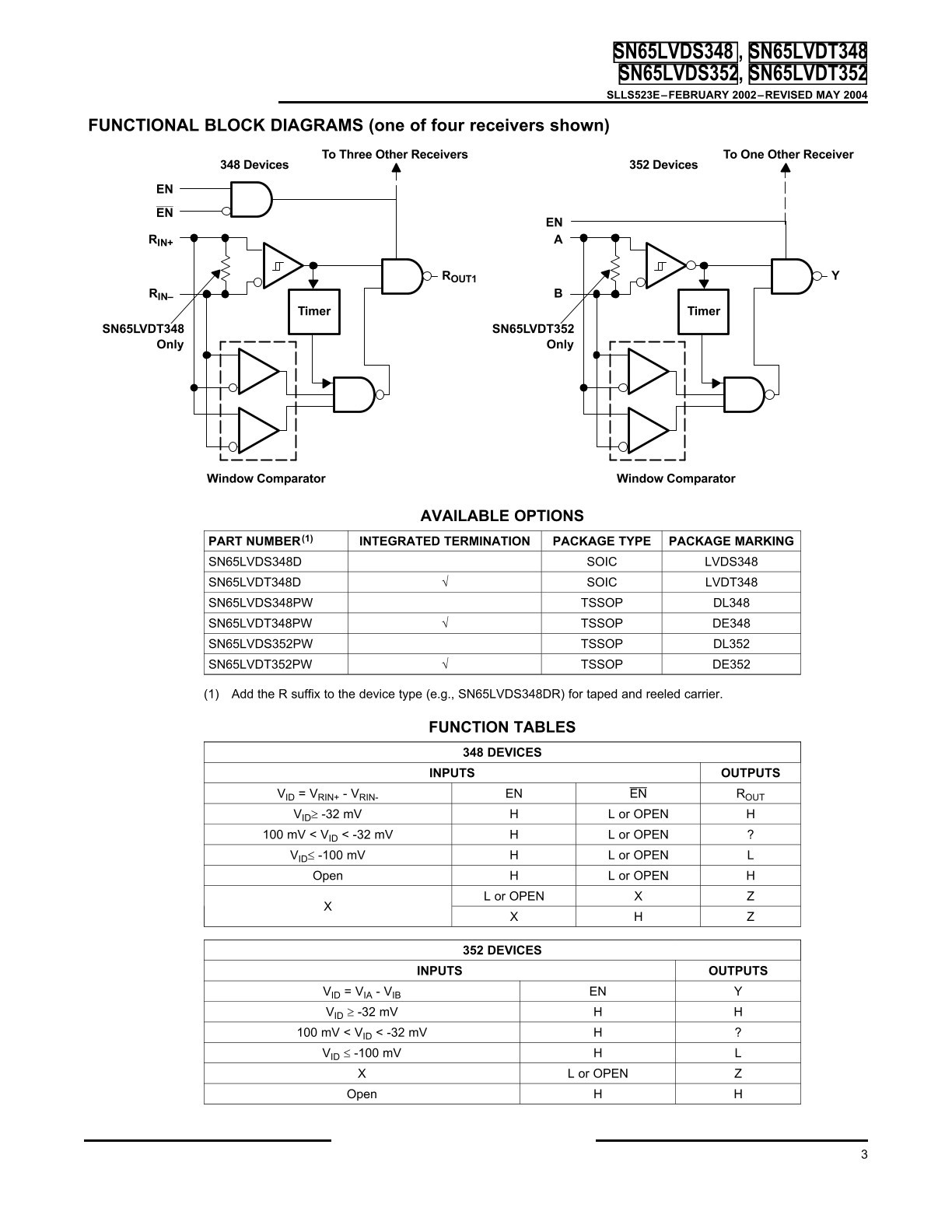

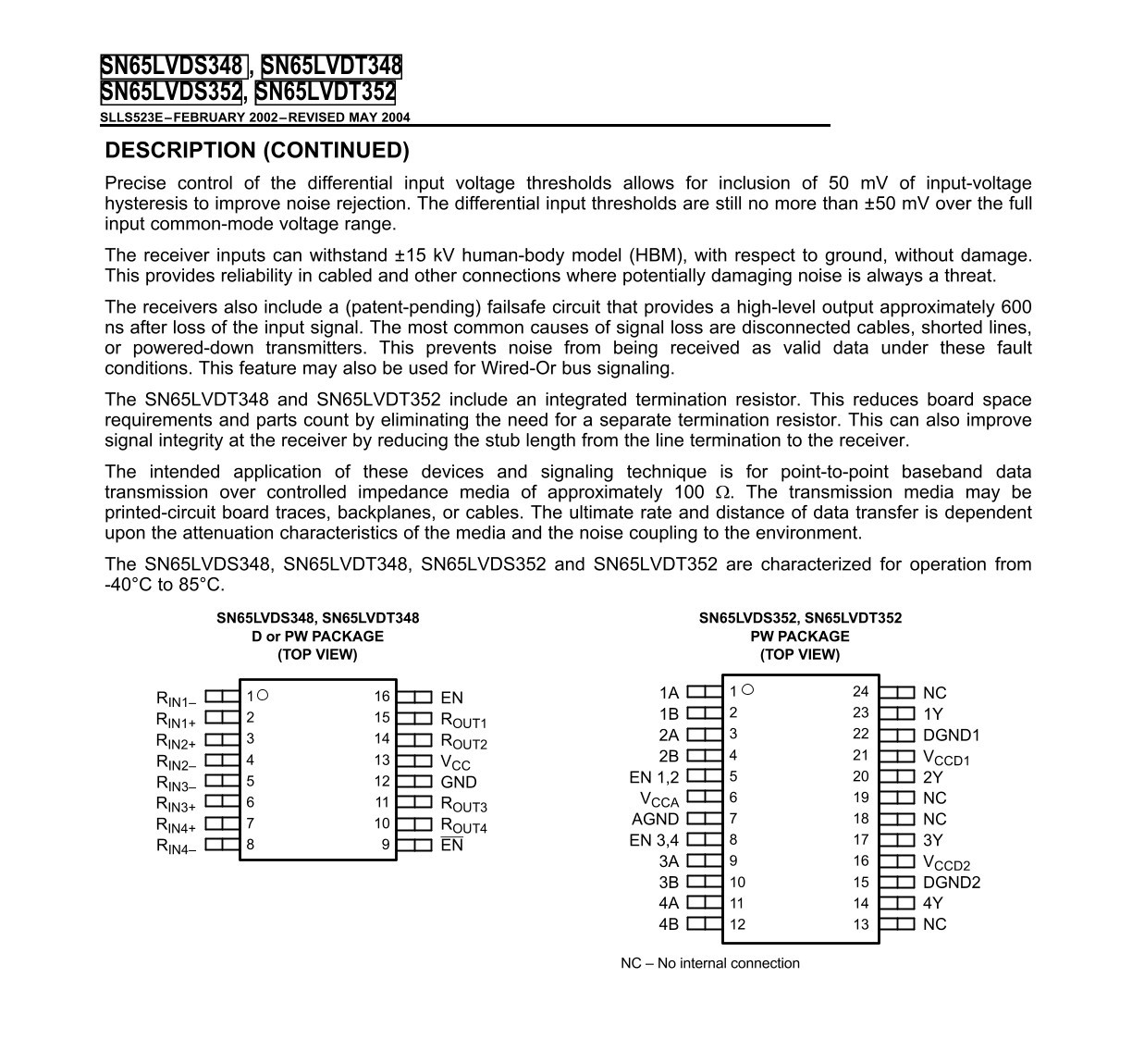

Product datasheet
