Product Details
Description
The TPS51200DRCT is a sink/source Double Data Rate (DDR) Termination Regulator, specifically designed for low input voltage, low-noise systems where space is a key consideration. The TPS51200DRCT maintains a fast transient response and only requires a minimum output capacitance of 20µF. The TPS51200DRCT supports a remote sensing function and all power requirements for DDR, DDR2, DDR3 and low power DDR3/DDR4 VTT bus termination. In addition, the TPS51200DRCT provides an open-drain PGOOD signal to monitor the output regulation and an EN signal that can be used to discharge VTT during S3 (suspend to RAM) for DDR applications.
Features
1.1 to 3.5V VLDOIN Voltage range
Sink/source termination regulator includes droop compensation
Requires minimum output capacitance of 20µF (typically 3 x 10µF MLCCs)
PGOOD to monitor output regulation
EN Input
REFIN Input allows for flexible input tracking either directly or through resistor divider
Remote sensing (VOSNS)
±10mA Buffered reference (REFOUT)
Built-in soft start, UVLO and OCL
Thermal shutdown
Meets DDR, DDR2 JEDEC specifications, supports DDR3 and low-power DDR3/DDR4 VTT applications
Application
Power Management
Computers & Computer Peripherals
Communications & Networking
Consumer Electronics
Product Description
ANSC PART# | ANSC- TPS51200DRCT |
Part# | TPS51200DRCT |
Type： | Integrated Circuits |
Manufactor | Texas Instruments |
DC | new |

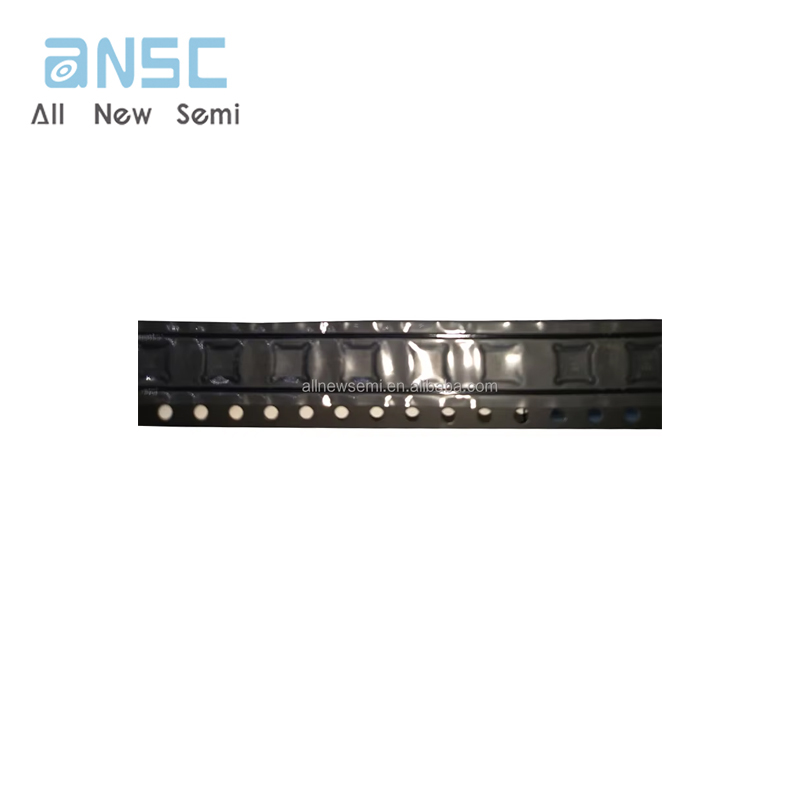

Actual image of the product
Product Attributes
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Power Management (PMIC) Special Purpose Regulators |
Manufacturer | Texas Instruments |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Applications | Converter, DDR |
Voltage - Input | 2.38V ~ 3.5V |
Number of Outputs | 1 |
Voltage - Output | - |
Operating Temperature | -40°C ~ 85°C |
Mounting Type | Surface Mount |
Package / Case | 10-VFDFN Exposed Pad |
Supplier Device Package | 10-VSON (3x3) |
Base Product Number | TPS51200 |

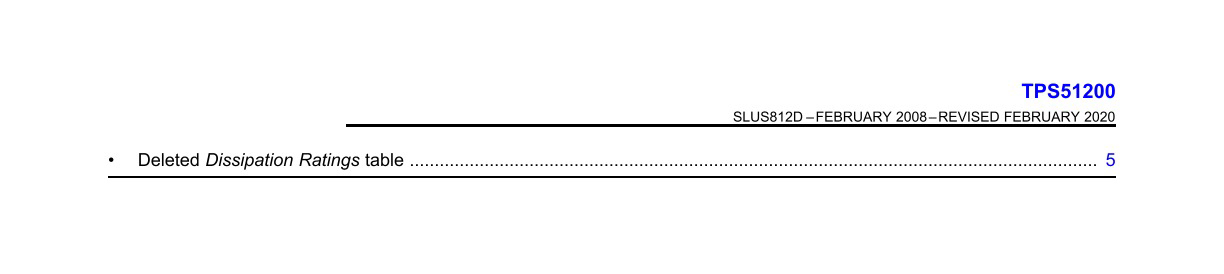

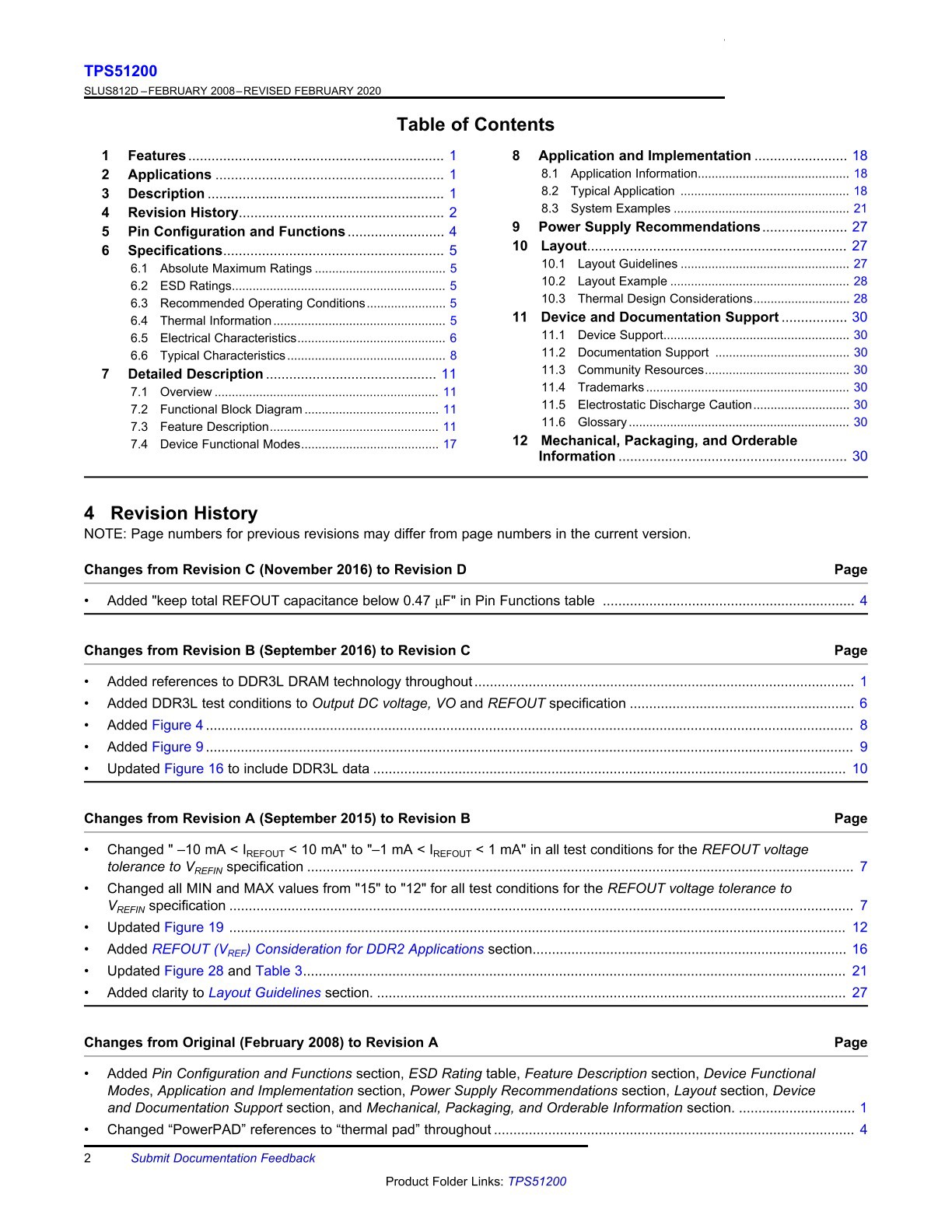

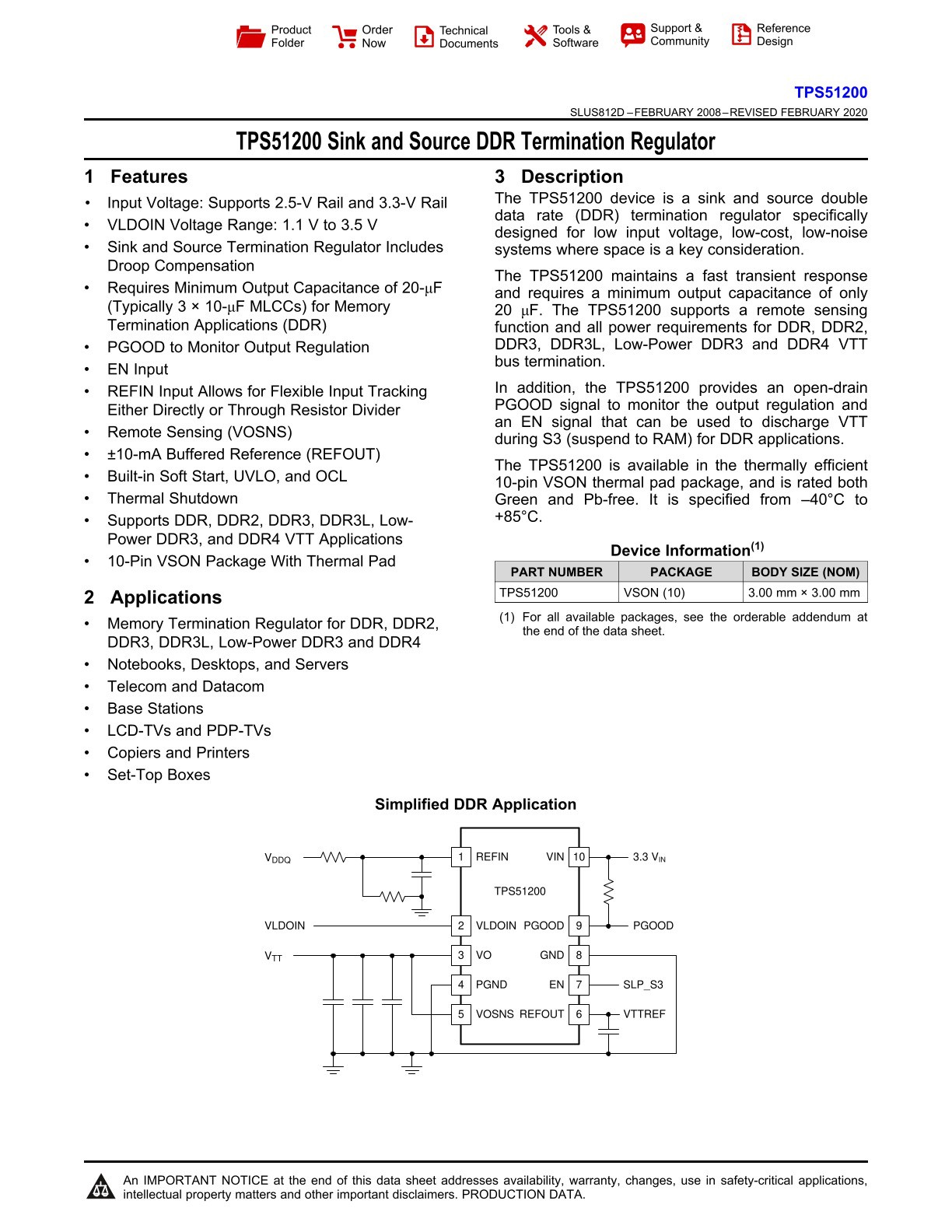

Product datasheet
For more information, please download
