SN74HC04N Overview
Shipping overseas is convenient with the part packed in 14-DIP (0.300, 7.62mm). High reliability is provided by advanced packaging method Tube. Based on the Inverter logic principle, it works. A voltage of 2V~6V is required for the part to function properly. Increasing operating temperature to around -40°C~85°C. In Through Hole, the part is mounted. There is 5.2mA 5.2mA output current in the high or low states. The 74HC series contains it. Total terminations are 14. User experience is significantly enhanced by the part's 6 functions. The chip is a part of HC/UH. Try searching with 74HC04 if you're looking for device variants. The part body is injected with 14 pins. This logic device is widely used in a wide variety of applications because it is Through Hole mounted. For functions related to 14 pins, please refer to the datasheets. The part has 2μA current flowing through it in the quiescent state. 50pF is the load capacitance of the part. 6V is the maximum supply voltage (Vsup). There is 5.2mA output current rated for the device. This chip has a 5V volt operating supply voltage. High-quality logic output is provided by the part's 6 channels.
SN74HC04N Features
Inverter Logic Type
Operating Temperature: -40°C~85°C
HC/UH Family
Quiescent Current: 2μA
Output Current: 5.2mA
SN74HC04N Applications
There are a lot of Texas Instruments
SN74HC04N Gates and Inverters applications.
Home theater
Electric grinding wheel
Electrical tools
Sewing machine
DVD
VCD
Computer
Television
Washing machine
Range hood
Product Description
ANSC PART# | ANSC- SN74HC04N |
Part# | SN74HC04N |
Type： | Integrated Circuits |
Manufactor | Texas Instruments |
DC | new |
Actual image of the product
Product Attributes
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Logic Gates and Inverters |
Mfr | Texas Instruments |
Series | 74HC |
Packaging | Tube |
Part Status | Active |
Logic Type | Inverter |
Number of Circuits | 6 |
Number of Inputs | 1 |
Features | - |
Voltage - Supply | 2V ~ 6V |
Current - Quiescent (Max) | 2 µA |
Current - Output High, Low | 5.2mA, 5.2mA |
Input Logic Level - Low | 0.5V ~ 1.8V |
Input Logic Level - High | 1.5V ~ 4.2V |
Max Propagation Delay @ V, Max CL | 16ns @ 6V, 50pF |
Operating Temperature | -40°C ~ 85°C |
Mounting Type | Through Hole |
Supplier Device Package | 14-PDIP |
Package / Case | 14-DIP (0.300", 7.62mm) |
Base Product Number | 74HC04 |

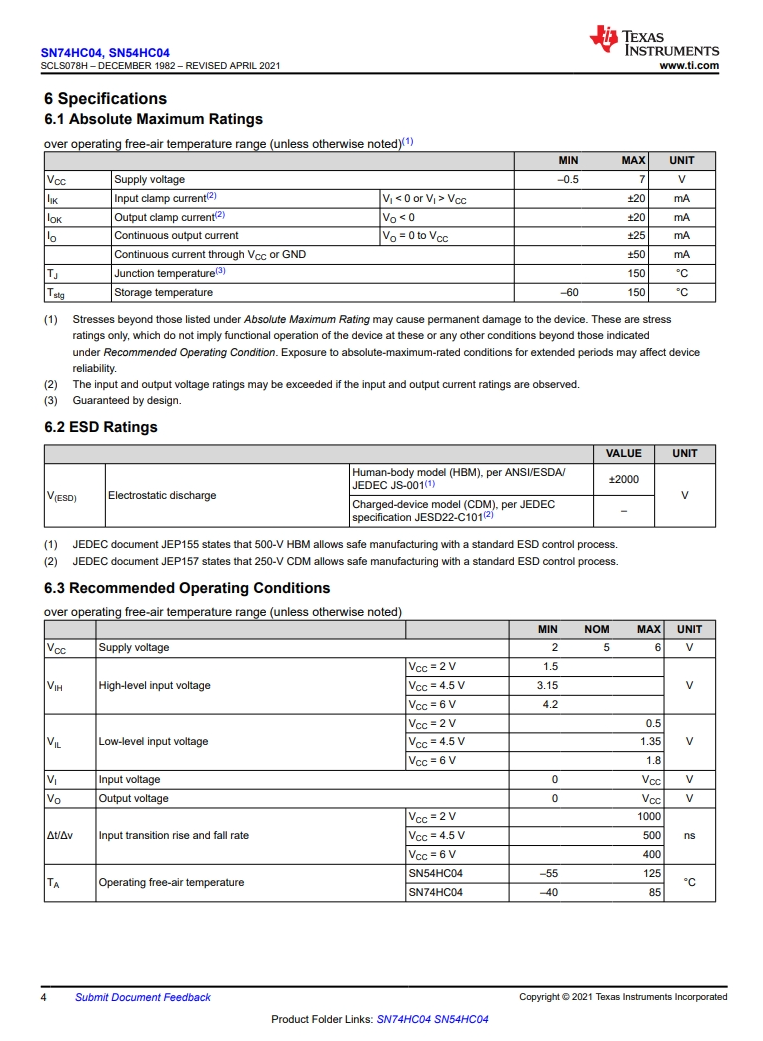

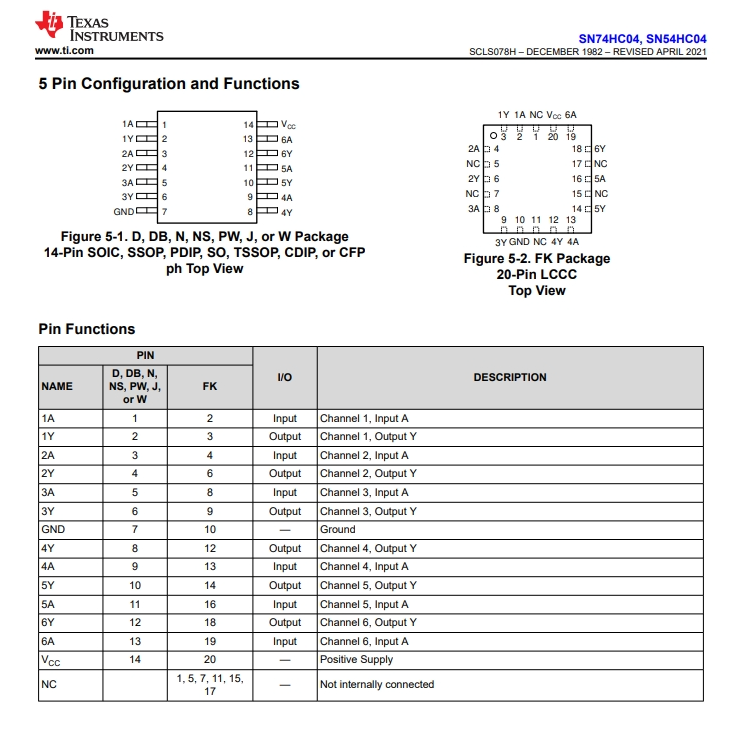

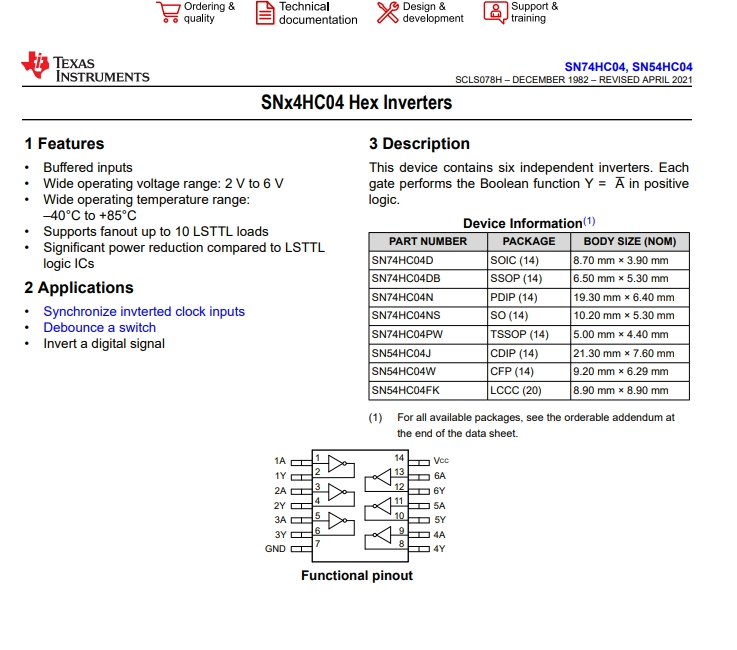

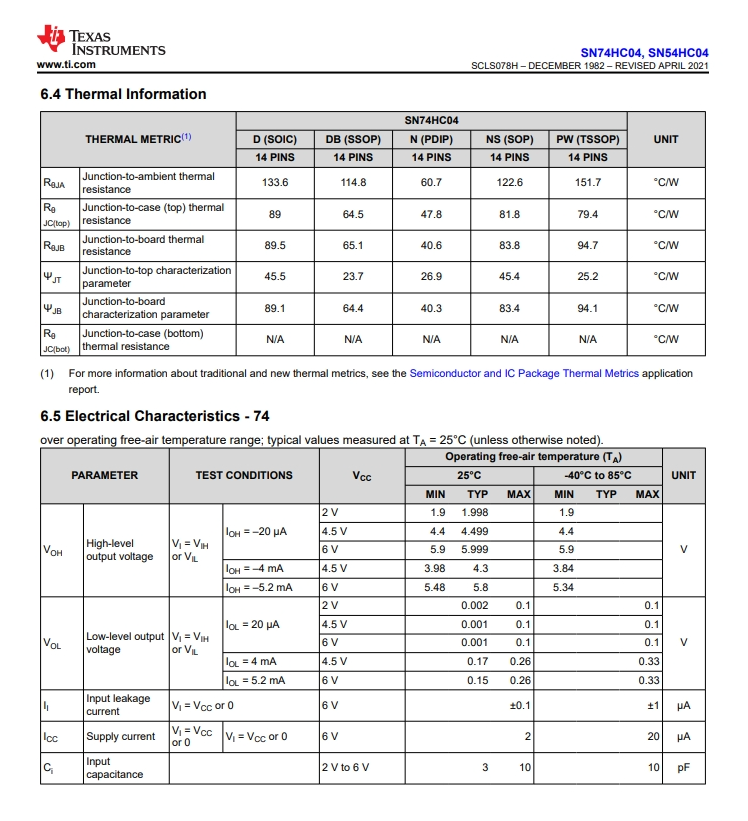

Product datasheet
