Product Overview
It's packaged in the way of a Tube.It's included in the 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) Exposed Pad package.The mounting type of the LED driver is Surface Mount.It owns General Purpose switch type.The temperature should be set to -40°C~105°C TJ to ensure reliable functioning.By default, it is set to output 1.It uses a supply voltage of Not Required to operate.It has a maximum output voltage of N-Channel volts.The lighting driver has Status Flag features.It belongs to the TPS2069 family.There are 8 terminations in it.8 pins are used for operation.There are 1 functions of the LED driver.With a supply voltage of 3.3V, high efficiency is possible.It is positioned in the direction of Surface Mount.It is equipped with a total of 8 pins.The LED driver has 125mOhm resistance.The output current is set to 1.5A in this case.The supply voltage (Vsup) should be kept above 2.7V for normal operation.This gadget uses an analog IC, which is POWER SUPPLY SUPPORT CIRCUIT in this case.There are a total of 1 channels to choose from.UNDERVOLTAGE LOCKOUT can also be produced by using this LED driver.Its maximum supply current for operation is 0.07mA.
Product Features
Supplied from 3.3V
Resistance of 125mOhm
1 channels
Additional features like UNDERVOLTAGE LOCKOUT
Product Applications
Smartphone and PDA
Portable GPS Device
Set-top-box
USB Power Distribution
Notebook PC
Telecom and Network Systems
PC Card Hot Swap
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
Product Description
TYPE | DESCRIPTION |
|---|---|
ANSC PART# | ANSC - TPS2069DGN |
Category | Integrated Circuits (ICs) Power Management (PMIC) Power Distribution Switches, Load Drivers |
Mfr | Original |
Series | - |
Packaging | Tube |
Part Status | Active |
Switch Type | General Purpose |
Number of Outputs | 1 |
Ratio - Input:Output | 1:1 |
Output Configuration | High Side |
Output Type | N-Channel |
Interface | On/Off |
Voltage - Load | 2.7V ~ 5.5V |
Voltage - Supply (Vcc/Vdd) | Not Required |
Current - Output (Max) | 1.5A |
Rds On (Typ) | 70mOhm |
Input Type | Non-Inverting |
Features | Status Flag |
Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
Operating Temperature | -40°C ~ 105°C (TJ) |
Mounting Type | Surface Mount |
Supplier Device Package | 8-HVSSOP |
Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
Base Product Number | TPS2069 |

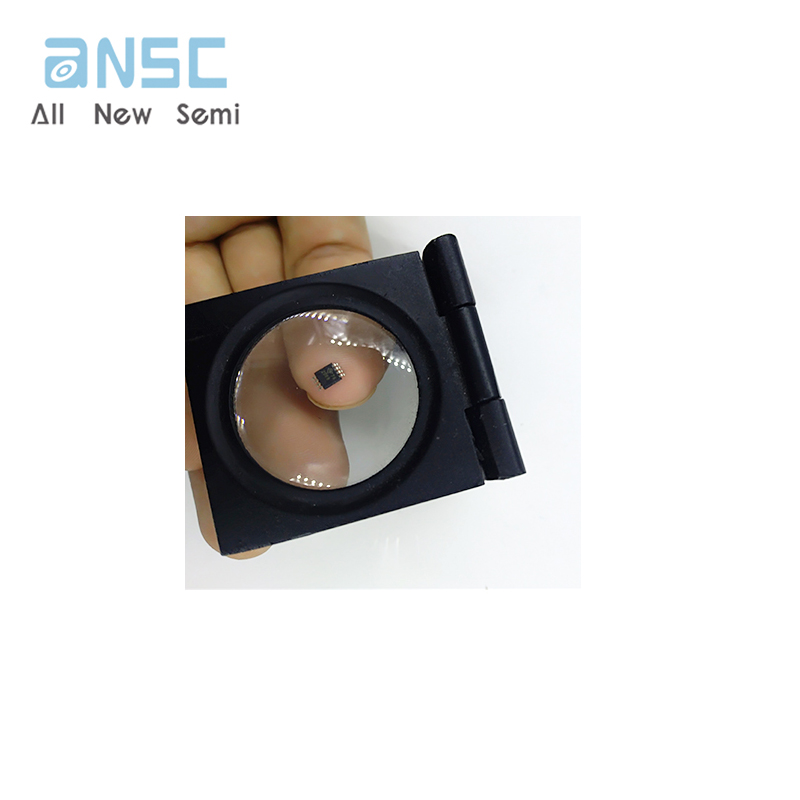

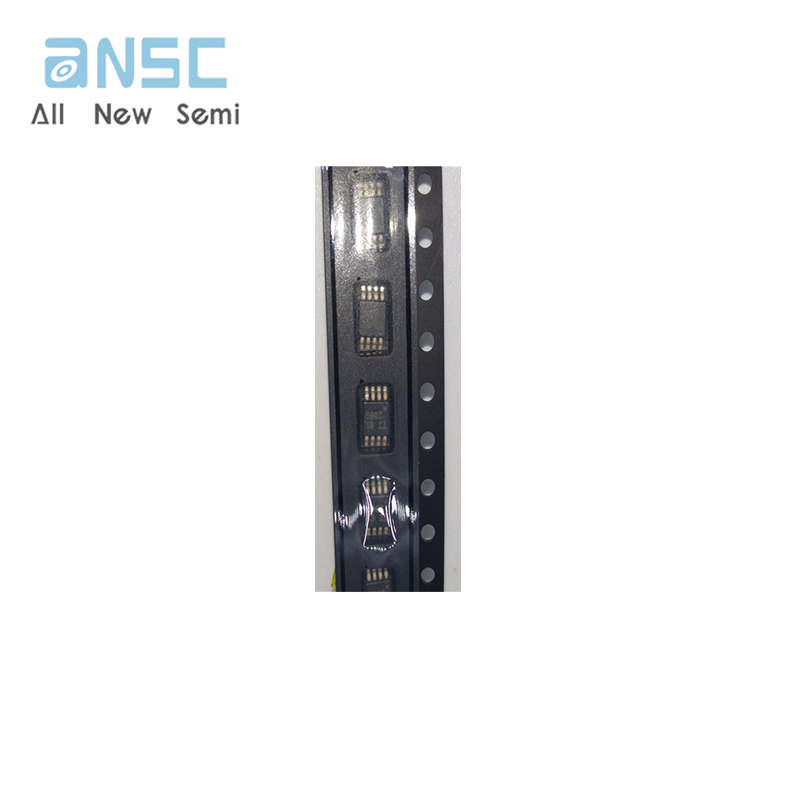

Actual image of the product

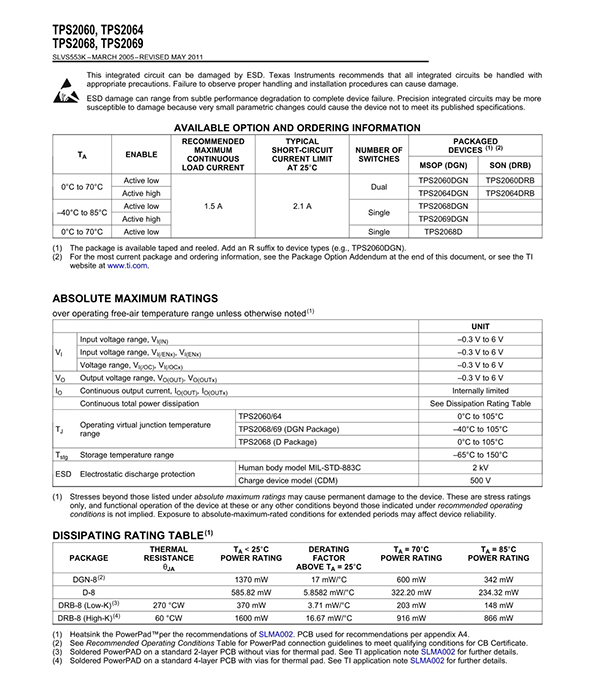

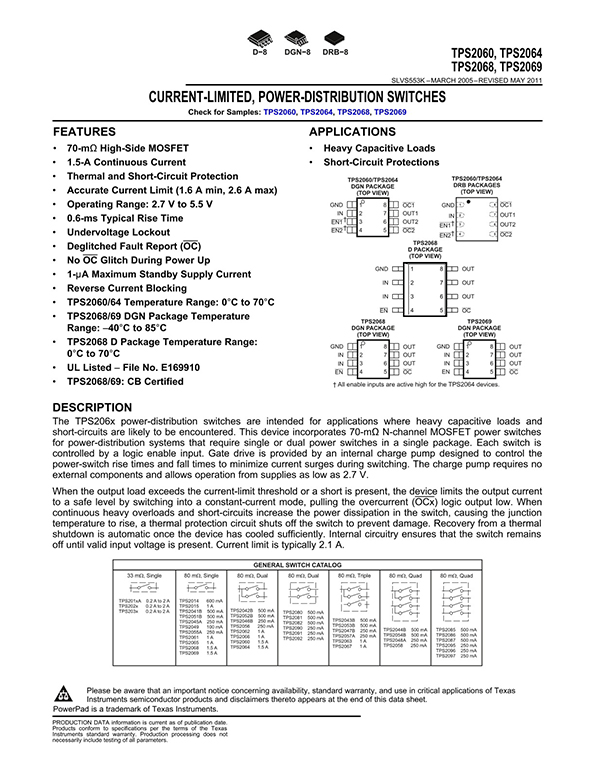

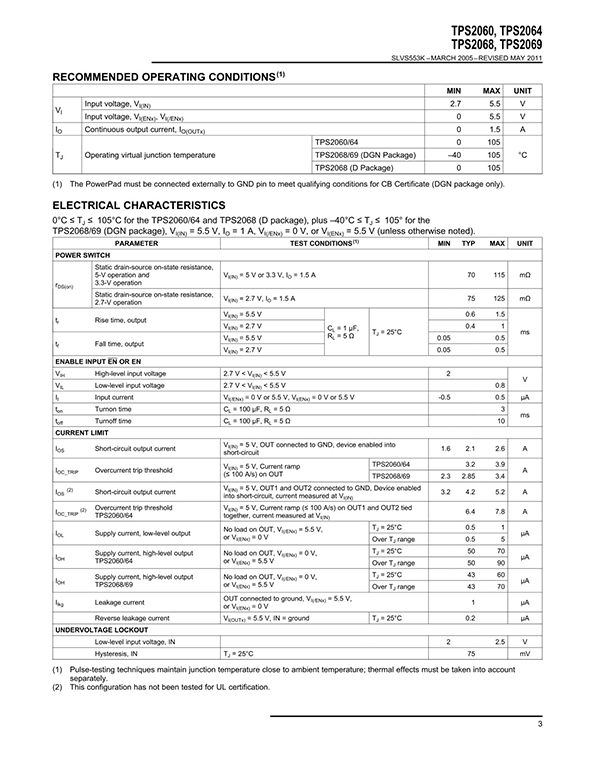

Product datasheet
For more information, please download
