Product Details
AD8021AR Overview
In the package, you will find a 8-SOIC (0.154, 3.90mm Width)-case to contain the op amp ic. The instrumentation amplifier in this picture is of the Voltage Feedback-type. A Tube case is used for delivering the op amp. During the past two weeks, there have been close to 8 terminations. A total of 8 pins are located on this board. The op amp ic has an array of 8 pins on it. Op amp rates 1mV as input offset voltage. For this electrical component, Surface Mount is the recommended mounting type. According to the manufacturer, this buffer op amp works well at -40°C~85°C , which is a good operating temperature. Using an 7.7mA supply current, this operational amplifier ics can be operated. You should keep the voltage gain at 76dB for the time being. On the buffer amps, there are 1 channels that can be used. The operating supply voltage of the buffer op amp is rated at 10V. The current is quiescent at 7.7mA. Using the VIDEO AMPLIFIER column, it is possible to sort by the consumer IC type of the electronic ic chip.
AD8021AR Features
8 Pins
76dB voltage gain
AD8021AR Applications
There are a lot of Analog Devices Inc.
AD8021AR Instrumentational OP Amps applications.
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video computer boards
Product Description
ANSC PART# | ANSC- AD8021AR |
Part# | AD8021AR |
Type： | Integrated Circuits |
Manufactor | ADI |
DC | new |

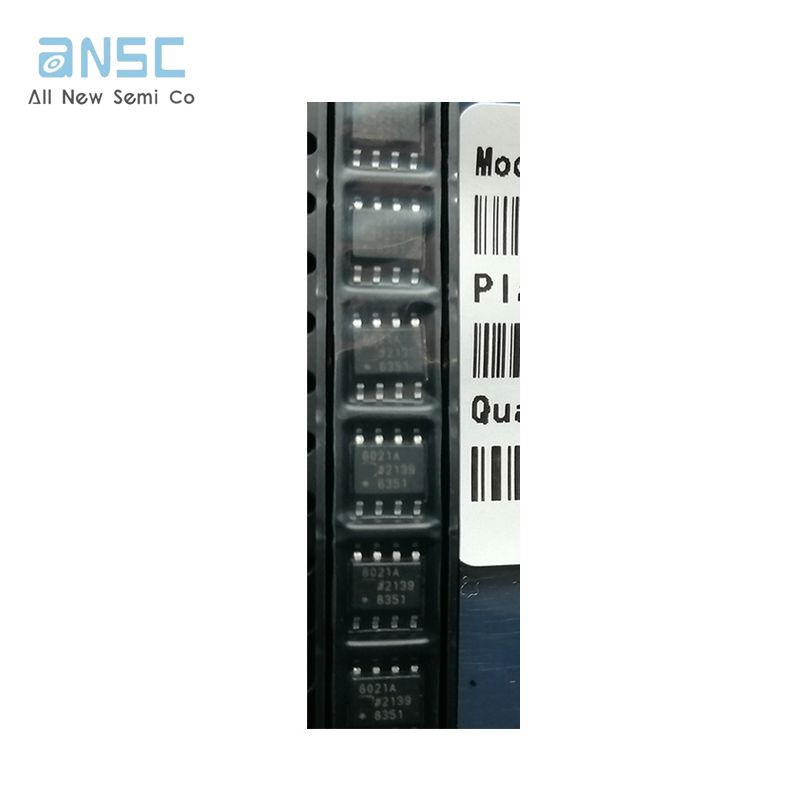

Actual image of the product
Type | Description |
|---|---|
Category | Integrated Circuits (ICs) Linear Amplifiers Instrumentation, Op Amps, Buffer Amps |
Mfr | Analog Devices Inc. |
Series | - |
Packaging | Tube |
Part Status | Obsolete |
Amplifier Type | Voltage Feedback |
Number of Circuits | 1 |
Output Type | - |
Slew Rate | 460V/µs |
-3db Bandwidth | 560 MHz |
Current - Input Bias | 7.5 µA |
Voltage - Input Offset | 400 µV |
Current - Supply | 7.8mA |
Current - Output / Channel | 70 mA |
Voltage - Supply Span (Min) | 4.5 V |
Voltage - Supply Span (Max) | 24 V |
Operating Temperature | -40°C ~ 85°C |
Mounting Type | Surface Mount |
Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Supplier Device Package | 8-SOIC |
Base Product Number | AD8021 |
Product datasheet
For more information, please download
