Product Details
| General Description The ICS8530-01 is a low skew, 1-to-16 Differential-to-3.3V LVPECL Fanout Buffer. The CLK, nCLK pair can accept most standard differential input levels. The high gain differential amplifier accepts peak-to-peak input voltages as small as 150mV as long as the common mode voltage is within the specified minimum and maximum range. Features • Sixteen differential 3.3V LVPECL outputs • CLK, nCLK input pair • CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, HCSL, SSTL • Maximum output frequency: 500MHz • Translates any single-ended input signal to 3.3V LVPECL levels with a resistor bias on nCLK input • Output skew: 75ps (maximum) • Part-to-part skew: 305ps (maximum) • Additive phase jitter, RMS: 0.03ps (typical) • Full 3.3V supply voltage • 0°C to 70°C ambient operating temperature • Available in both standard (RoHS 5) and lead-free (RoHS 6) packages |
Product Description
| Type | Description |
| ANSC PART# | ANSC - 8530FY-01LF |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Buffers, Drivers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tray |
| Part Status | Obsolete |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:16 |
| Differential - Input:Output | Yes/Yes |
| Input | HCSL, LVDS, LVHSTL, LVPECL, SSTL |
| Output | LVPECL |
| Frequency - Max | 500 MHz |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-TQFP (7x7) |

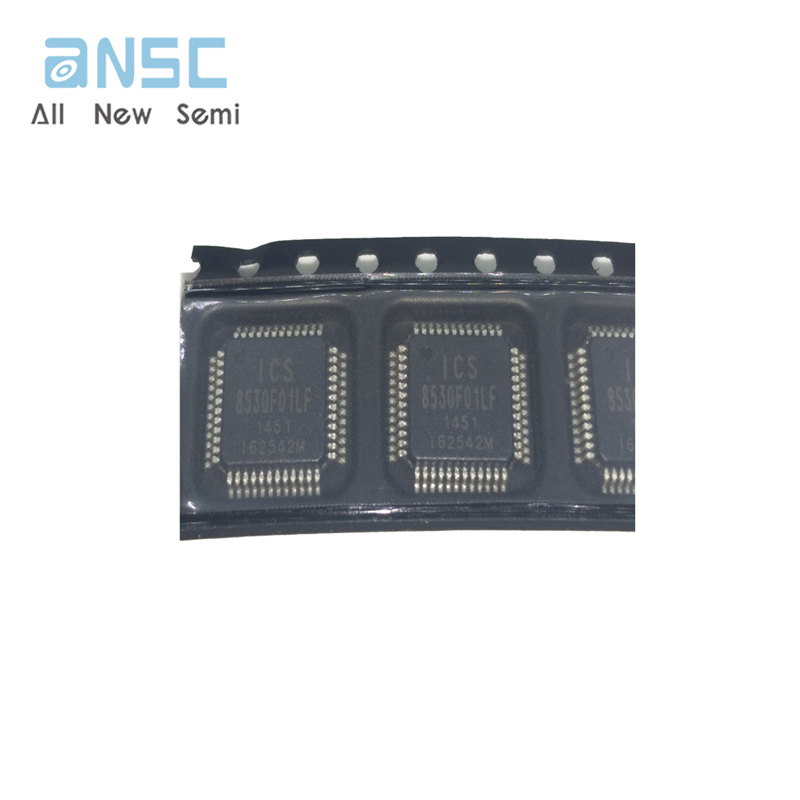

Product Photos
