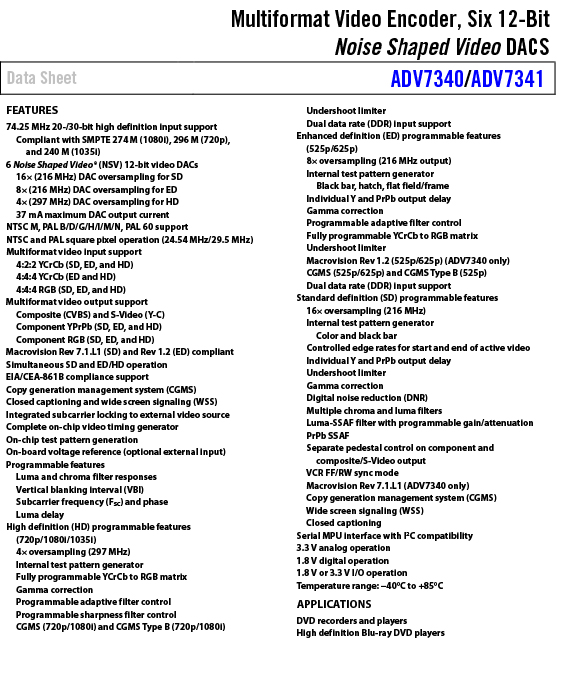

| FEATURES 74.25 MHz 20-/30-bit high definition input support Compliant with SMPTE 274 M (1080i), 296 M (720p), and 240 M (1035i) 6 Noise Shaped Video(NSV)12-bit video DACs 16× (216 MHz) DAC oversampling for SD 8× (216 MHz) DAC oversampling for ED 4× (297 MHz) DAC oversampling for HD 37 mA maximum DAC output current NTSC M, PAL B/D/G/H/I/M/N, PAL 60 support NTSC and PAL square pixel operation (24.54 MHz/29.5 MHz) Multiformat video input support 4:2:2 YCrCb (SD, ED, and HD) 4:4:4 YCrCb (ED and HD) 4:4:4 RGB (SD, ED, and HD) Multiformat video output support Composite (CVBS) and S-Video (Y/C) Component YPrPb (SD, ED, and HD) Component RGB (SD, ED, and HD) Macrovision® Rev 7.1.L1 (SD) and Rev 1.2 (ED) compliant Simultaneous SD and ED/HD operation EIA/CEA-861B compliance support Programmable features Luma and chroma filter responses Vertical blanking interval (VBI) Subcarrier frequency (FSC) and phase Luma delay Copy generation management system (CGMS) Closed captioning and wide screen signaling (WSS) Integrated subcarrier locking to external video source Complete on-chip video timing generator On-chip test pattern generation On-board voltage reference (optional external input) Serial MPU interface with dual I2C® and SPI® compatibility 3.3 V analog operation 1.8 V digital operation 3.3 V I/O operation Temperature range: −40°C to +85°C |
Product Description
| Type | Description |
| ANSC PART# | ANSC-ADV7341BSTZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Encoders, Decoders, Converters | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tray |
| Part Status | Active |
| Type | Video Encoder |
| Applications | DVD, Blu-Ray |
| Voltage - Supply, Analog | 3.3V |
| Voltage - Supply, Digital | 1.8V |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| Base Product Number | ADV7341 |
