Product Details
DESCRIPTION
The L200 is a monolithic integrated circuit for voltage and current programmable regulation.
It is available in Pentawatt
package or 4-lead TO-3 metalcase.Current limiting, powerlimiting, thermal shutdown
and input overvoltage protection (up to 60 V) make the L200 virtually blow-out proof.
The L200 can be used to replace fixed voltage regulators when high output voltage precision
is required and eliminates the need to stock a range of fixed voltage regulators.
■ ADJUSTABLE OUTPUT CURRENT UP TO 2 A
(GUARANTEED UP TO Tj = 150 °C)
■ ADJUSTABLE OUTPUT VOLTAGE DOWN TO 2.85 V
■ INPUT OVERVOLTAGE PROTECTION (UP TO 60 V, 10 ms)
■ SHORT CIRCUIT PROTECTION
■ OUTPUT TRANSISTOR S.O.A.PROTECTION
■ THERMAL OVERLOAD PROTECTION
■ LOW BIAS CURRENT ON REGULATION PIN
■ LOW STANDBY CURRENT DRAIN
Product Description
ANSC PART# | ANSC- L200C |
Part# | L200C |
Type： | Electronic components |
Manufactor | Original |
DC | new |

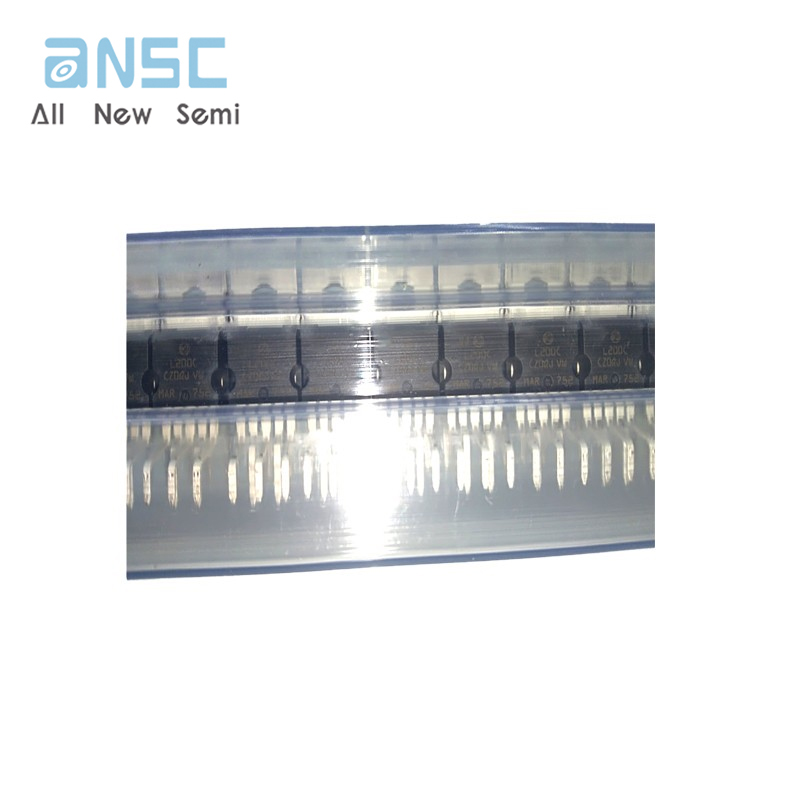

Actual image of the product

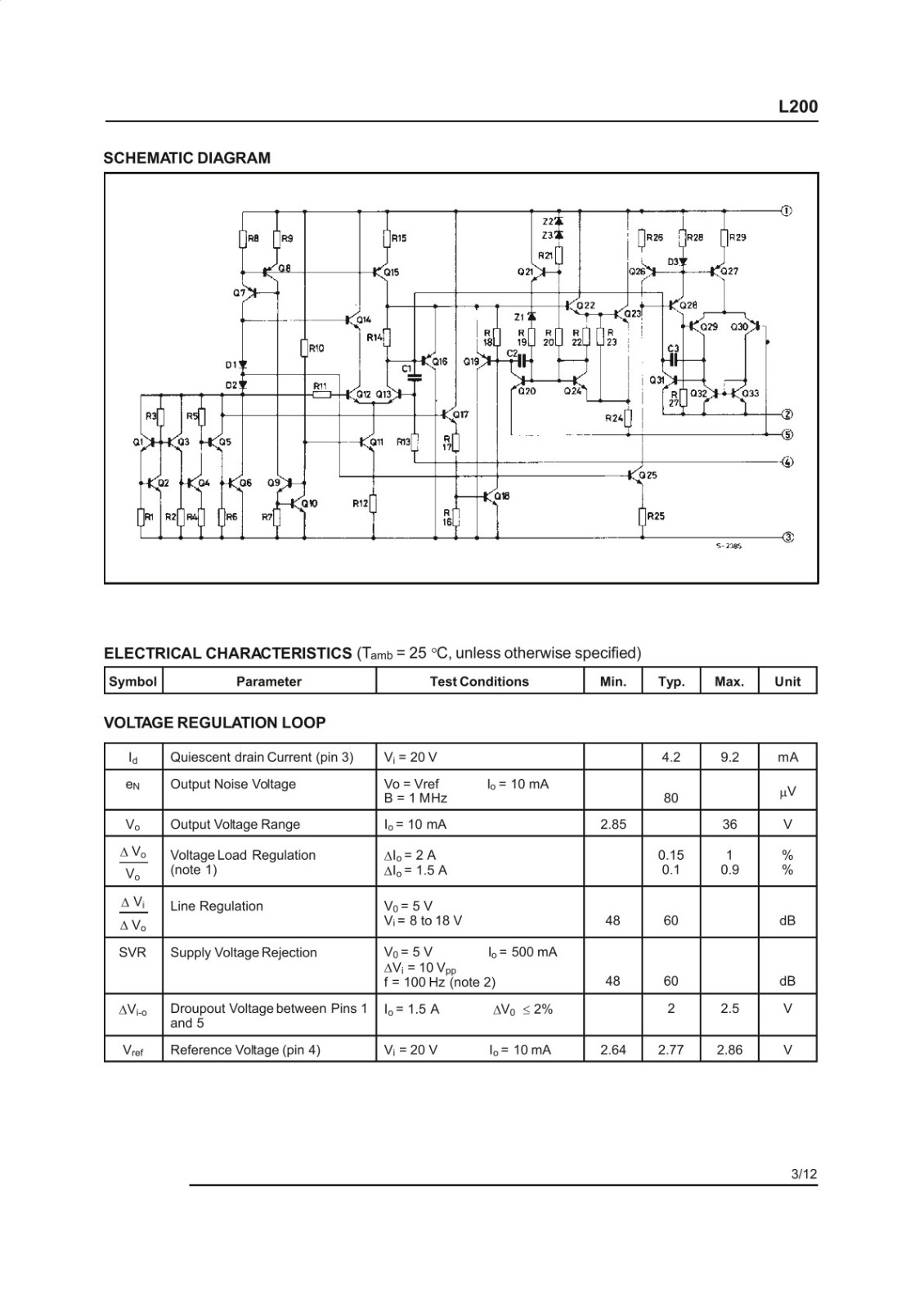

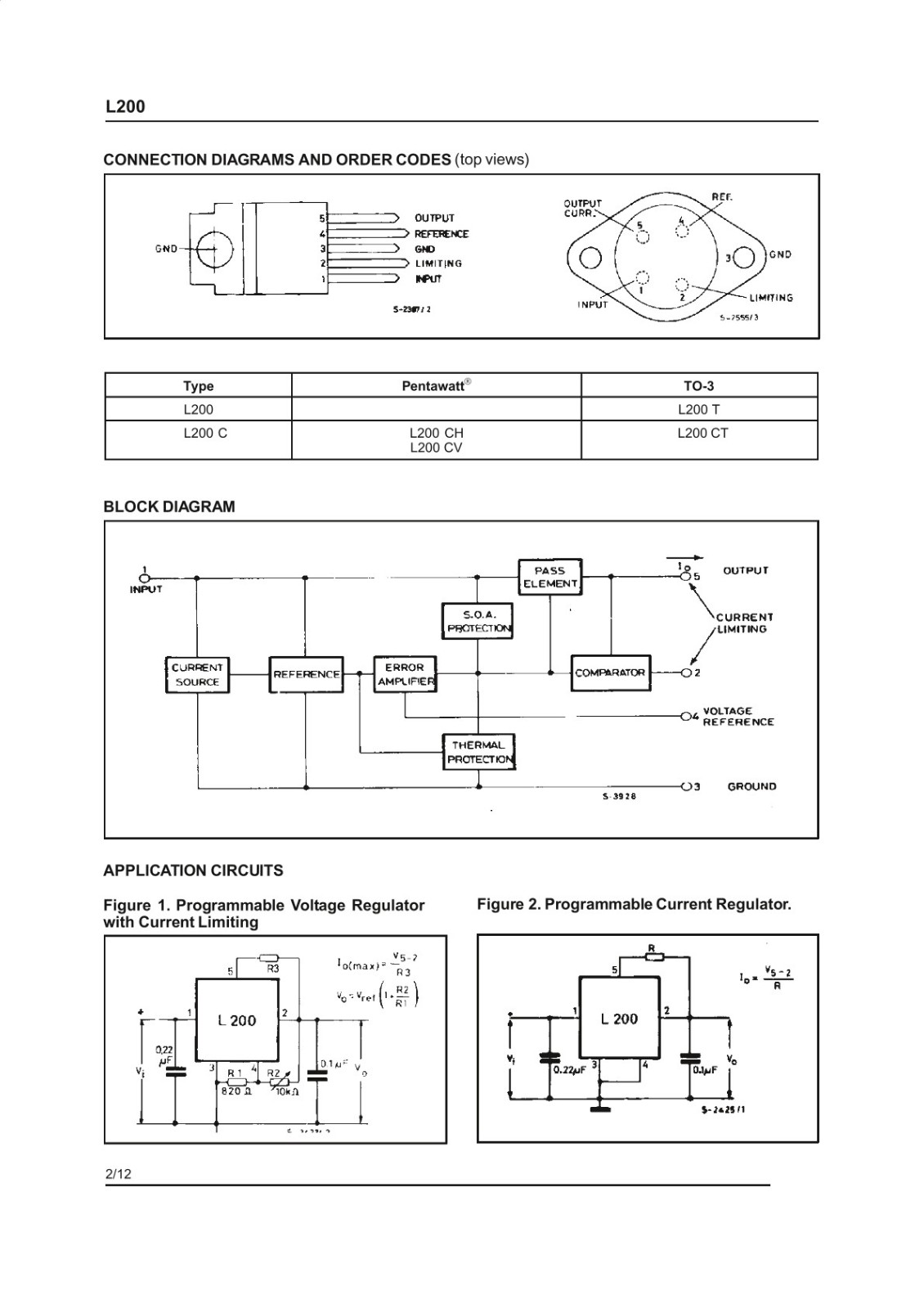

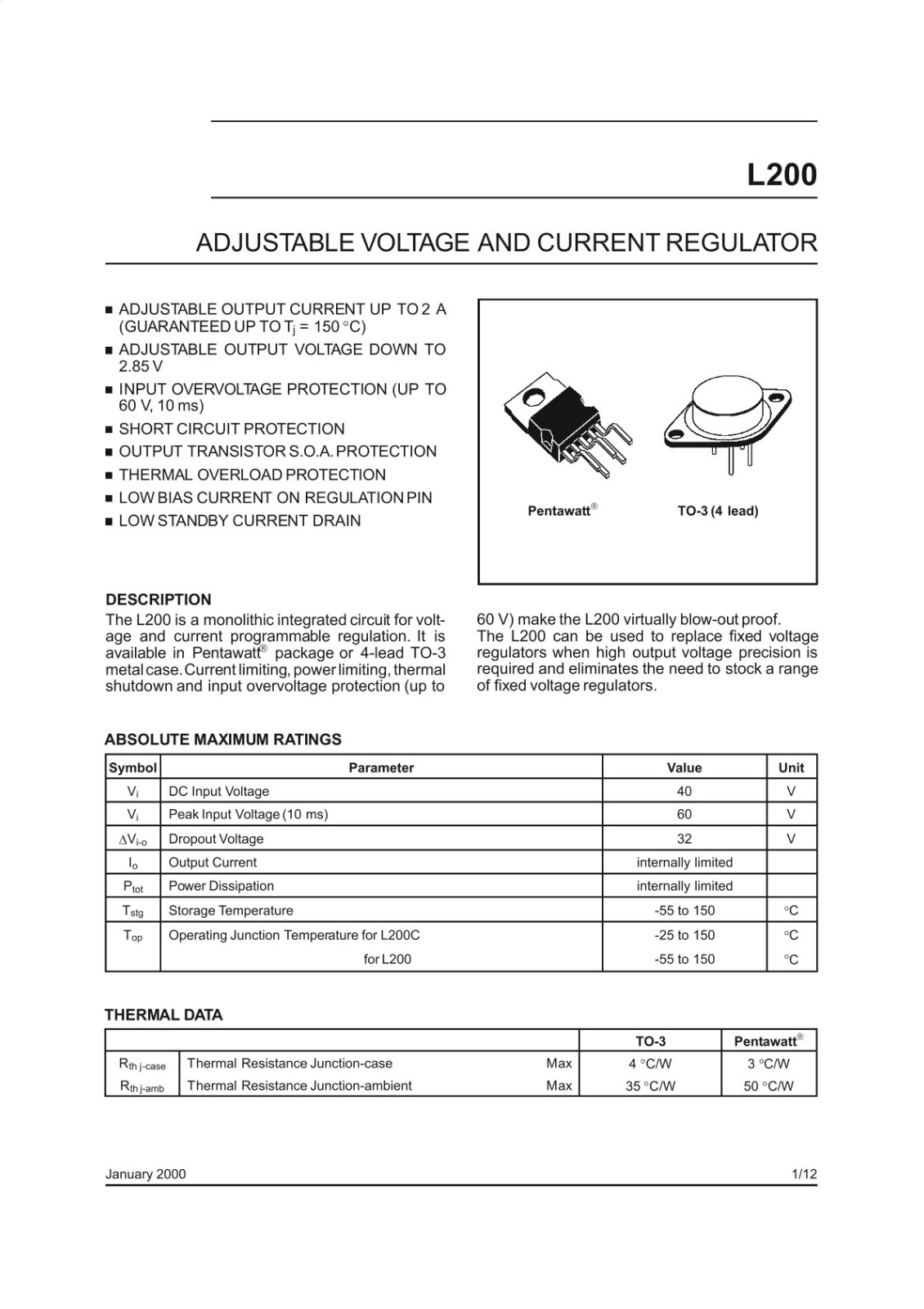

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
