Product Details
| CY22393ZXI-XXX Product details Features • Three integrated phase-locked loops (PLLs) • Ultra wide divide counters (8-bit Q, 11-bit P, and 7-bit post divide) • Improved linear crystal load capacitors • Flash programmability with external programmer • Field-programmable • Low jitter, high accuracy outputs • Power management options (Shutdown, OE, Suspend) • Configurable crystal drive strength • Frequency select via three external LVTTL inputs • 3.3V operation • 16-pin TSSOP package • CyClocksRT™ software support Advanced Features • I2C serial interface for in-system configurability • Configurable output buffer • Digital VCXO • High frequency LVPECL output (CY22394 only) • 3.3/2.5V outputs (CY22395 only) |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- CY22393ZXI-XXX |
| Ihs Manufacturer | Original |
| Part Package Code | TSSOP |
| Package Description | TSSOP, TSSOP16,.25 |
| Pin Count | 16 |
| Length | 5 mm |
| Moisture Sensitivity Level | 3 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Output Clock Frequency-Max | 166 MHz |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Equivalence Code | TSSOP16,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Primary Clock/Crystal Frequency-Nom | 166 MHz |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.1 mm |
| Supply Voltage-Max | 3.465 V |
| Supply Voltage-Min | 3.135 V |
| Supply Voltage-Nom | 3.3 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 20 |
| Width | 4.4 mm |
| uPs/uCs/Peripheral ICs Type | CLOCK GENERATOR, PROCESSOR SPECIFIC |

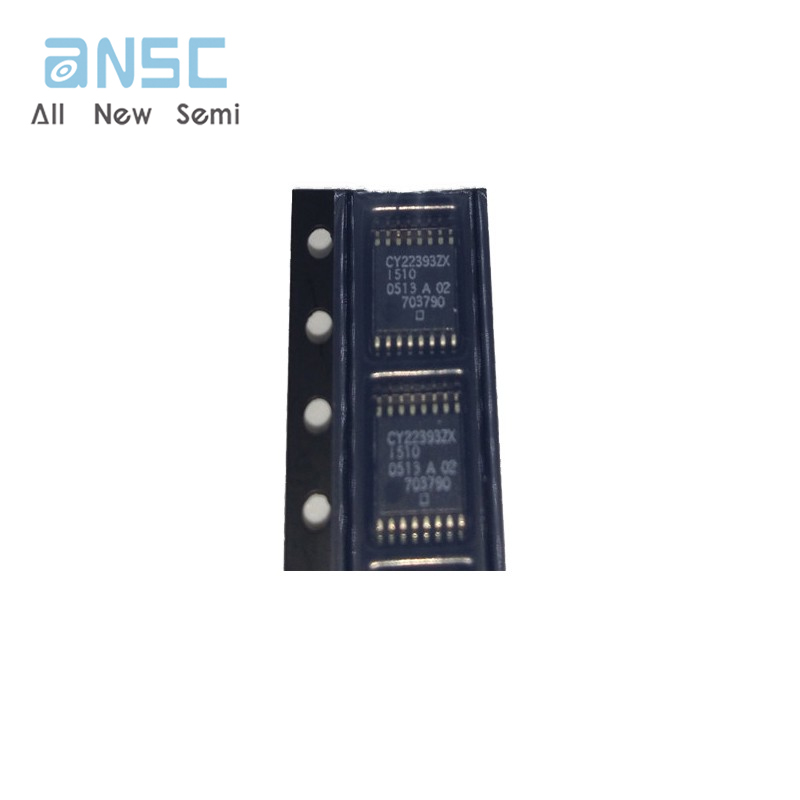

Actual image of the product

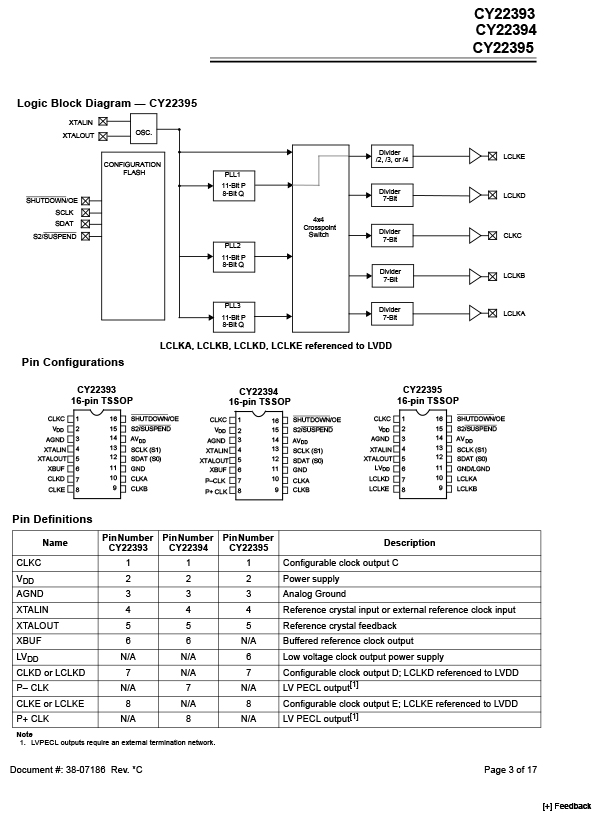

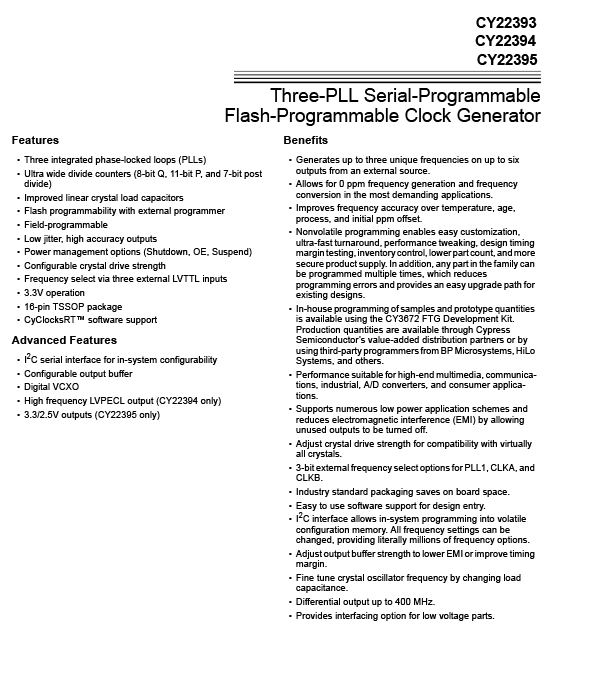

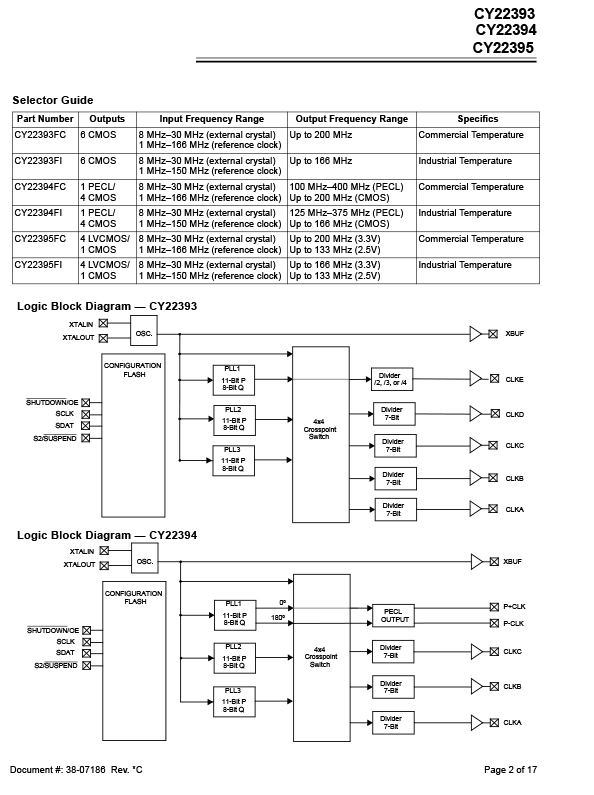

Product datasheet
For more information, please download
