Product Descriptions

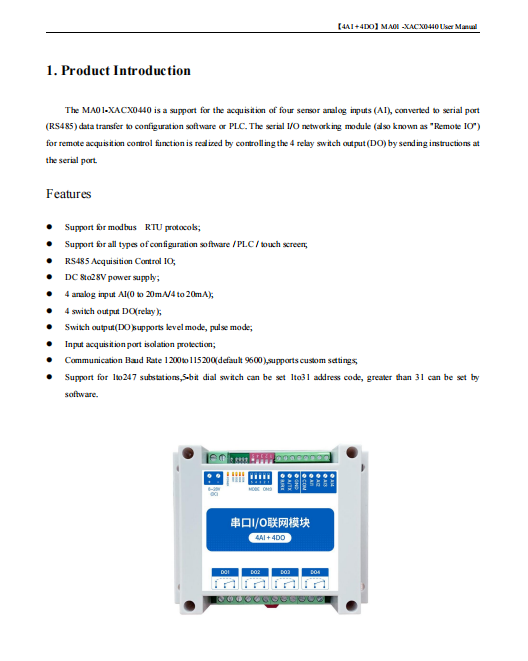

The MA01-XACX0440 is a support for the acquisition of four sensor analog inputs (Al), converted to serial port (RS485) data transfer to configuration software or PLC. The serial 1/0 networking module (also known as "Remote lO")for remote acquisition control function is realized by controlling the 4 relay switch output (DO) by sending instructions at the serial port.

Product Features

Support for modbus RTU protocols,

Support for all types of configuration software /PLC/ touch screen,

RS485 Acquisition Control IO:

DC 8 to28V power supply;

4 analog input Al(0 to 20mA/4 to 20mA):

4 switch output DO(relay);

Switch output(DO)supports level mode, pulse mode;

Input acquisition port isolation protection:

Communication Baud Rate 1200to115200(default 9600),supports custom settings.

Support for 1to247 substations,5-bit dial switch can be set 1to3l address code, greater than 3l can be set by software.

Specifications

Actual product photos

Product Data Book：

For more product information, please download the PDF
