Hot selling original stock sale E831-RTU(4040R-485) Digital 8-way IO controller_Various types Modules

Product Features

Support 4 analog inputs, default current acquisition,

Support Ethernet port, you can use socket to connect to remote server, support TCP/UDP;Support Modbus TCP/RTU protocol;

Support Ebyte Cloud, can be controlled by commands;Support 2 working modes, master mode and slave mode, slave can cascade multiple devices by RS485:

Support Reload touch button, long press for 5s, Modbus device address, RS485 serial port baud rate and check digitwill restore factory settings,

Hardware watchdog with high reliability;

Multiple indicators to show device working status;

The power supply has static and surge level 3 protection, and has over-current, over-voltage, anti-reverse and other

protections.

Note: Support customization of functions, such as conditional control (how to output based on input state)

Attribute	Attribute value
ANSM-Part#	ANSM-E831-RTU(4040R-485)
Size(HWD)	1057530 mm
Weight	279g±5g
Interface method	Crimping method，1125.08mm
Operating Voltage	DC8V~28V, 12V or 24V is recommended, over 28V may damage the device
Operating current	12V@ 56mAstand-by current
Communication Interface	RS485：1200~115200bps
4 digital inputs	Dry contact, DI acquisition frequency 1KHz
4 relay outputs	Support 3A30VDC、3A250VAC
Baud rate	Baud rate range 1200~115200bps，factory default9600
Operating temperature	-20℃~+70℃
storage temperature	-40℃~+85℃
Operating humidity	5%~95%
Storage humidity	1%~95%

E831-RTU(4040R-485)

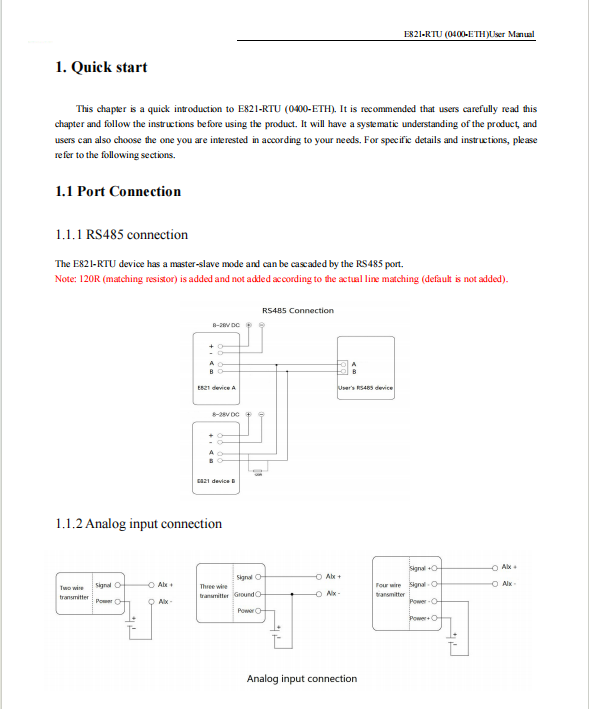

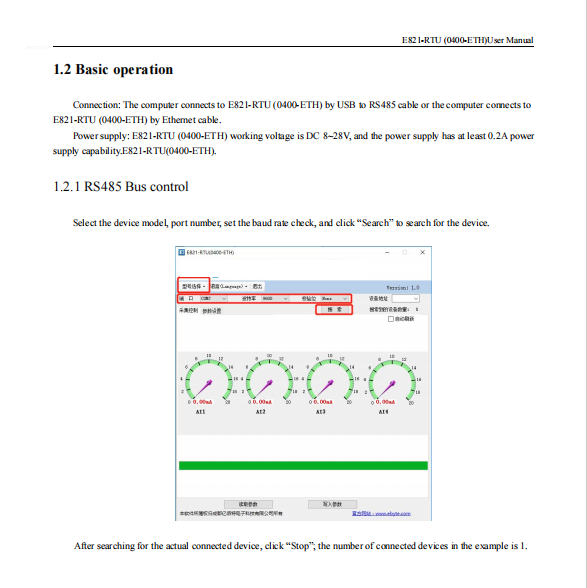

Product Data Book：

搜狗高速浏览器截图20240527110804

搜狗高速浏览器截图20240527110807

搜狗高速浏览器截图20240527110811

For more product information, please download the PDF

详情8.1

详情页3.1

详情5.1

详情6.1

详情9
