Hot selling E810-DTU(CAN-ETH) CAN-BUS to Ethernet CAN-Bus DTU that integrates one CAN interface and one Ethernet interface

E810-DTU(CAN-ETH)

Model:E810-DTU(CAN-ETH)

Manufacturer:EBYTE

Package:module

Detail

Product Descriptions


The E8 10-DTU (CAN-ETH) is a high-performance CAN-Bus DTU that integrates one CAN interface and one Ethernet interface. With the high-performance E810-DTU(CAN-ETH), users can easily interconnect the CAN-bus network and the Ethernet network.


The E810-DTU (CAN-ETH) is a CAN to Ethernet device that supports the TCP/P network protocol. The device supports adaptive network speed (up to 100M full duplex) and provides four working modes: TCP Server, TPC Client, UDP Server, and UDP Client, which can help users to efficiently perform two- way data transparent transmission between TCP/UDP and CAN.. The device supports two-way SOCKET working at the same time, and the WEB page can be used for parameter configuration.



E810-DTU (CAN-ETH) is easy to operate, and the data transmission is flexible, efficient, and highly reliable. It can help users quickly to establish a stable and reliable data transmission environment and easily realize data transmission.


Specifications


AttributeAttribute value
ANSM-Part#ANSM-E810-DTU(CAN-ETH)
InterfaceEthernet:RJ45, 10/100Mbps
CAN:1*5*3.81, Screwing
Network protocolIP、 TCP/UDP、 ARP、 ICMP、 IPV4
Simple transparent transmissionTCP Server、TCP Client、UDP Server、UDP Client、Cloud transparent transmission
Data Packing MechanismByte packing and time packing
TCP Server connectionSupporting up to 6 TCP connections
IP accessStatic IP、 DHCP
DNSSupport
CAN Transmit baud rateA total of 15 baud rates from 6Kbps-1000Kbps
CAN filtering modeUp to 8 filtration modes
CAN data layoutProtocol format
Parameter configurationWeb page configuration
Working current82mA@12V
Voltage8V~28VDC,Over 28V may burn the product, It’s recommend to use 12V or 24V
Working temperature-40 ~ +85℃, Industrial grade
Working humidity10% ~ 90%, relative humidity, no condensation
Product size66*66*21(mm)
Average weight-
PCB2 laminate
Storage temperature-40℃ ~ +125℃


Actual product photos


E810-DTU(CAN-ETH)


Product Data Book:

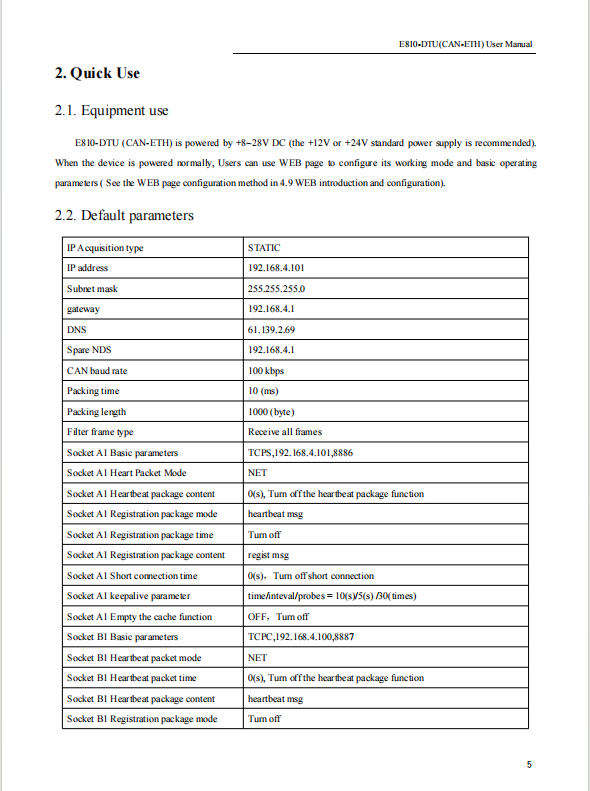

搜狗高速浏览器截图20240527125728

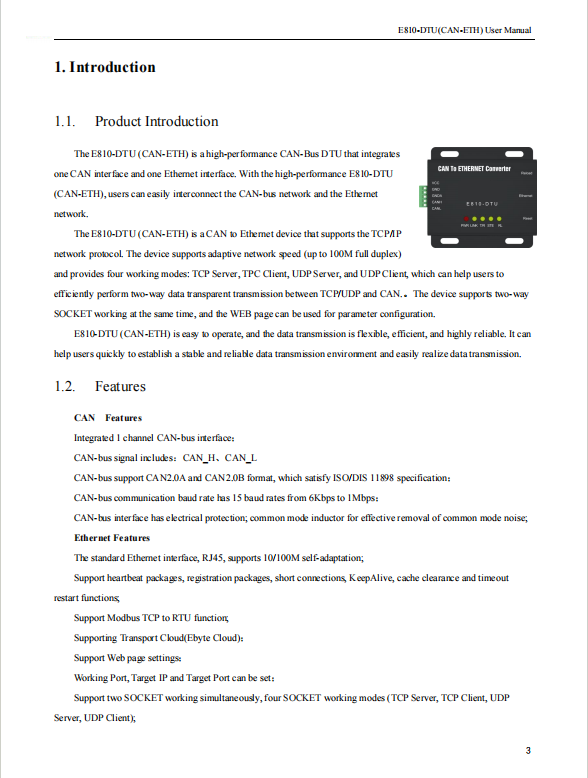

搜狗高速浏览器截图20240527125731

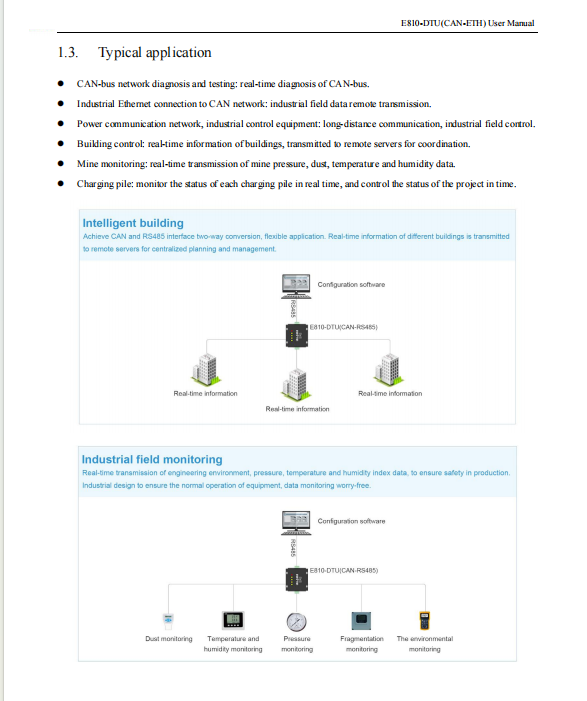

搜狗高速浏览器截图20240527125735


For more product information, please download the PDF
