Product Details
LMC6482IMX Overview
In the package, you will find a 8-SOIC (0.154, 3.90mm Width)-case to contain the op amp ic. The instrumentation amplifier in this picture is of the General Purpose-type. A Tape & Reel (TR) case is used for delivering the op amp. During the past two weeks, there have been close to 8 terminations. A total of 8 pins are located on this board. This linear amplifier should be powered by an 5V battery. The op amp ic has an array of 8 pins on it. Op amp rates 3mV as input offset voltage. For this electrical component, Surface Mount is the recommended mounting type. According to the manufacturer, this buffer op amp works well at -40°C~85°C , which is a good operating temperature. Using an 1.3mA supply current, this operational amplifier ics can be operated. You should keep the voltage gain at 116.47dB for the time being. Buffer amplifier produces Rail-to-Rail signals, which is one of its many benefits. 2 elements make up the design of this buffer amplifier. The linear amplifier is packaged by using a TR axis.
LMC6482IMX Features
8 Pins
supply voltage of 5V
116.47dB voltage gain
Output Type: Rail-to-Rail
LMC6482IMX Applications
There are a lot of Texas Instruments
LMC6482IMX Instrumentational OP Amps applications.
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video computer boards
Product Description
ANSC PART# | ANSC- LMC6482IMX |
Part# | LMC6482IMX |
Type： | Integrated Circuits |
Manufactor | TI/NSC |
DC | new |

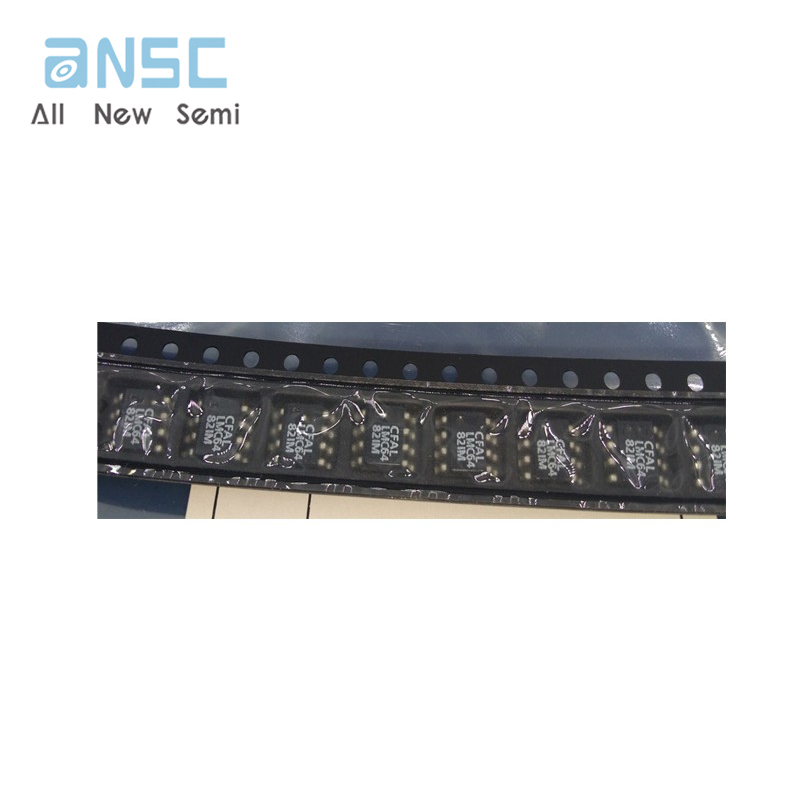

Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Linear Amplifiers Instrumentation, OP Amps, Buffer Amps |
Mfr | Texas Instruments |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Obsolete |
Amplifier Type | CMOS |
Number of Circuits | 2 |
Output Type | Rail-to-Rail |
Slew Rate | 1.3V/µs |
Gain Bandwidth Product | 1.5 MHz |
Current - Input Bias | 0.02 pA |
Voltage - Input Offset | 110 µV |
Current - Supply | 1.3mA (x2 Channels) |
Current - Output / Channel | 30 mA |
Voltage - Supply Span (Min) | 3 V |
Voltage - Supply Span (Max) | 15.5 V |
Operating Temperature | -40°C ~ 85°C |
Mounting Type | Surface Mount |
Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Supplier Device Package | 8-SOIC |
Base Product Number | LMC6482 |

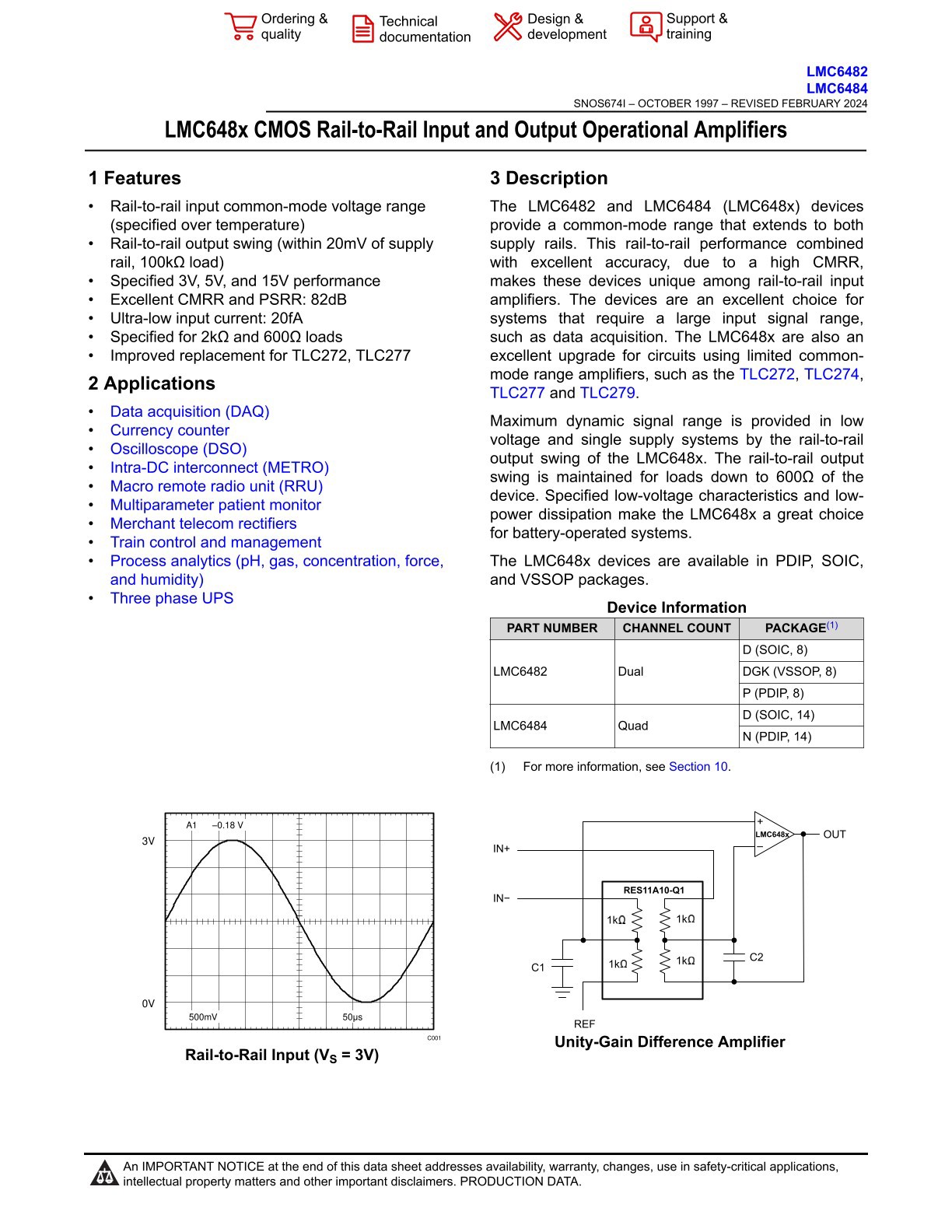

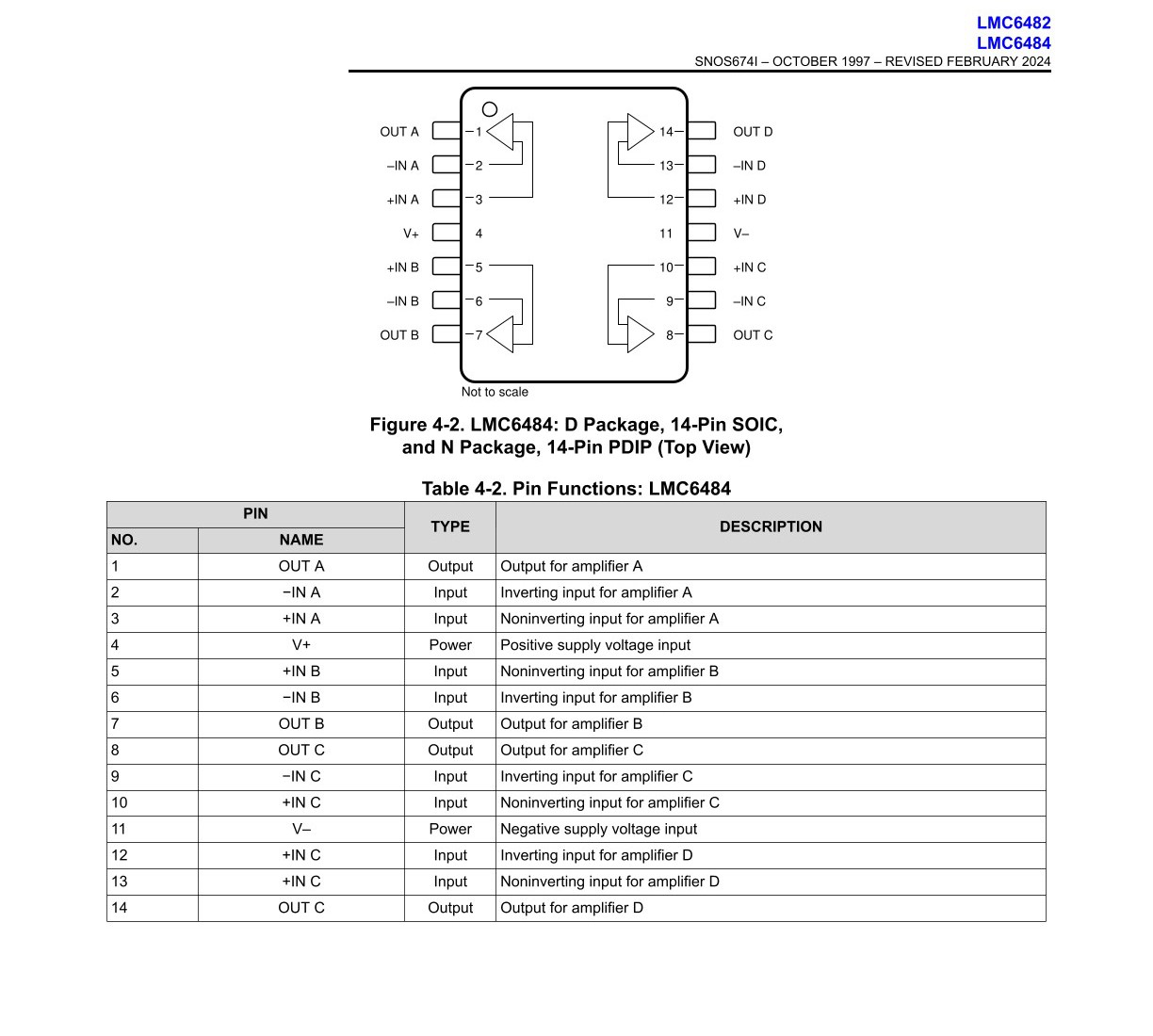

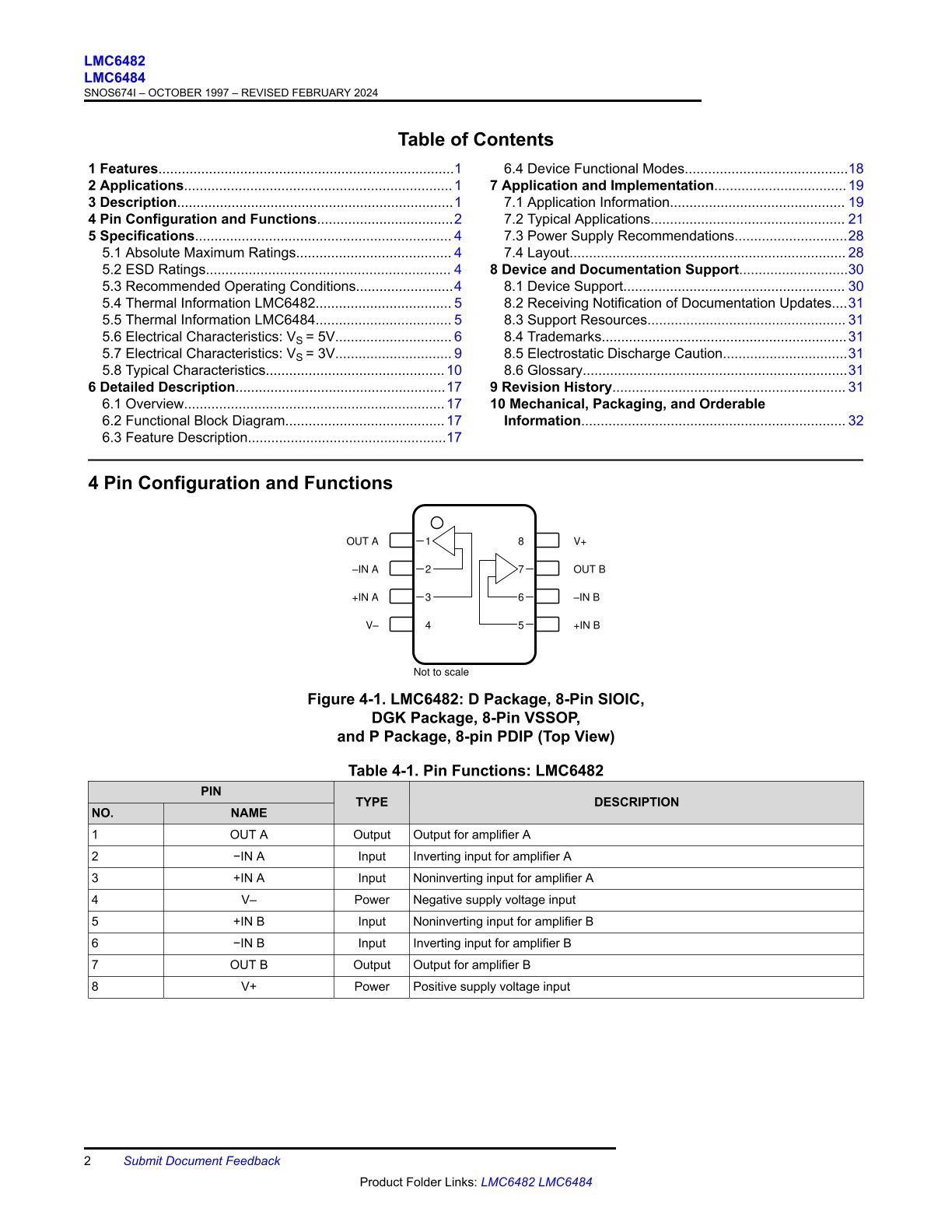

Product datasheet
For more information, please download
​
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
