Product Details
| General Description The MAX6700/MAX6710 precision triple/quad voltage microprocessor (µP) supervisory circuits monitor up to four system-supply voltages and assert a single reset if any supply voltage drops below its preset threshold. These devices significantly reduce system size and component count while improving reliability compared to separate ICs or discrete components. Features ♦ Monitor Up to Four Power-Supply Voltages ♦ Precision Factory-Set Reset Threshold Options for 5.0V, 3.3V, 3.0V, 2.5V, and 1.8V Supplies ♦ Adjustable Voltage Threshold Monitors Down to 0.62V with 1.5 Accuracy ♦ Low 35µA Supply Current ♦ Open-Drain RESET Output with 10µA Internal Pullup ♦ 5µs Propagation Delay (MAX6700) ♦ 140ms (min) Reset Timeout Period (MAX6710) ♦ RESET Valid to IN1 = 1V or IN2 = 1V ♦ Immune to Short Monitored Supply Transients ♦ Guaranteed from -40°C to +85°C ♦ Small 6-Pin SOT23 Package Applications Telecommunications High-End Printers Desktop and Notebook Computers Data Storage Equipment Networking Equipment Industrial Equipment Set-Top Boxes Servers/Workstations |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - MAX6710JUT |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Supervisors | |
| Manufacturer | Original |
| Series | - |
| Packaging | Bulk |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Type | Multi-Voltage Supervisor |
| Number of Voltages Monitored | 4 |
| Voltage - Threshold | 2.32V, 3.08V, Adj, Adj |
| Output | Open Drain or Open Collector |
| Reset | Active Low |
| Reset Timeout | 140ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | MAX6710 |

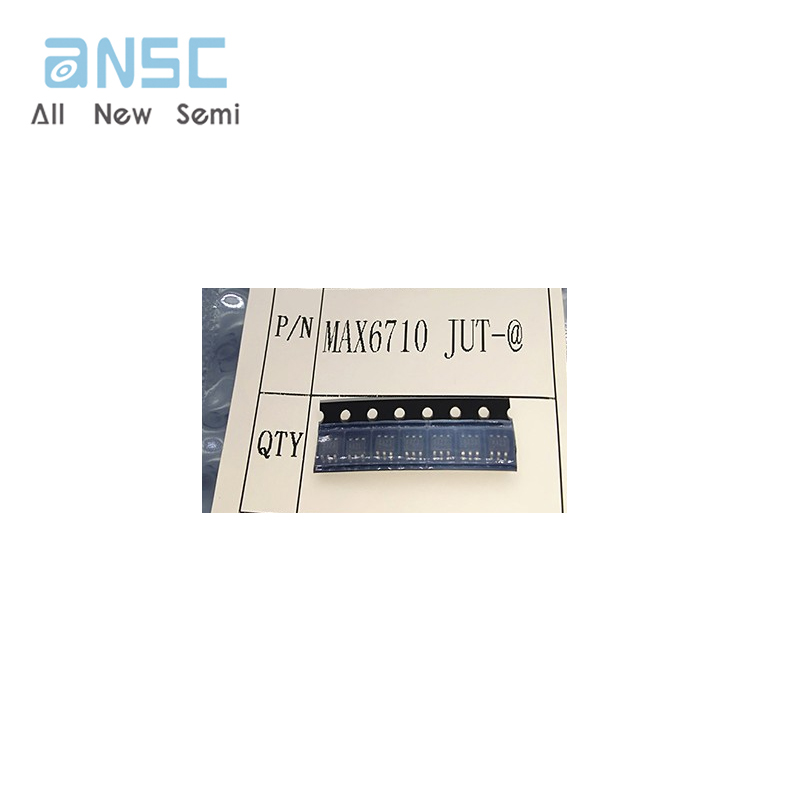

Actual image of the product

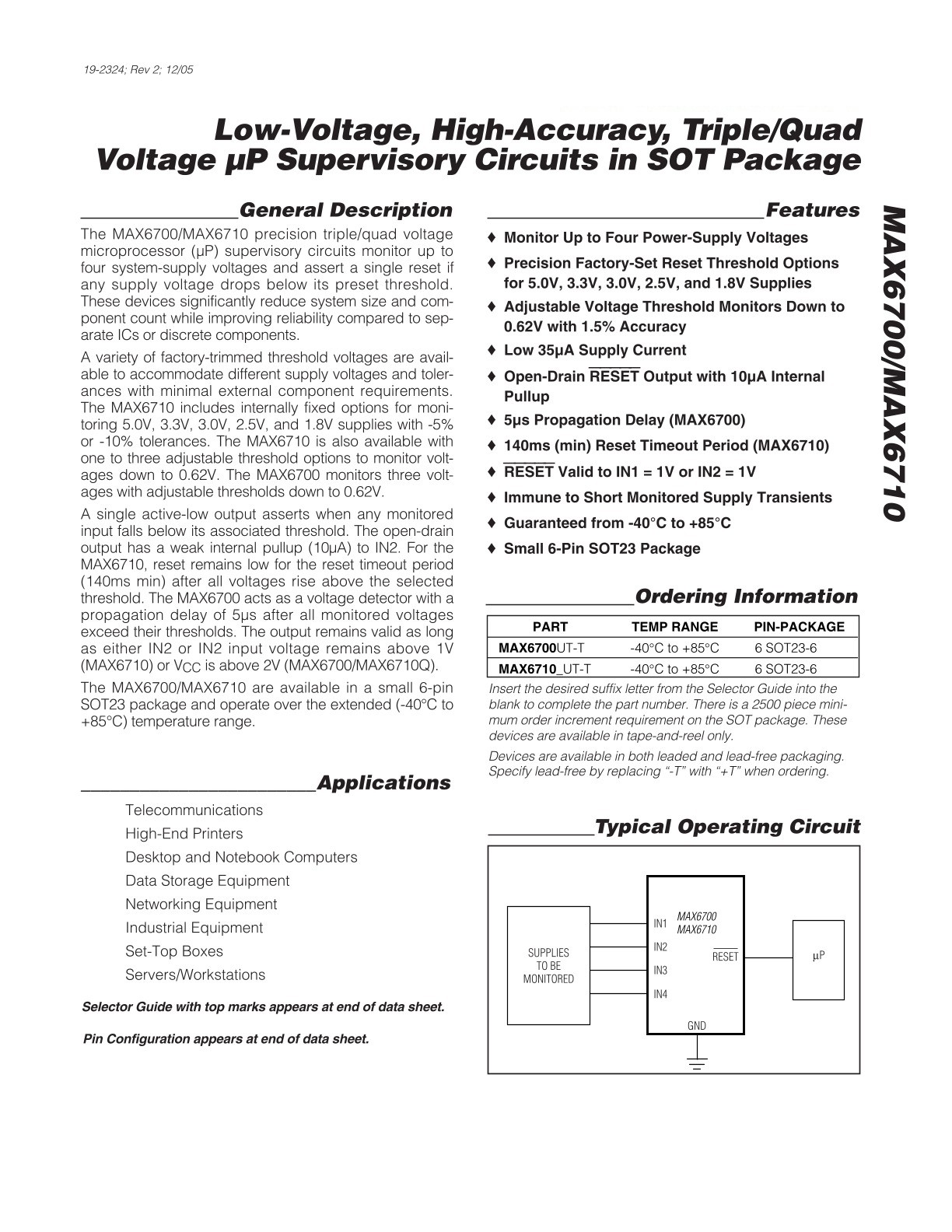

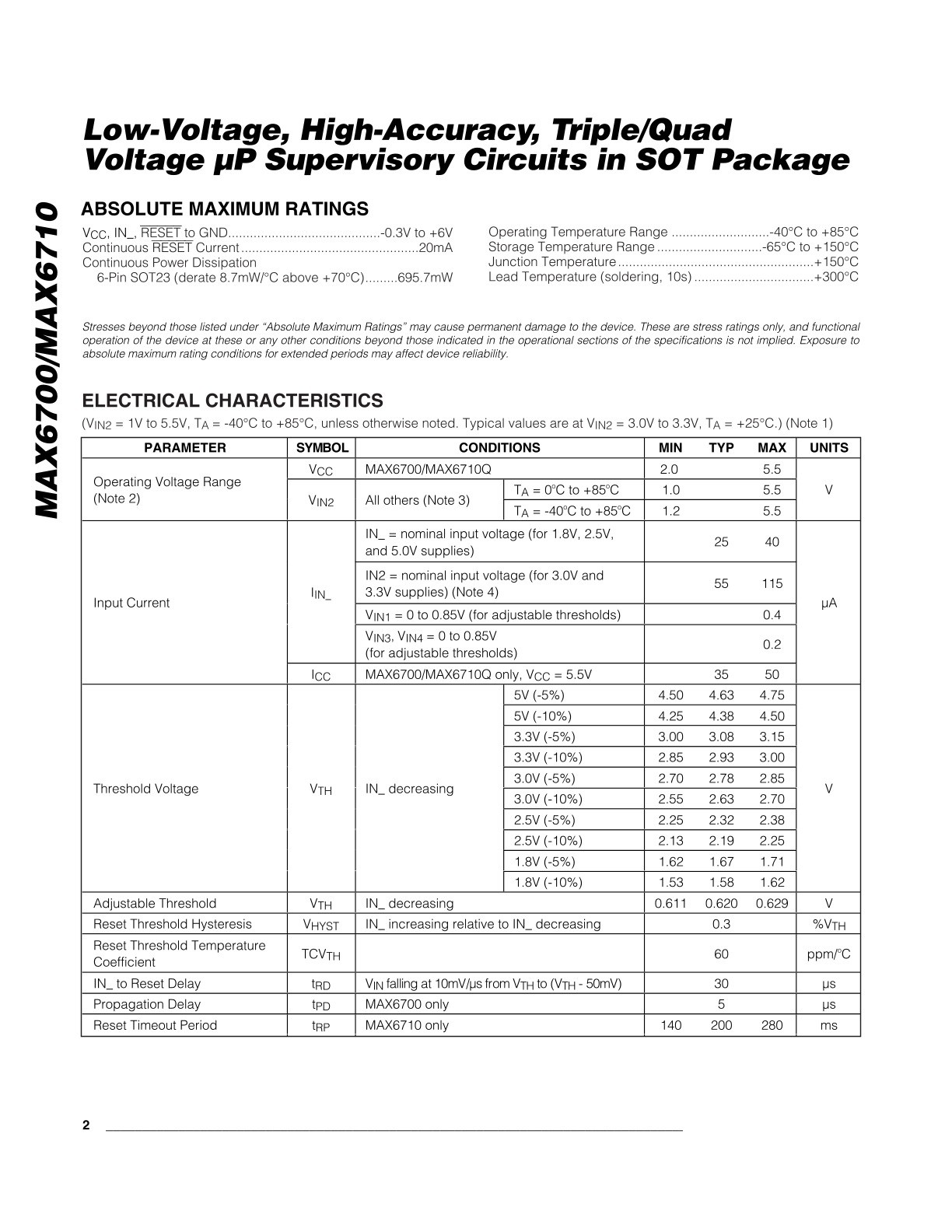

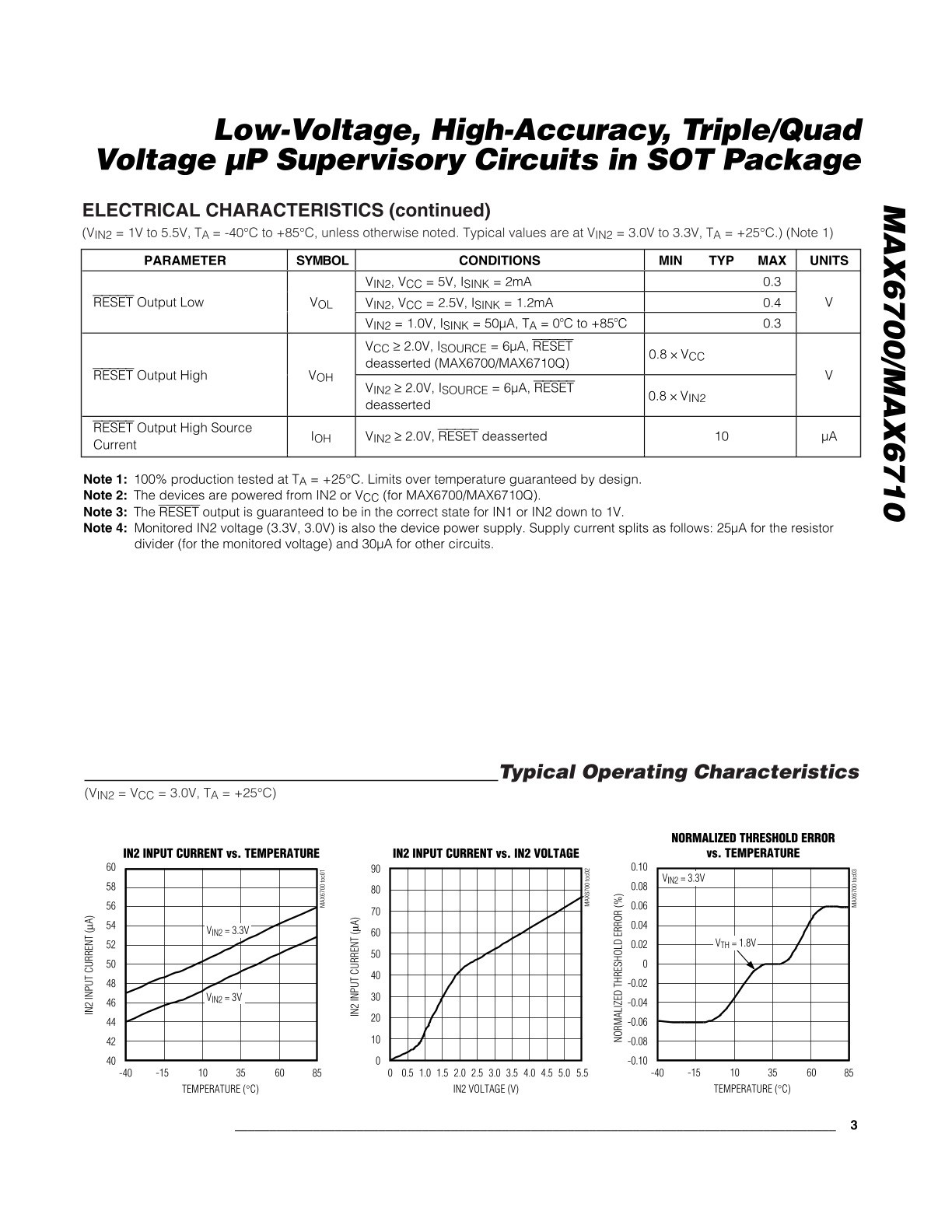

Product datasheet
For more information, please download
