Product Details
| DESCRIPTION The LD1117A is a LOW DROP Voltage Regulator able to provide up to 1A of Output Current, available even in adjustable version (Vref=1.25V). Concerning fixed versions, are offered the following Output Voltages: 1.2V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V. The 2.85V type is ideal for SCSI-2 lines active termination. The device is supplied in: SOT-223, DPAK and TO-220. The surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor. Only a very common 10µF minimum capacitor is needed for stability. Only chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 2% at 25°C. ■ LOW DROPOUT VOLTAGE (1.15V TYP. @ IOUT = 1A, 25°C) ■ VERY LOW QUIESCENT CURRENT (5 mA TYP. @ 25°C) ■ OUTPUT CURRENT UP TO 1A ■ FIXED OUTPUT VOLTAGE OF: 1.2V, 1.8V, 2.5V, 2.85V, 3.3V, 5.0V ■ ADJUSTABLE VERSION AVAILABILITY (Vrel = 1.25V) ■ INTERNAL CURRENT AND THERMAL LIMIT ■ ONLY 10 µF FOR STABILITY ■ AVAILABLE IN ± 2% (AT 25°C) AND 4% IN FULL TEMPERATURE RANGE ■ HIGH SUPPLY VOLTAGE REJECTION: (80dB TYP. AT 25°C) ■ TEMPERATURE RANGE: 0°C TO 125°C |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- LD1117ADT33TR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Base Product Number | LD1117 |

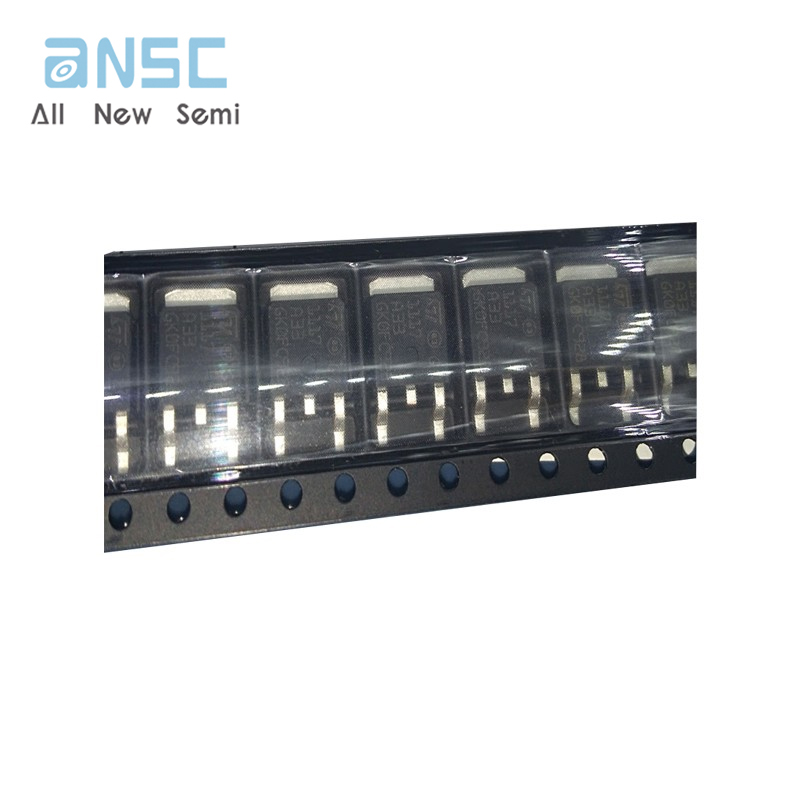

Product Photos

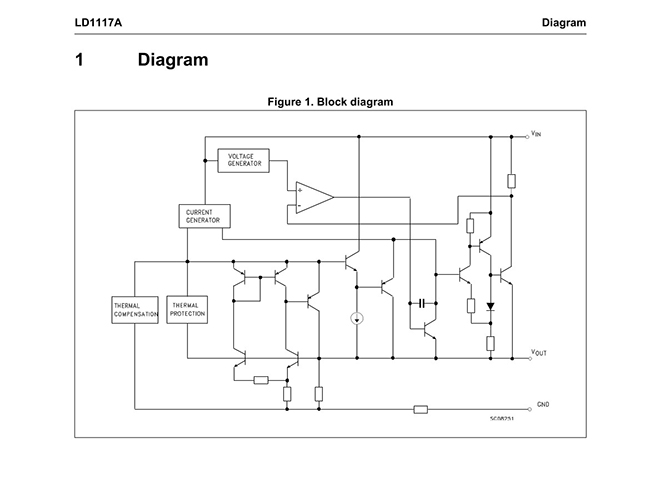

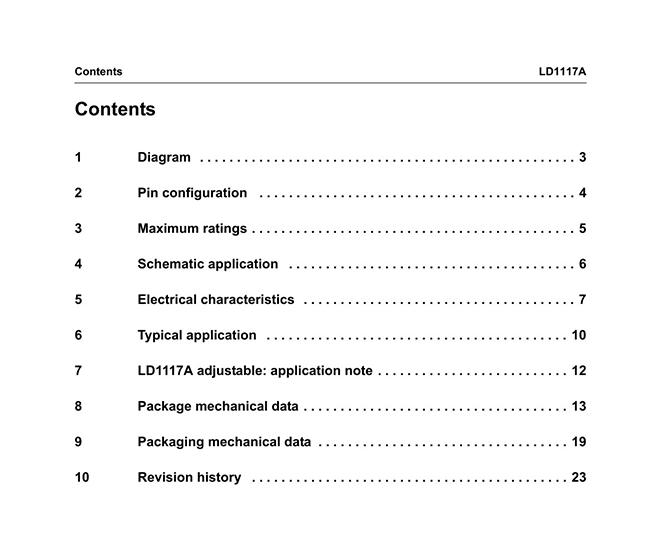

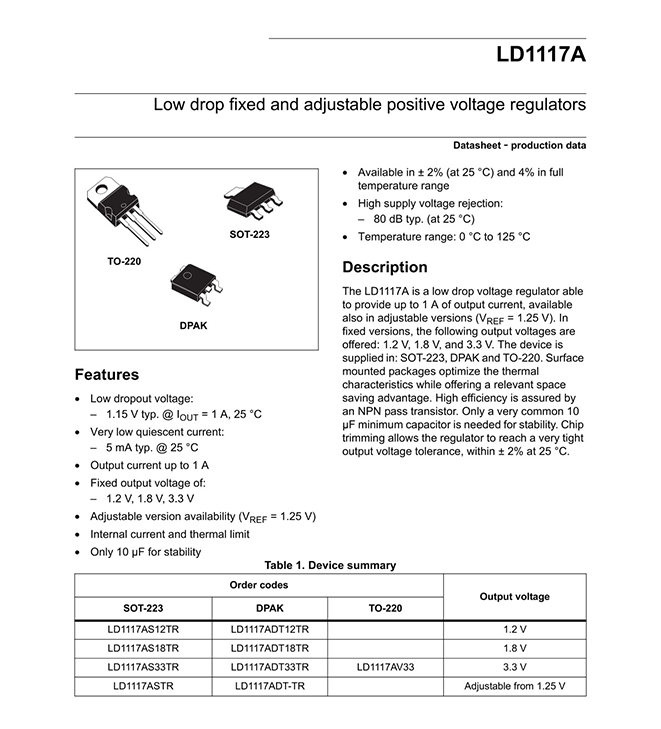

Product datasheet
For more information, please download
