Description The LM4040 is a family of bandgap circuits designed to achieve precision micro-power voltage references of 2.5V, 3.0V, 3.3V, 4.096V, and 5.0V. The devices are available in 0.2% B-grade, 0.5% C-grade, and 1% D-grade initial tolerances. They are available in small outline SOT23 surface mount packages, which are ideal for applications where space is at a premium. Excellent performance is maintained over the 60µA to 15mA operating current range with a typical temperature coefficient of only 20ppm/°C. The device is designed to be highly tolerant of capacitive loads, which maintains excellent stability. This device offers a pin for pin compatible alternative to the LM4040 voltage reference. Features • Small Package: SOT23 ◾ SC70-5 Variants Are End of Life (EOL) • No Output Capacitor Required • Output Voltage Tolerance ◾ LM4040B: ±0.2% at +25°C ◾ LM4040C : ±0.5% at +25°C ◾ LM4040D: ±1% at +25°C • Low Output Noise • (10Hz to 10kHz) 45µVRMS • Wide Operating Current Range 60µA to 15mA • Extended Temperature Range -40°C to +125°C • Low Temperature Coefficient 100 ppm/°C (max) • Green Molding in Small Package SOT23 • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • An Automotive-Compliant Part is Available Under Separate Datasheet (LM4040Q) Applications • Battery Powered Equipment • Precision Power Supplies • Portable Instrumentation • Portable Communications Devices • Notebook and Palmtop Computers • Data Acquisition Systems |
Product Description
| Type | Description |
| ANSC PART# | ANSC- LM4040B41IDBZT |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Reference Type | Shunt |
| Output Type | Fixed |
| Voltage - Output (Min/Fixed) | 4.096V |
| Current - Output | 15 mA |
| Tolerance | ±0.2% |
| Temperature Coefficient | 100ppm/°C |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | 80µVrms |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 88 µA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | LM4040 |

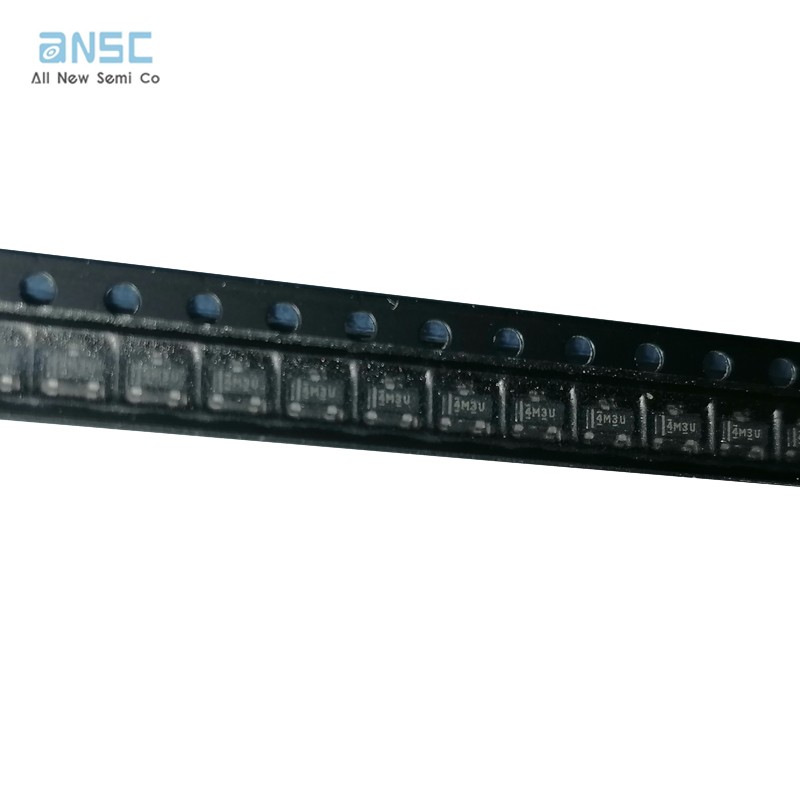

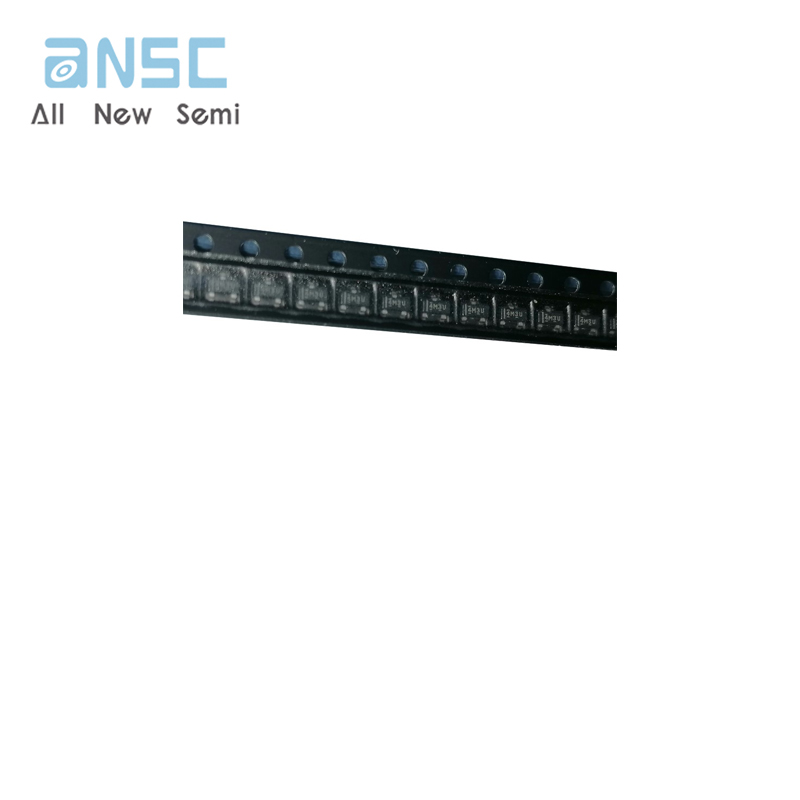

Actual image of the product
