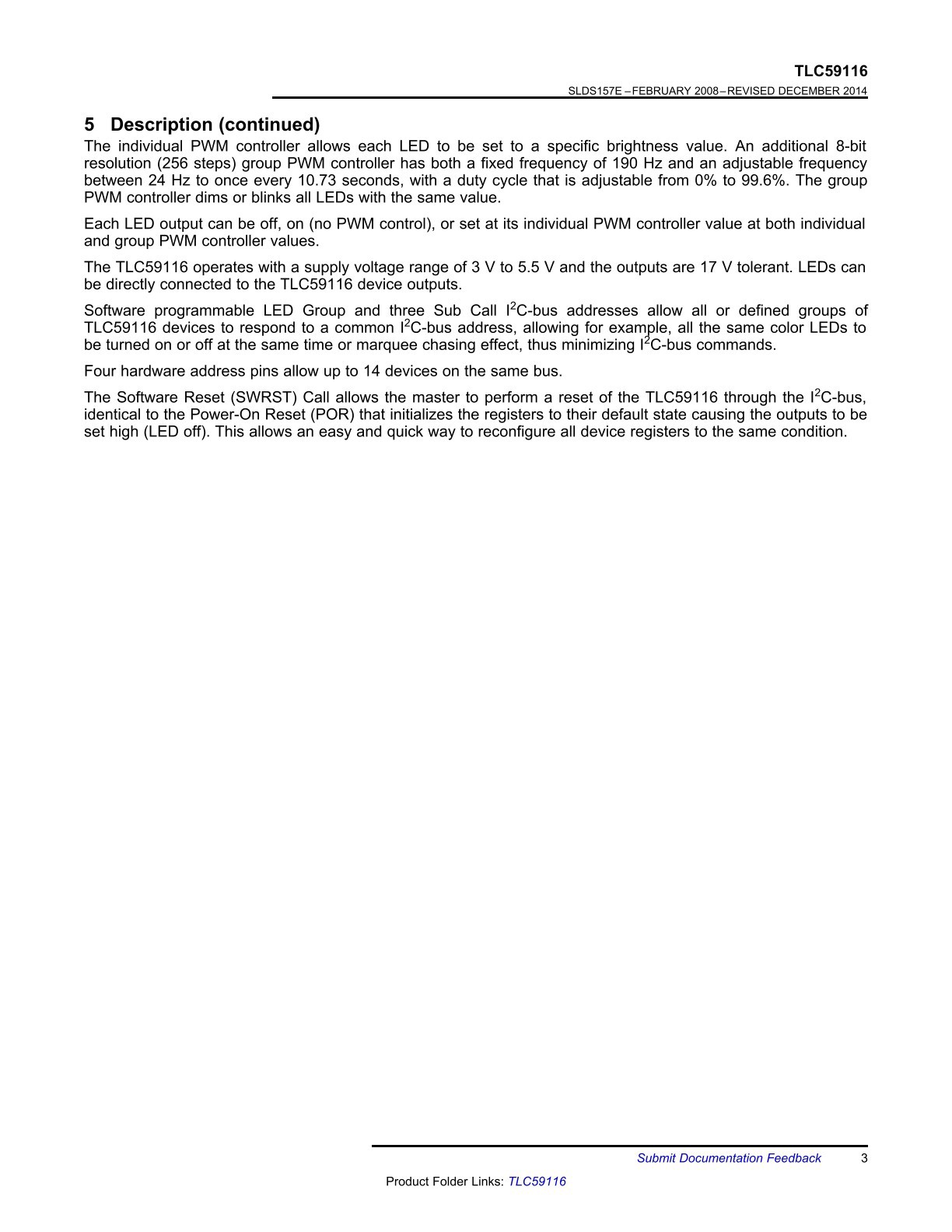

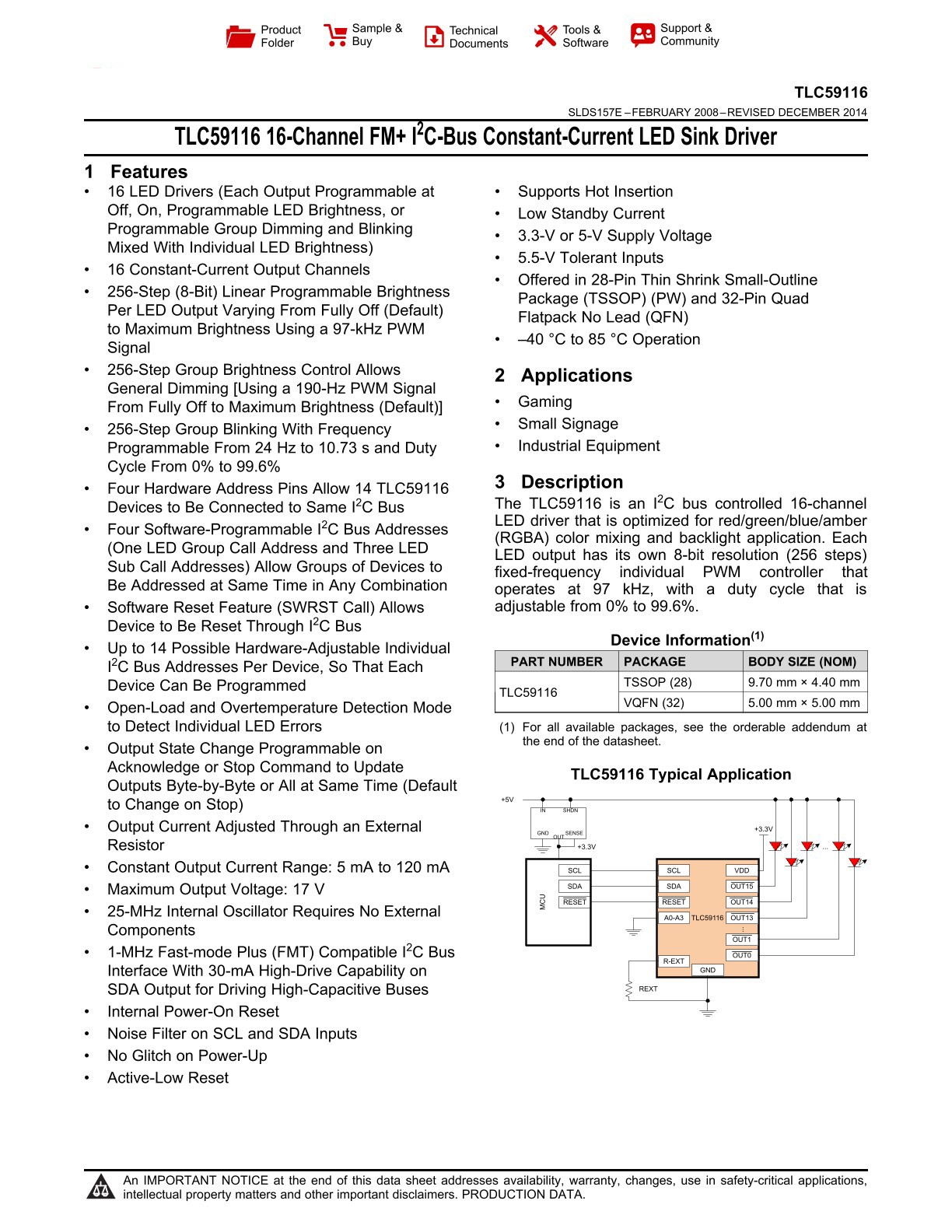

Description The TLC59116 is a 16-channel I2C bus-controlled LED driver intended for red/green/blue/amber (RGBA) color mixing and backlight applications. Each LED output has its own 8-bit resolution (256 step) fixed-frequency individual PWM controller that operates at 97 kHz and has a duty cycle that can be adjusted from 0% to 99.6%. Features ●16 LED Drivers (Each Output Programmable at Off, On, Programmable LED Brightness, or Programmable Group Dimming and Blinking Mixed With Individual LED Brightness) ●16 Constant-Current Output Channels ●256-Step (8-Bit) Linear Programmable Brightness Per LED Output Varying From Fully Off (Default) to Maximum Brightness Using a 97-kHz PWM Signal ●256- Step Group Brightness Control Allows General Dimming [Using a 190-Hz PWM Signal From Fully Off to Maximum Brightness (Default)] ●256- Step Group Blinking With Frequency Programmable From 24 Hz to 10.73 s and Duty Cycle From 0% to 99.6% ●Four Hardware Address Pins Allow 14 TLC59116 Devices to Be Connected to Same 2C Bus ● Four Software-Programmable 2C Bus Addresses (One LED Group Call Address and Three LED Sub Call Addresses) Allow Groups of Devices to Be Addressed at Same Time in Any Combination ●Software Reset Feature (SWRST Call) Allows Device to Be Reset Through IC Bus ●Up to 14 Possible Hardware-Adjustable Individual PC Bus Addresses Per Device, So That Each Device Can Be Programmed ●Open-Load and Overtemperature Detection Mode to Detect Individual L ED Errors ●Output State Change Programmable on Acknowledge or Stop Command to Update Outputs Byte-by-Byte or All at Same Time (Default to Change on Stop) ●Output Current Adjusted Through an External Resistor ●Constant Output Current Range: 5 mA to 120 mA Maximum Output Voltage: 17 V ●25-MHz Internal Oscillator Requires No External Components ●1-MHz Fast-mode Plus (FMT) Compatible I2C Bus Interface With 30-mA High-Drive Capability on SDA Output for Driving High Capacitive Buses Intermal Power-On Reset ●Internal Power-On Reset ●Noise Filter on SCL and SDA Inputs ●No Glitch on Power-Up ●Active-Low Reset ●Supports Hot Insertion ●Low Standby Current ●3.3-V or 5-V Supply Voltage ●5.5-V Tolerant Inputs ●Offered in 28-Pin Thin Shrink Small-Outline Package (TSSOP) (PW) and 32-Pin Quad Flatpack No Lead (QFN) ●-40 °C to 85℃ Operation Applications ●Gaming ●Small Signage ●Industrial Equipment |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - TLC59116IRHBR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| LED Drivers | |
| Manufacturer | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Type | Linear |
| Topology | - |
| Internal Switch(s) | Yes |
| Number of Outputs | 16 |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 17V |
| Current - Output / Channel | 120mA |
| Frequency | - |
| Dimming | I2C |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| Base Product Number | TLC59116 |

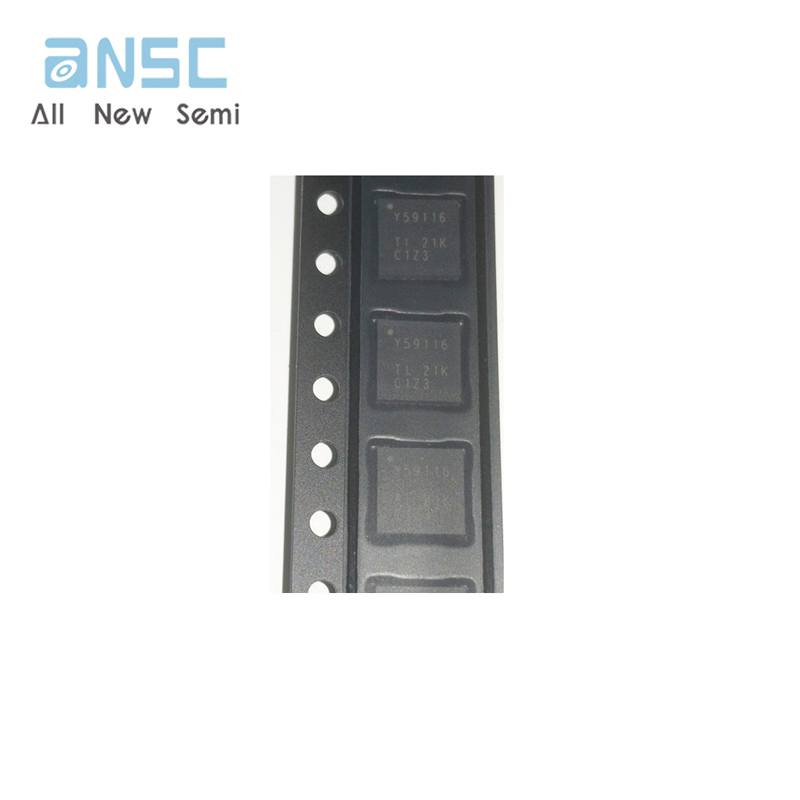

Actual image of the product

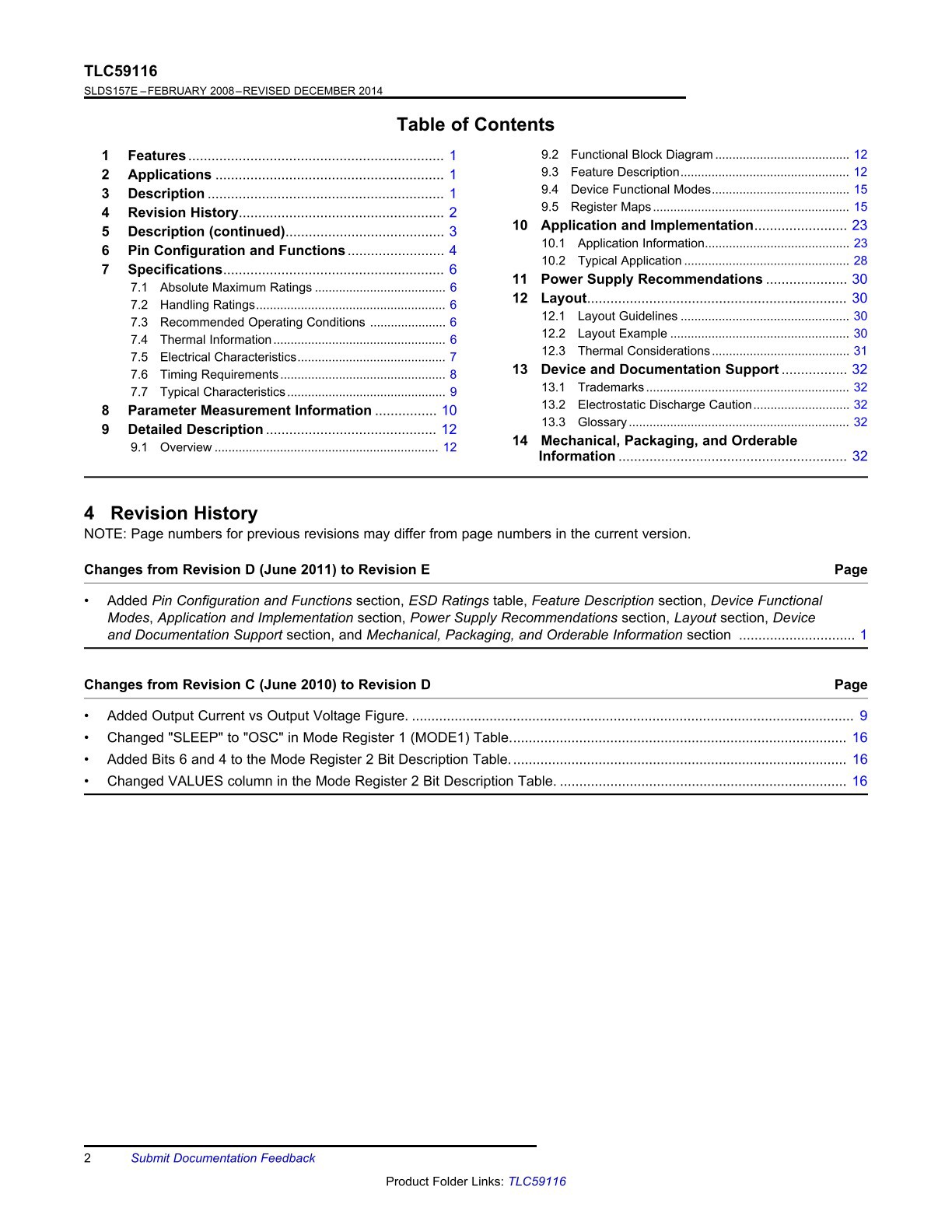

Product datasheet
