Product Details
Features
• Automatic power-down when deselected
• CMOS for optimum speed/power
• High speed
— 15 ns
• Low active power
— 660 mW (commercial)
— 688 mW (military—20 ns)
• Low standby power
— 110 mW (20 ns)
• TTL-compatible inputs and outputs
• Capable of withstanding greater than 2001V electrostatic discharge
• VIH of 2.2V
Product Description
| Type# | Description |
| ANSC PART# | ANSC- CY7C128A-20DMB |
| Ihs Manufacturer | Original |
| Part Package Code | DIP |
| Package Description | 0.300 INCH, CERAMIC, DIP-24 |
| Pin Count | 24 |
| Access Time-Max | 20 ns |
| Additional Feature | AUTOMATIC POWER-DOWN |
| I/O Type | COMMON |
| Length | 31.877 mm |
| Memory Density | 16384 bit |
| Memory IC Type | STANDARD SRAM |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Ports | 1 |
| Number of Terminals | 24 |
| Number of Words | 2048 words |
| Number of Words Code | 2000 |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Organization | 2KX8 |
| Output Characteristics | 3-STATE |
| Output Enable | YES |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP24,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Parallel/Serial | PARALLEL |
| Qualification Status | Not Qualified |
| Screening Level | 38535Q/M;38534H;883B |
| Seated Height-Max | 5.08 mm |
| Standby Current-Max | 0.02 A |
| Standby Voltage-Min | 4.5 V |
| Supply Current-Max | 0.125 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | MILITARY |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

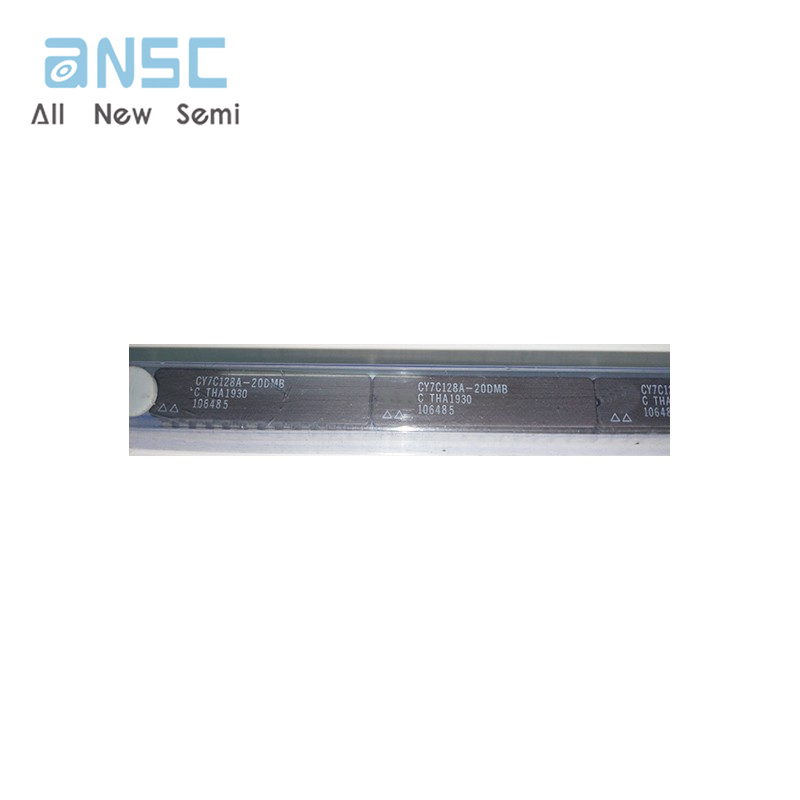

Actual image of the product

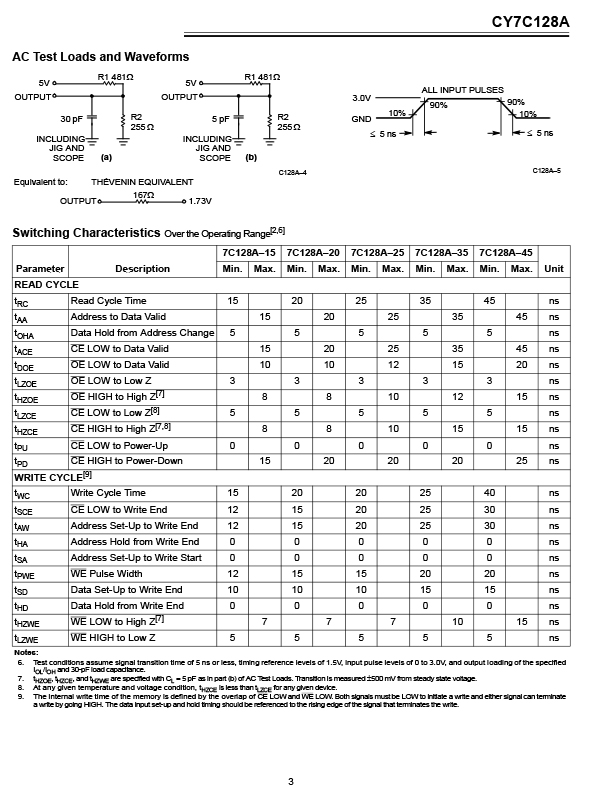

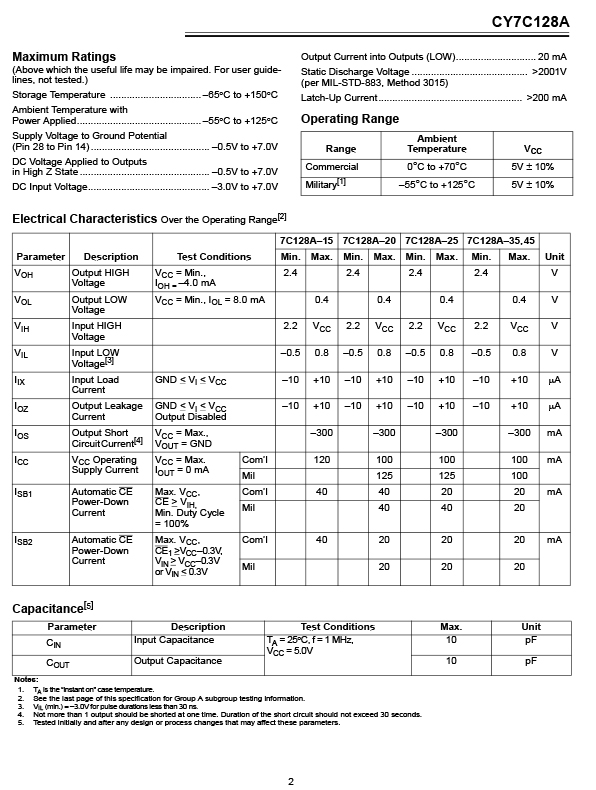

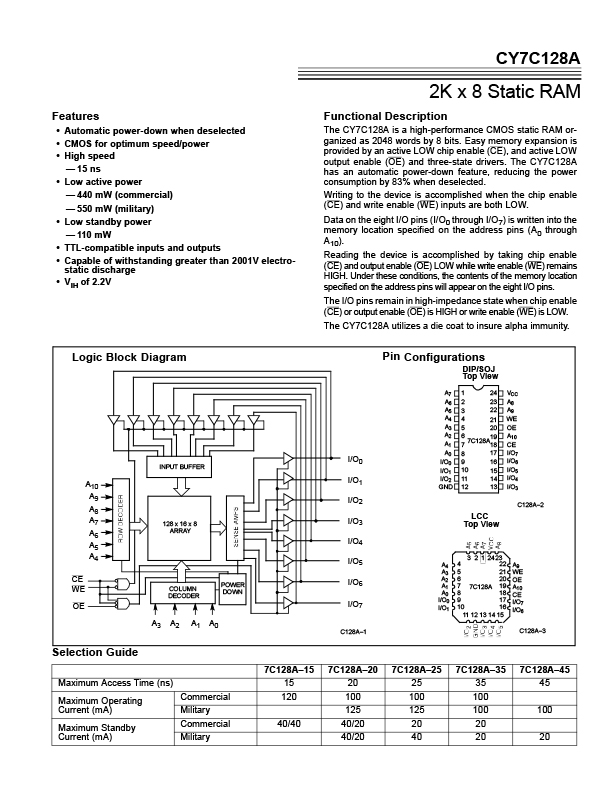

Product datasheet
