Product Description
| Type# | Description |
| PART# | CY7C251-45WMB |
| Part Package Code | DIP |
| Package Description | Dip, Dip28,.3 |
| Pin Count | 28 |
| Access Time-Max | 45 Ns |
| Additional Feature | Power Switched Prom |
| JESD-30 Code | R-GDIP-T28 |
| JESD-609 Code | e0 |
| Length | 37.0205 Mm |
| Memory Density | 131072 Bit |
| Memory IC Type | Uvprom |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| Number of Words | 16384 Words |
| Number of Words Code | 16000 |
| Operating Mode | Asynchronous |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Organization | 16kx8 |
| Output Characteristics | 3-State |
| Package Body Material | Ceramic, Glass-Sealed |
| Package Code | DIP |
| Package Equivalence Code | DIP28,.3 |
| Package Shape | Rectangular |
| Package Style | In-Line |
| Parallel/Serial | Parallel |
| Qualification Status | Not Qualified |
| Screening Level | Mil-Std-883 |
| Seated Height-Max | 5.08 Mm |
| Standby Current-Max | 0.035 A |
| Supply Current-Max | 0.12 Ma |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | No |
| Technology | Cmos |
| Temperature Grade | Military |
| Terminal Finish | Tin Lead |
| Terminal Form | Through-Hole |
| Terminal Pitch | 2.54 Mm |
| Terminal Position | Dual |
| Width | 7.62 Mm |

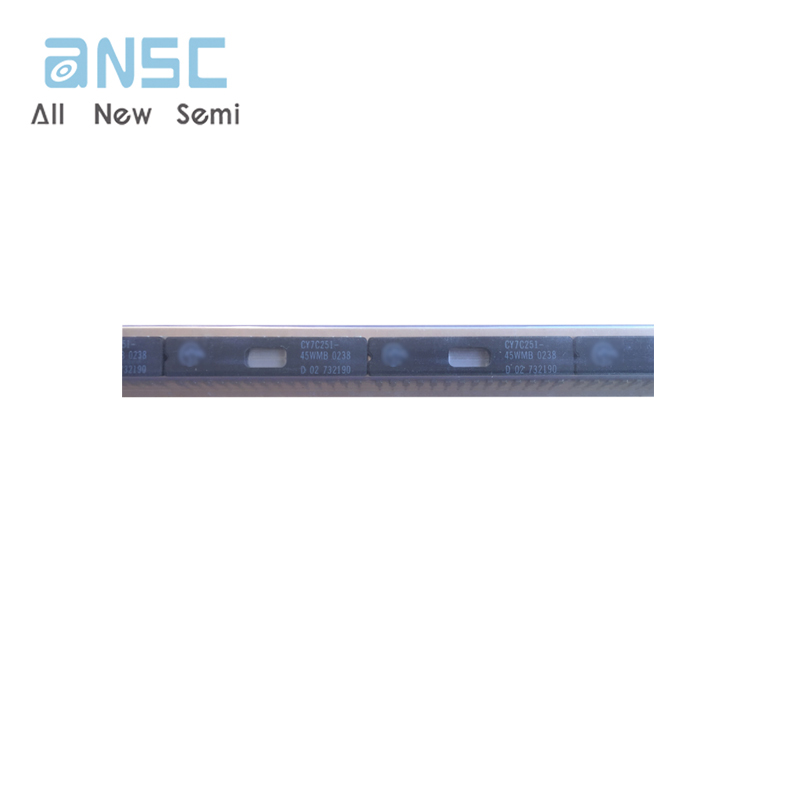

Actual image of the product
